SOCATA TBM 700 - Page 514

T B M
PILOT’S INFORMATION MANUAL 700
SECTION 7
DESCRIPTION
Back to
Contents
Page 7.4.16
Rev. 5

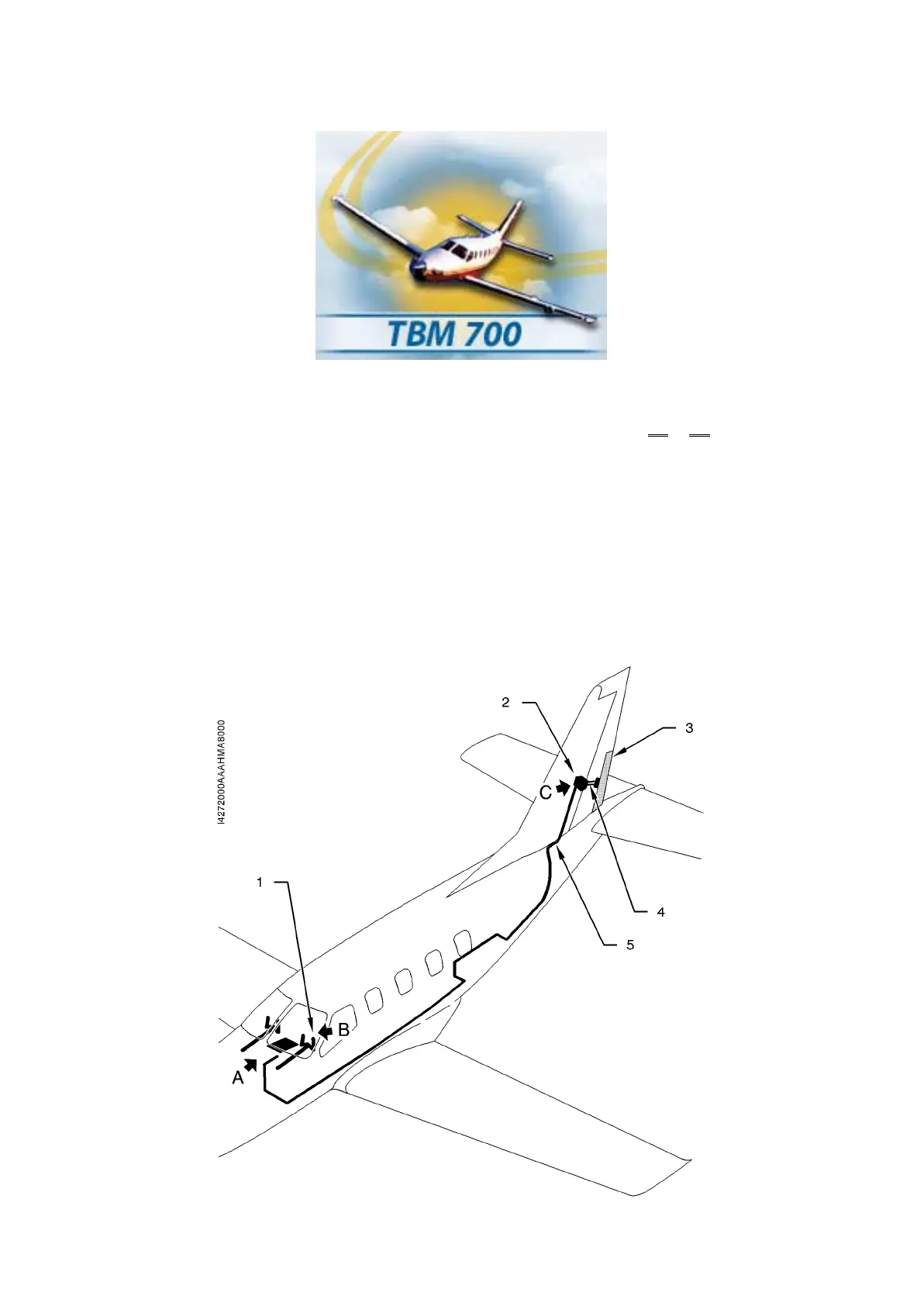

Figure 7.4.6 (1/2) – RUDDER TRIM
1) Trim switch on control wheel
2) Actuator
3) Rudder trim tab
4) Rods
5) Rudder trim control wiring
6) Rudder trim tab position indicator
