Softaire RERV-C100 - HRV and ERV Typical Installations; Horizontal

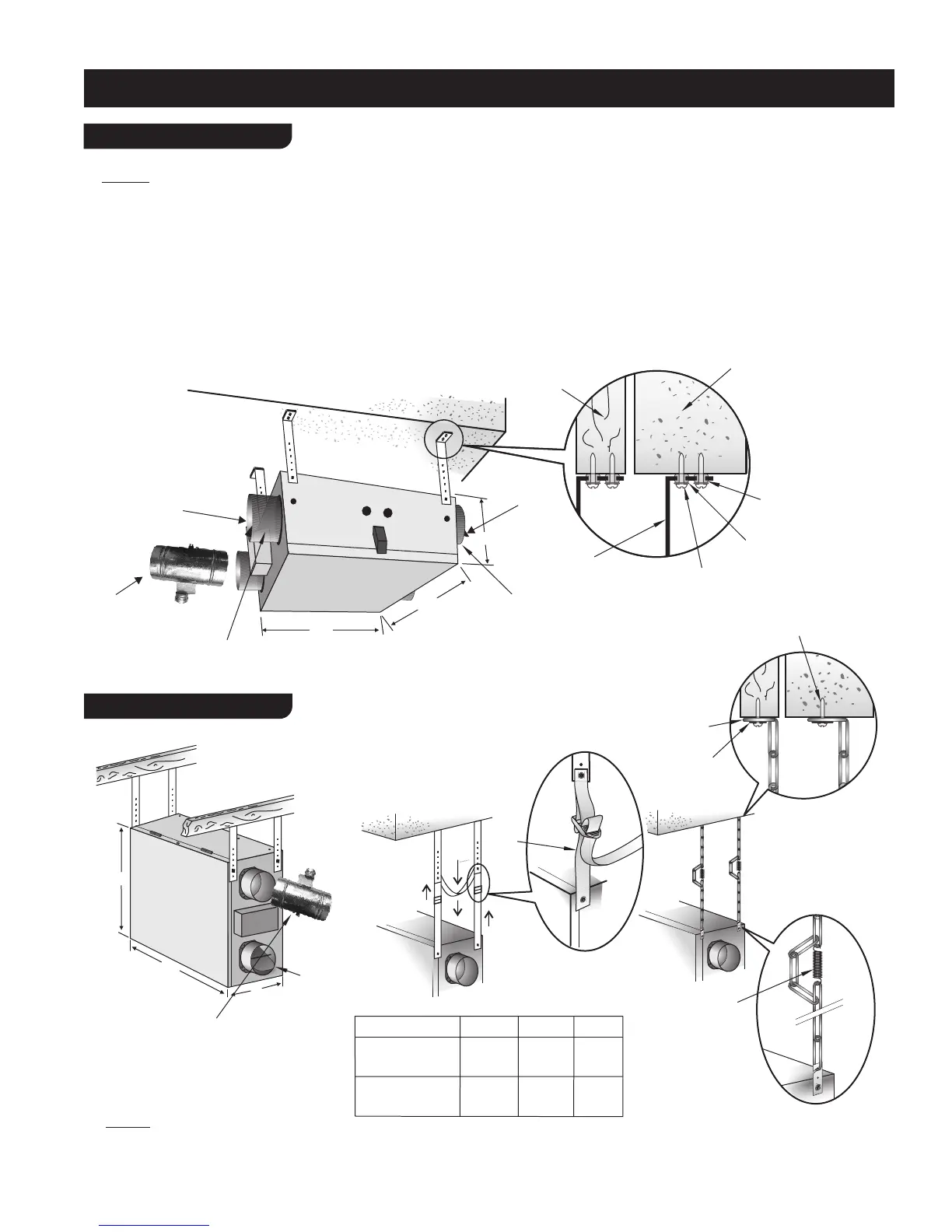

HRV and ERV Typical Installations (cont’d)
7
HORIZONTAL
• 26" Clearance is recommended for cleaning of the core/servicing the unit.
• Dampers are installed for horizontal installation. For vertical installation both dampers have
to be turned so they can open properly and close when there is any backdraft.
• Make sure no screw will interfere the function of the backdraft damper flaps while
installing the duct work to the HRV/ERV.
STRAPPING SYSTEM: (Standard)
Allows one person installation for
vertical and horizontal installation.
VERTICAL
Note:
After installation make sure the HRV/ERV is properly leveled. If not levelled correctly,
then defrost will not perform effectively and/or unit may frost in winter.
Note:
UP
UP
PULL
DOWN
Strap
jtantay 01.28.1
1
* NOT SUPPLIED
jtantay 12.23.11
Vibration
Spring
Washer*
Screw*
CHAIN MOUNTING
SYSTEM: (optional)
Available for both
horizontal & vertical
installation.
Chain*
Backdraft
Damper
Concrete
Concrete
Wooden Joist
Bracket*
(Optional)
Grommet*
Washer*
Backdraft Damper
Screw*
Flap
Flap
Backdraft Damper
A
B
C
A
C
B
120V Motorized Spring
Return Backdraft Damper
Model #
A
RHRV-C100A,
RHRV-C100P,
RERV-C100
20’’
RERV-80
RHRV-80P
16 1/2’’
B
C
21’’
9’’
8 1/4’’16 1/2’’
Rev(1.0), 07/02/15
*
120V Motorized Spring
Return Backdraft Damper*
