Installation
5
Installing the RM Mount Plate

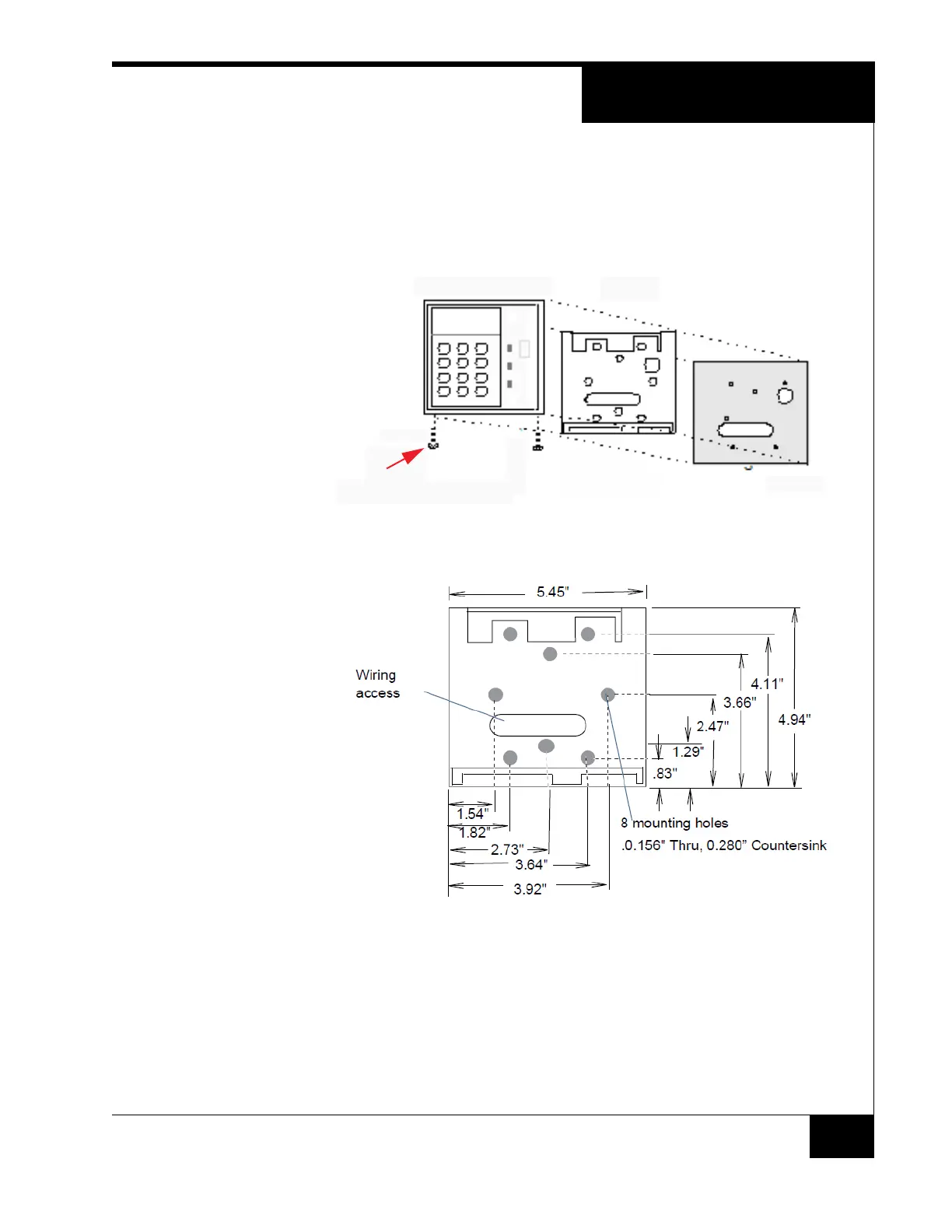

Figure 1 shows the reader standard housing, mount plate, and gasket. All RM
readers conform to the same housing, mount plate, and gasket dimensions.
Figure 1. Standard Housing and Mount Plate
Figure 2 on page 5 shows reader mount plate dimensions.
Figure 2. Reader Mount Plate Dimensions
To install the mounting plate:
1. Position the gasket with the reader mount plate so that the mounting holes
are properly aligned.
2. Ensure that the gasket is placed between the mounting surface and mating
surface of the reader mount plate.
3. Fasten the reader mount plate to the mounting surface with the gasket
material in between.
Standard Housing
Standard
mount plate
Gasket
Housing screws
Require a security screw driver
