INSTALLATION – WATER HEATER
18
LEGEND
LEGEND

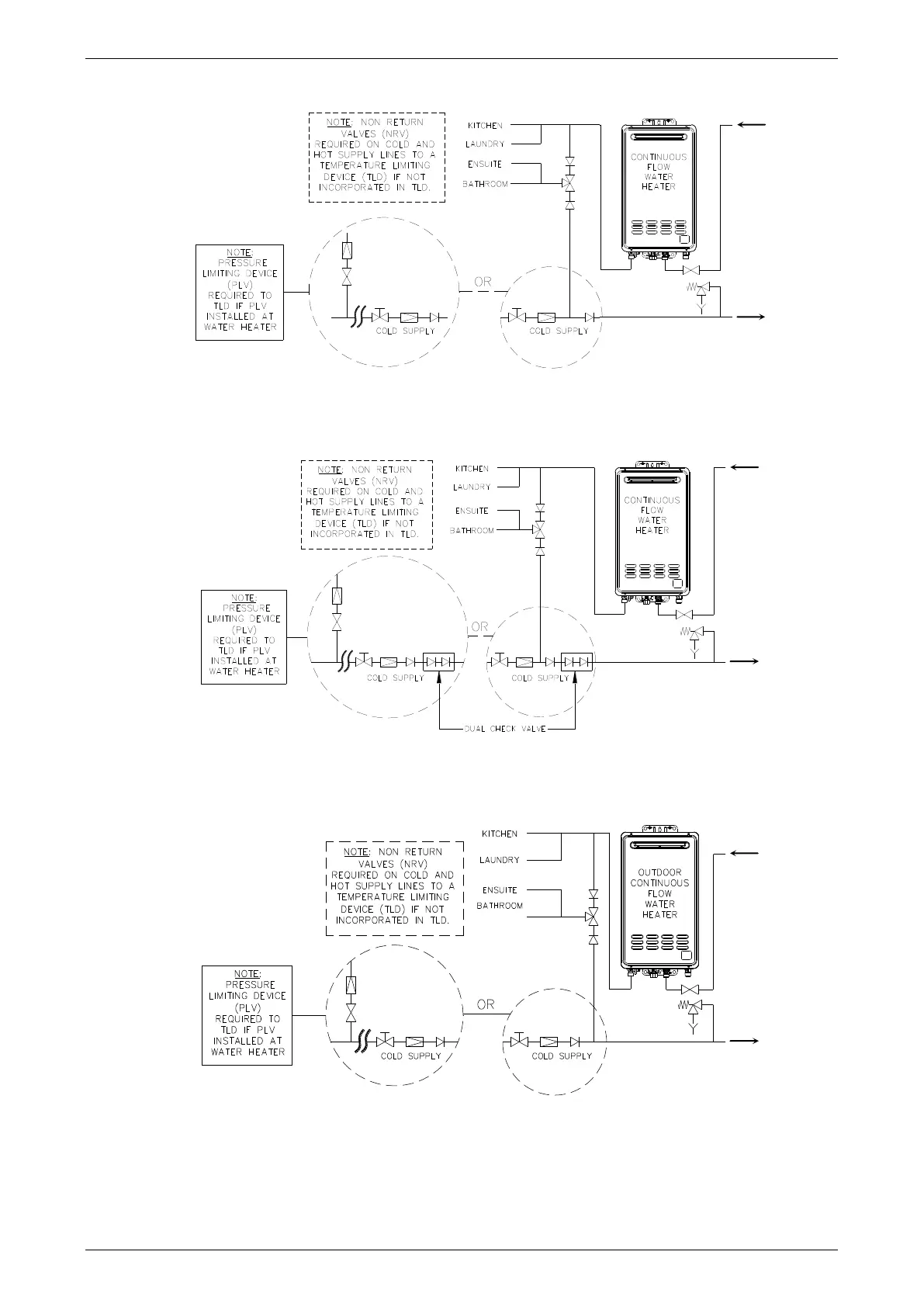

In-series Gas Booster for Open Circuit Direct Thermosiphon Solar Water Heater Installation
Two Temperature Zones Using a Temperature Limiting Device
LEGEND
In-series Gas Booster for Open Circuit Direct Streamline Solar Water Heater Installation
Two Temperature Zones Using a Temperature Limiting Device
LEGEND
In-series Gas Booster as part of a Closed Circuit Indirect Solar Water Heater Installation
Two Temperature Zones Using a Temperature Limiting Device
to solar
storage tank
from solar
storage tank
from solar
storage tank
to solar
storage tank
from solar
storage tank
to solar
storage tank
