Solahart Streamline - Page 36

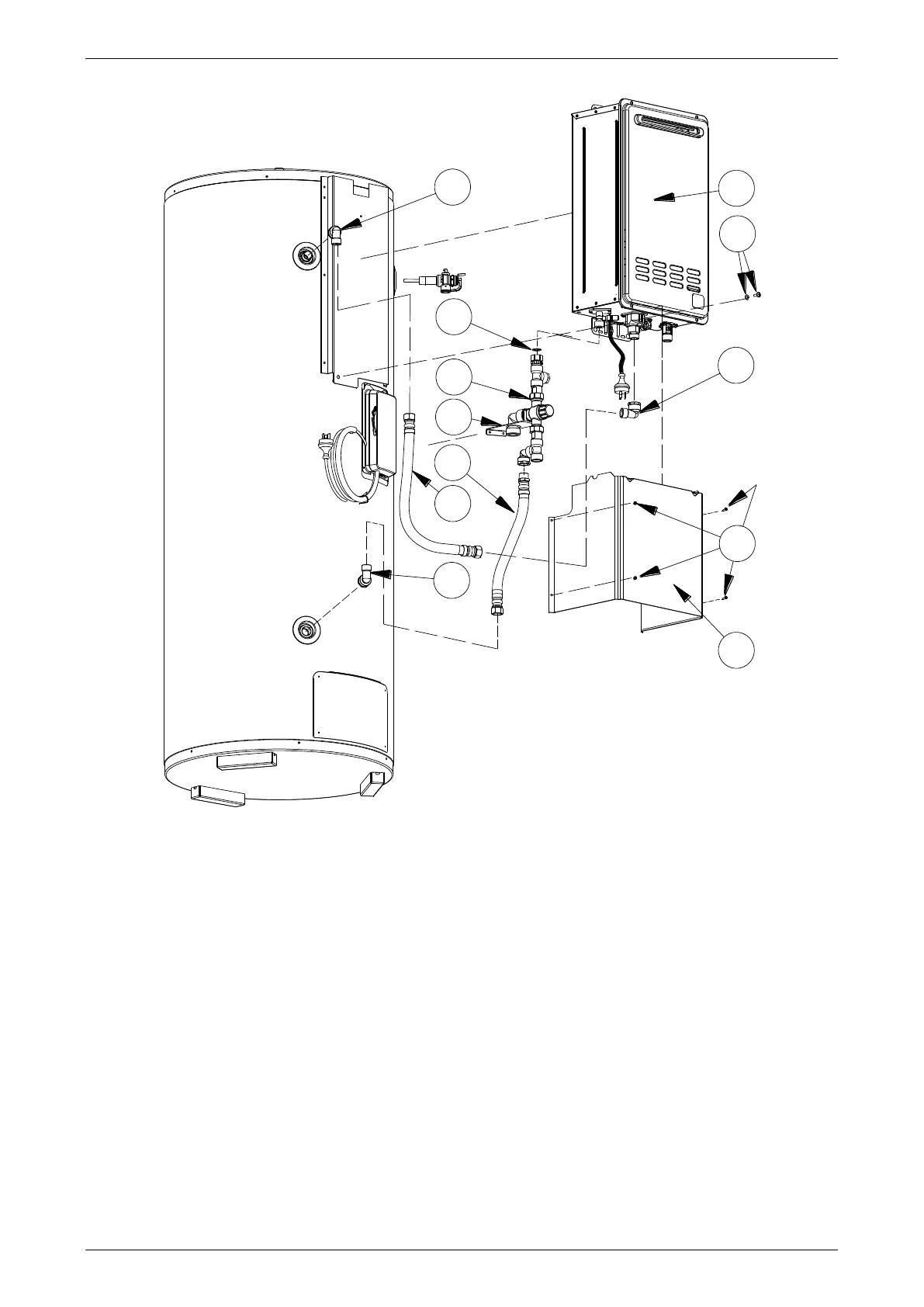

STORAGE TANK AND GAS BOOSTER ASSEMBLY
36
5
6
4
7
9
8
10
11
2
3
GAS BOOSTER WATER HEATER ASSEMBLY
270 LITRE SOLAR DRAINBACK WATER HEATER
1 HOT CONNECTION ASSEMBLY
2 COLD CONNECTION ASSEMBLY
3
GAS BOOSTER WATER HEATER
4 WASHER 24 OD x 16 ID x 1.5
5
WATER CONNECTION PLUMBING ASSEMBLY
6
BRACKET SUPPORT
7
FLEXIBLE HOSE (COLD INLET CONNECTION) 550mm LG
8
ELBOW FITTING 3/4" M/F
9
FLEXIBLE HOSE (SOLAR OUTLET CONNECTION) 425mm LG
10 FRONT JACKET COVER
11
SCREWS PHILIPS PANHEAD No 8x13
12 SCREW M6x16 AND WASHER
ITEM DESCRIPTION
12
1
Components for Assembly of Storage Tank and Gas Booster
1. Hot connection assembly
2. Cold connection assembly
3. Gas booster water heater
4. Washer 24 OD x 16 ID x 1.5 thick
5. Water connection plumbing assembly
6. Bracket support
7. Flexible hose (cold inlet connection) 550 mm long
8. Elbow fitting ¾” M x ¾” F Rye 2504
9. Flexible hose (solar outlet connection) 425 mm long
10. Front pipe cover
11. Screws No 8 x 13
12. Screw M6 x 16 and spring washer
