SOLAR Power Inverter USER’S MANUAL
11
Connect the AC Cables
Before connecting any device to be powered by the power inverter to an AC receptacle on the power inverter,
ensure that both the device and the power inverter are turned OFF. Plug the device into the power inverter’s AC
receptacle. If you run the AC cable of any device through a wall or other barrier, or near any sharp or rough edges,
always be sure to protect the AC cable from chaffing. When disconnecting any device powered by the power
inverter, always pull on the plug and never on the wire. NEVER operate a device with a damaged power cord.

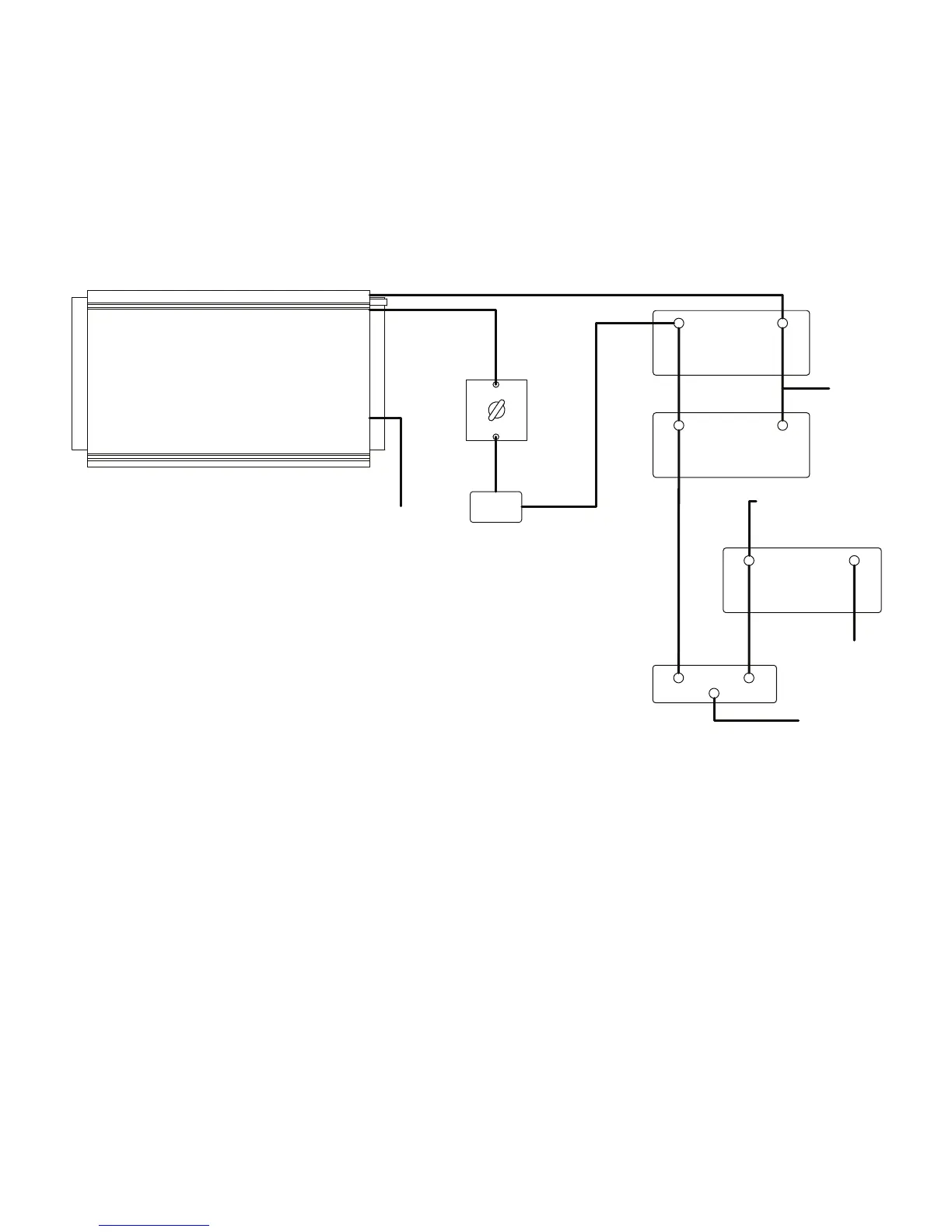

Power Inverter Installation Schematic
GROUND TO
VEHICLE
CHASSIS
DISCONNECT
SWITCH
ON
OFF
FUSE OR
CIRCUIT
BREAKER
DEEP-CYCLE
AUXILIARY
BATTERY
DEEP-CYCLE
AUXILIARY
BATTERY
VEHICLE
STARTING
BATTERY
GROUND TO
VEHICLE
CHASSIS
TO VEHICLE
GROUND TO
VEHICLE
CHASSIS
FROM ALT ERNATOR
OR CHARGER
ISOLATOR
INVERTER
POSITIVE
