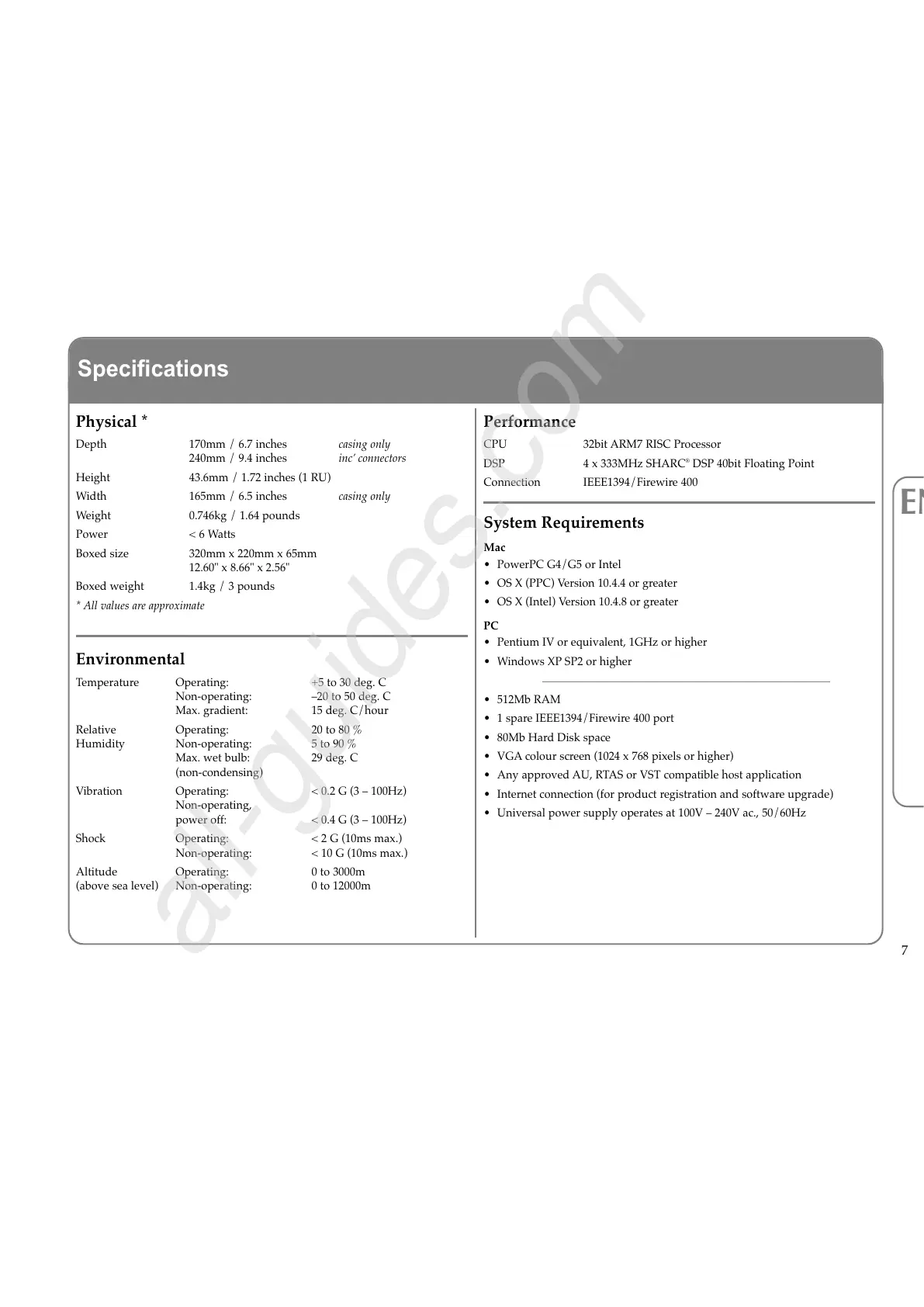

Solid State Logic Duende Mini - Specifications; Physical Specifications; Environmental Specifications; System Requirements

Physical *
Depth 170mm / 6.7 inches casing only
240mm / 9.4 inches inc’ connectors
Height 43.6mm / 1.72 inches (1 RU)
Width 165mm / 6.5 inches casing only
Weight 0.746kg / 1.64 pounds
Power < 6 Watts
Boxed size 320mm x 220mm x 65mm
12.60" x 8.66" x 2.56"
Boxed weight 1.4kg / 3 pounds
* All values are approximate
Environmental
Temperature Operating: +5 to 30 deg. C
Non-operating: –20 to 50 deg. C
Max. gradient: 15 deg. C/hour
Relative Operating: 20 to 80 %
Humidity Non-operating: 5 to 90 %
Max. wet bulb: 29 deg. C
(non-condensing)
Vibration Operating: < 0.2 G (3 – 100Hz)
Non-operating,
power off: < 0.4 G (3 – 100Hz)
Shock Operating: < 2 G (10ms max.)
Non-operating: < 10 G (10ms max.)
Altitude Operating: 0 to 3000m
(above sea level) Non-operating: 0 to 12000m
7
EN
DE
FR
ES
IT
Performance
CPU 32bit ARM7 RISC Processor
DSP 4 x 333MHz SHARC
®
DSP 40bit Floating Point
Connection IEEE1394/Firewire 400
System Requirements
Mac
• PowerPC G4/G5 or Intel
• OS X (PPC) Version 10.4.4 or greater
• OS X (Intel) Version 10.4.8 or greater
PC
• Pentium IV or equivalent, 1GHz or higher
• Windows XP SP2 or higher
• 512Mb RAM
• 1 spare IEEE1394/Firewire 400 port
• 80Mb Hard Disk space
• VGA colour screen (1024 x 768 pixels or higher)
• Any approved AU, RTAS or VST compatible host application
• Internet connection (for product registration and software upgrade)
• Universal power supply operates at 100V – 240V ac., 50/60Hz
Specifications
