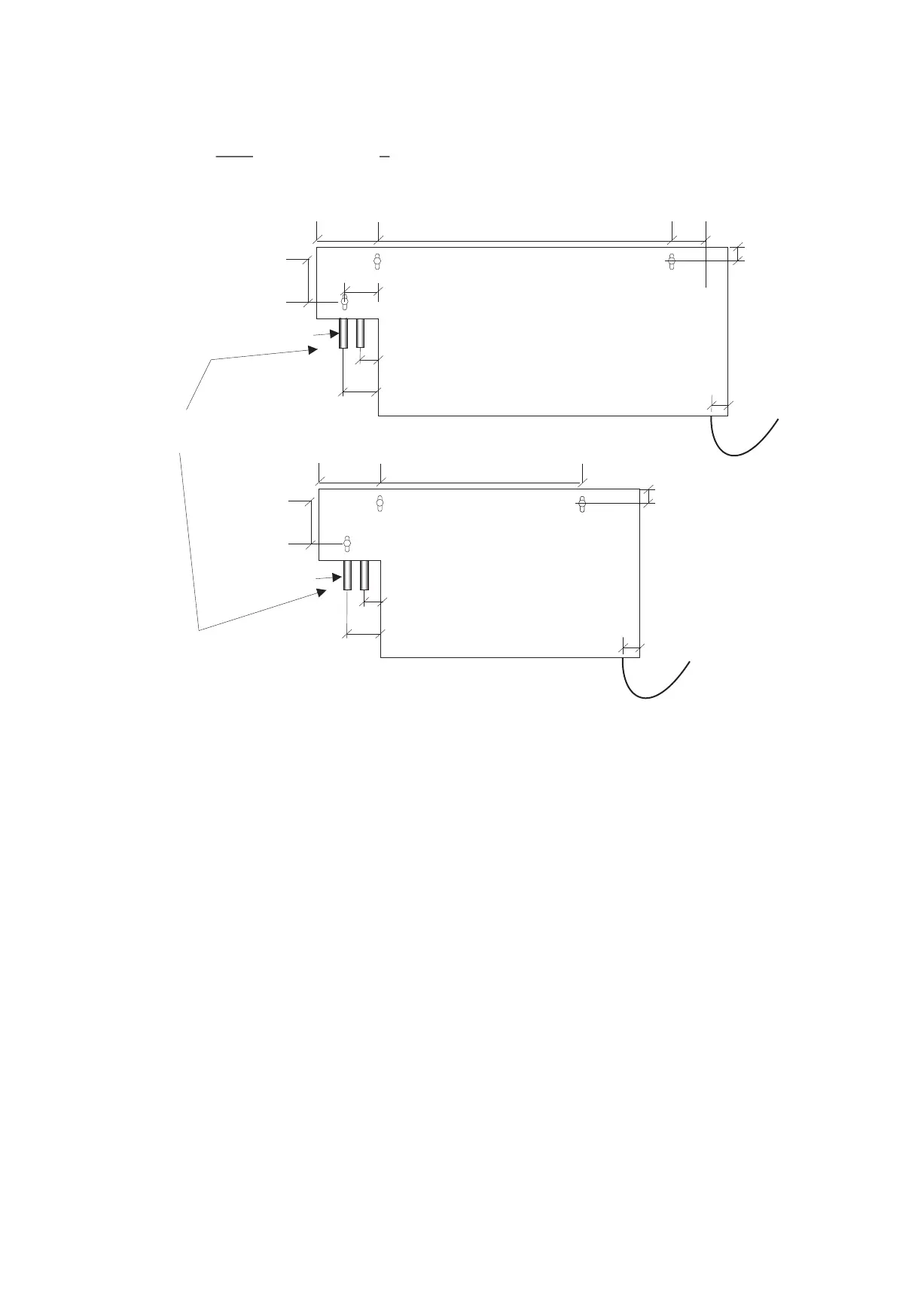

Solo installation details
739
120.5
41.5
113
365
120.5
113
Solo 6
Solo 3
88
25
25
25
60
25
60
2 x 15mm
dia. pipes
2 x 15mm
dia. pipes
Flow
Flow
1mm.sq three core
Cable entry underneath
25
1mm.sq three core
Cable entry underneath
Pipe connections are as shown, and are either 15mm dia. Plastic or copper.
Please note flow connection on LHS.
Electrical connection is via 3-core 1mm.sq or 1.5mm.sq
Trailing cable supplied with the Solo.
This is connected to a junction box or similar, and Solo is
equipped with a double pole isolator located underneath lower edge on RHS.
Centre Line of pipe conections
is 55mm out from rear of Solo
25
Technical Manual
All data applies only to Solo Discreet Range
