ENGLISH 5
7 Work preparation
Fitting the hose to the pump
Screw the hose with the union nut to the threaded connector of the
pump.
Outside of work, the spraying wand (h) is attached to the spraying
wand holder (j).
Always remove the spraying wand from the open side of the spraying
wand holder (vertical to the device), never on the side!
a. Spray tank
b. Tank lid screwed to the filling
socket (c)
d. Carry handle
e. Standing foot
f. On/off switch
g. Hand valve
h. Spray wand
i. Nozzle attachment
j. Spray tube holder
k. Carrying belt
l. Rechargeable battery

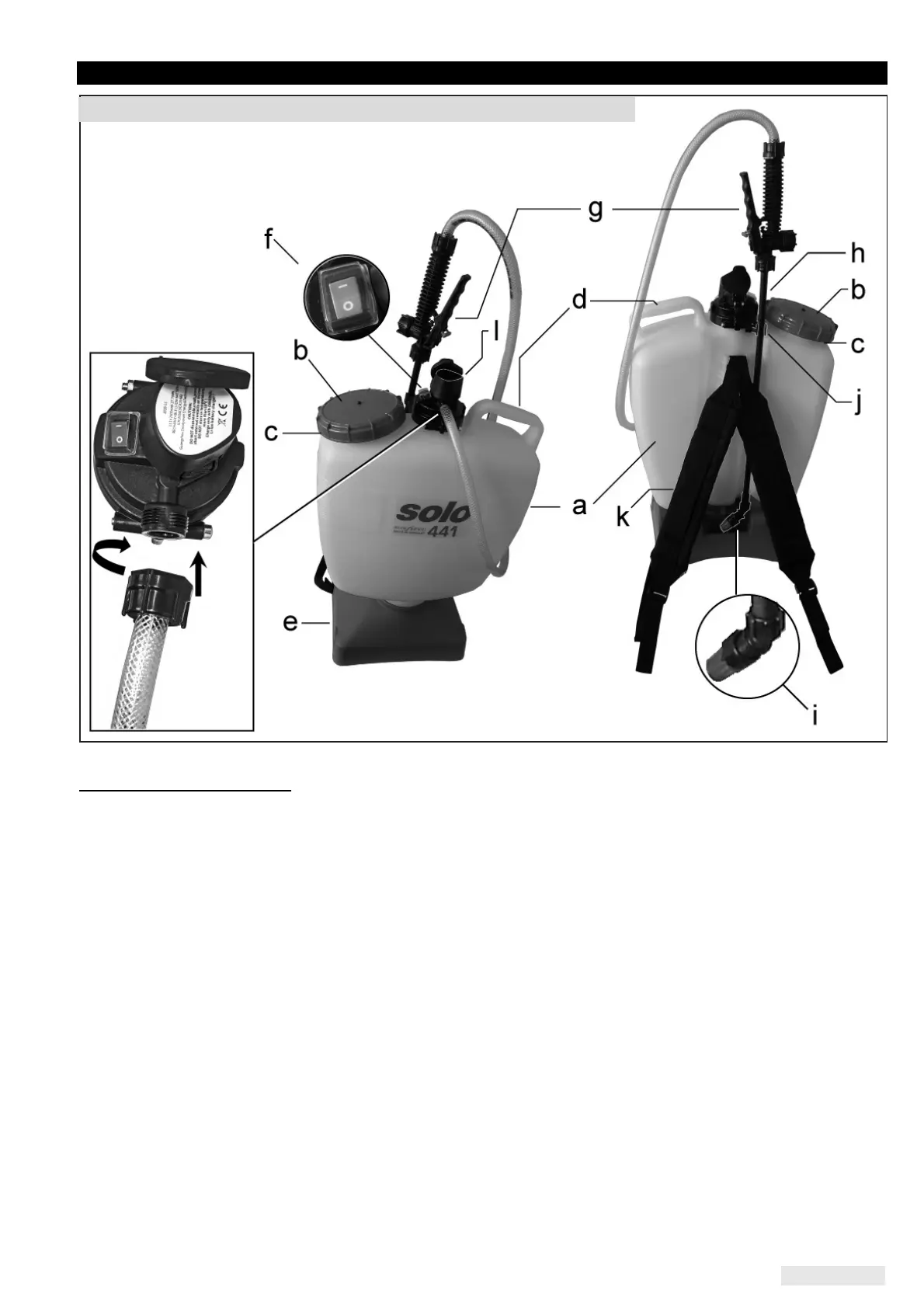

Fig. 1 Type 441, (Illustration depends on the model)
