Sonance Invisible series User Manual

Specifications:
SA3
Midrange/Tweeter: 48 in
2
(310cm
2
) planar diaphragm, driven
by a 1.02” (26mm) voice coil
Woofer: 50 in
2
(323cm
2
) — 8” (203mm) diameter
low-frequency radiator, driven by a
1” (25mm) voice coil
Frequency Range: 40Hz – 20kHz ±3dB
Impedance: 8 ohms nominal
Power Handling: 80 watts RMS
Sensitivity: 90dB (1w/1meter)
Dispersion: 140° hemispherical up to 10kHz
Finish: Primed surface ready for texture and paint
Overload Protection: Two independent self-resetting gel switches
(low-frequency and high-frequency)
Included Supplies: Mounting screws, shims for
5
/
8” drywall
Dimensions (W x H x D): 16” x 24” x 3
7
/
16”
(406mm x 610mm x 87mm)
Shipping Weight: 20 lbs (9.0kg) pair
SA1.5
Midrange/Tweeter: 48 in
2
(310cm
2
) planar diaphragm, driven
by a 1.02” (26mm) voice coil
Woofer: 33 in
2
(210cm
2
) — 6½” (165mm) diam-
eter low-frequency radiator, driven by a
1” (25mm) voice coil
Frequency Range: 50Hz – 20kHz ±3dB
Impedance: 8 ohms nominal
Power Handling: 80 watts RMS
Sensitivity: 88dB (1w/1meter)
Dispersion: 140° hemispherical up to 10kHz
Finish: Primed surface ready for texture and paint
Overload Protection: Two independent self-resetting gel switches
(low-frequency and high-frequency)
Included Supplies: Mounting screws, shims for
5
/
8” drywall
Dimensions (W x H x D): 16” x 12” x 3
7
/
16”
(406mm x 305mm x 87mm)
Shipping Weight: 12 lbs (5.4kg) pair
SAW
Woofer: Two 50 in
2
(323cm
2
) — 8” (203mm) diameter
low-frequency radiators, each driven by a
1” (25mm) voice coil
Frequency Range: 35Hz – 150Hz ±3dB
Impedance: 8 ohms nominal
Power Handling: 150 watts RMS
Sensitivity: 90dB (1w/1meter)
Dispersion: 180° hemispherical up to 150Hz
Finish: Primed surface ready for texture and paint
Overload Protection: Self-resetting gel switch
Included Supplies: Mounting screws, shims for
5
/
8” drywall
Dimensions (W x H x D): 16” x 24” x 3
7
/
16”
(406mm x 610mm x 87mm)
Shipping Weight: 17 lbs (7.7kg) each
212 Avenida Fabricante
San Clemente, CA 92672-7531 USA
(800) 582-7777 or (949) 492-7777
FAX: (949) 361-5151
Technical Support: (800) 582-0772
WWW.SONANCE.COM
©2010 Sonance. All rights reserved. Sonance and Sonamp are registered trademarks of Dana Innovations.
Due to continuous product improvement, all features and specifications are subject to change without notice.
For the latest Sonance product specification information visit our website:
www.sonance.com
010810a 01/10 ZDA005S
Sonance Invisible Series
SA3, SA1.5 and SAW In-Wall and In-Ceiling Speakers

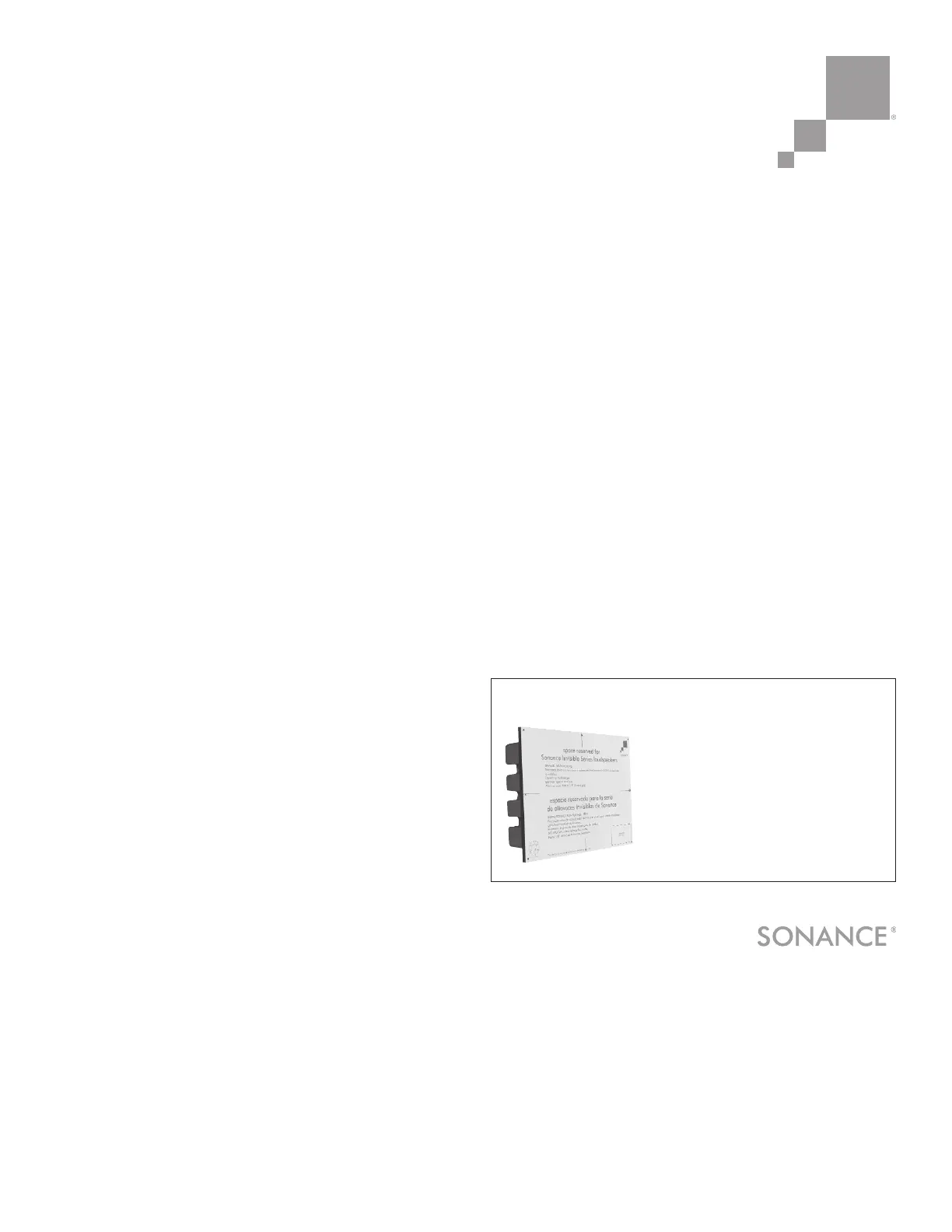

Space Savers
Reusable pieces installed
during new construction to
preserve the space until the
speaker is installed.
Available in two sizes —
one for the SA3/SAW and
one for the SA1.5.

Sonance Invisible series Specifications

General

Dimensions	Varies by model
Cutout Size	Varies by model
Mounting Depth	Varies by model
Type	Invisible
Power Handling	200 Watts
Impedance	8 Ohms
Installation	In-wall
Sensitivity	89dB
Finish	Paintable
Tweeter	None (uses planar diaphragm technology)
Woofer	None (uses planar diaphragm technology)
