Mounting the suspension seatpost and ball

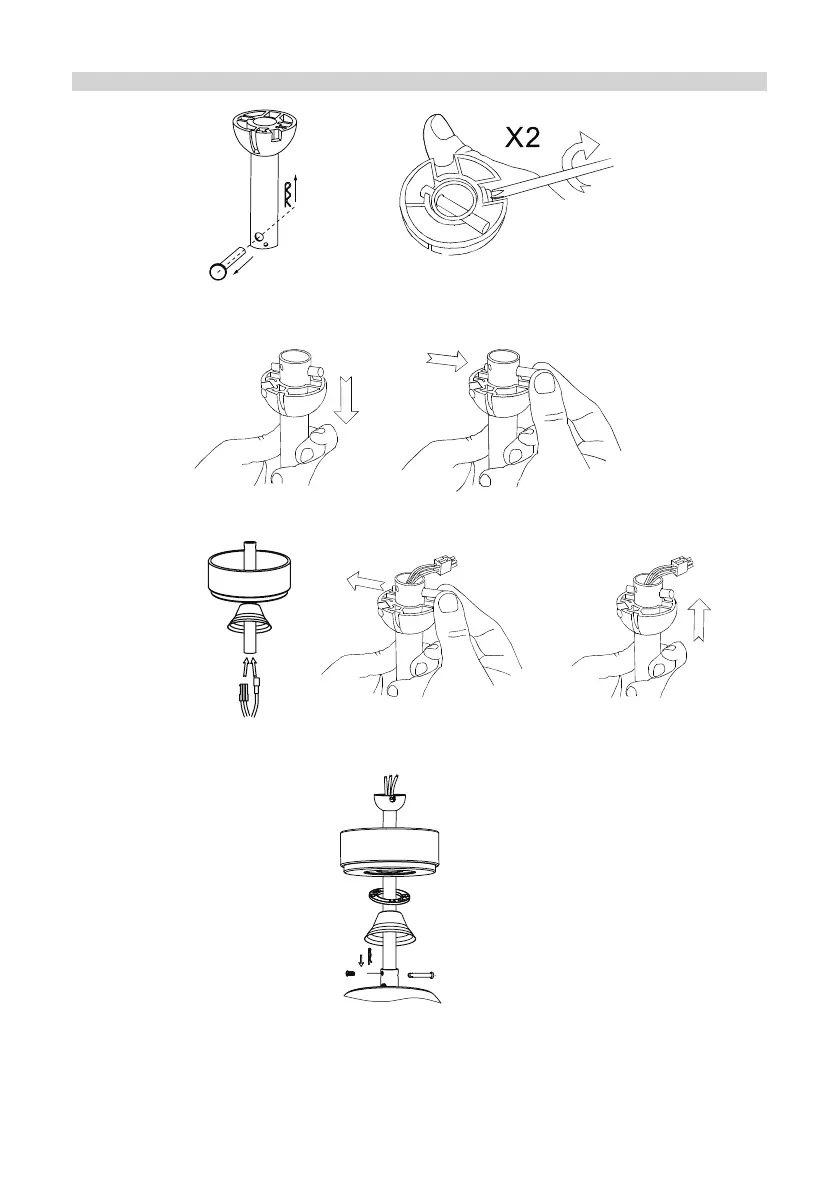

Remove the cotter pin and safety clip from the bottom of the seat post. Loosen
the suspension ball screws.
Slide the ball down and remove the pin.
Pass the trim, decorative ring and rosette through the seat post and pass the
motor cables through the seat post. Replace the hanger ball.
Attach the previously assembled seat post frame to the motor. Remove the
motor pin and loosen the two screws, place the frame on the base and secure
it with the pin and securing clip and retighten the two screws.
