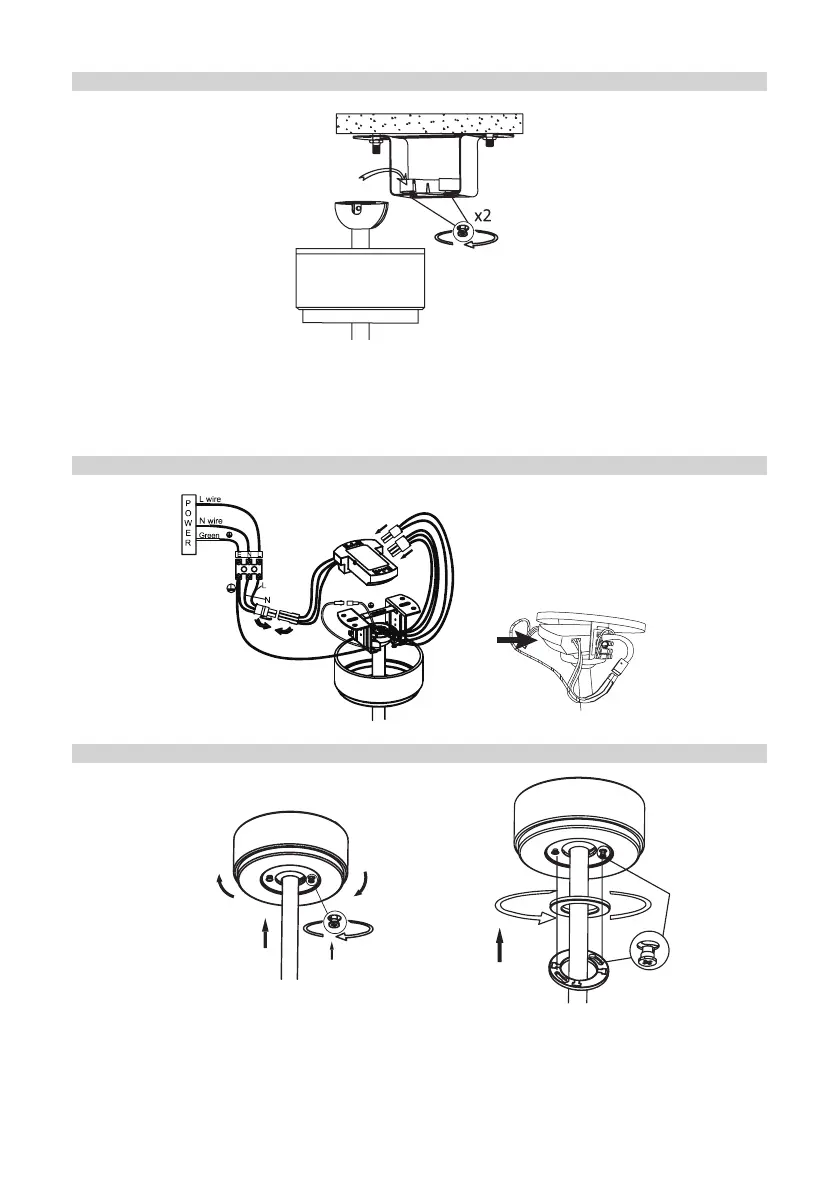

Hang the fan
Before hanging the fan, loosen the 2 screws at the base of the mounting brac-
ket. Hang the fan by the hanger ball on the bracket and rotate it until it locks
into the bracket lug.
Connect cables and receiver
Placing the ceiling rose
Attach the canopy to the hanger bracket by lifting it up and turning to position
the screws in the two holes. Firmly tighten the two screws. Raise the decorati-
ve ring and turn counterclockwise until it secures to the screws.
