5

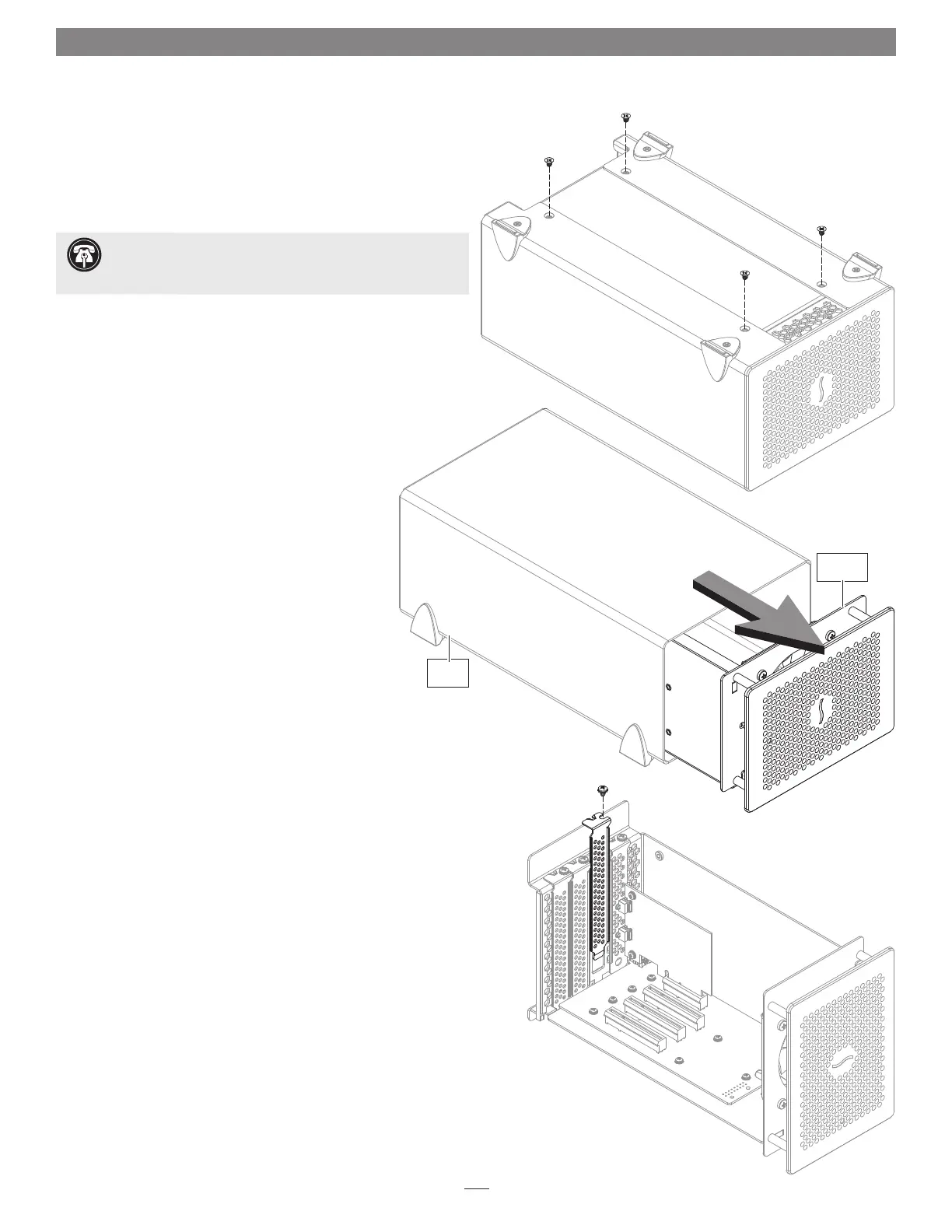

Chapter 3 – PCIe Card Installation and Chassis Setup Steps
Figure 1
1. Remove the Echo Express SE III chassis from its packaging, and then set
it upside-down on a soft, flat, level surface.
2. Using a Phillips screwdriver, remove and set aside the four screws
securing the outer case to the inner assembly (Figure 1).
3. Flip the Echo chassis over. Place one hand on top of the outer case.
Remove the inner assembly by gently grasping its faceplate by the edges
and pulling (Figure 2). Set aside the outer case.
4. Turn the inner assembly on its side with the PCIe slots facing up.
Remove and set aside the screw securing a port access cover from the
Echo Express SE III chassis’ inner assembly (Figure 3).
5. Remove and set aside the loose port access cover (Figure 3).
6. Repeat steps 4 and 5 as necessary with the remaining port access
covers.
Support Note: To avoid damaging components due to static
electricity discharge, wear an antistatic wrist strap while working
inside Echo Express SE III.
Figure 2
Figure 3
inner
assembly
outer
case
