Specifications
Fully balanced Non oversampling DAC
Four SDA-3 dac modules per channel in differential mode
Power supply 30VA 110/115V AC 220/230V AC 60/50Hz. Power consumption max. 16 Watts.
Input 1x optical, 1x coaxial and 1x AES/EBU 1x I2S and USB
Output 1x stereo pair single ended 2 Volts RMS. 0.66 Volts RMS using the -10dB option
Output 1x stereo pair XLR balanced 4 Volts RMS 1.33Volts RMS using the -10dB option
Frequency Response 44.1 kHz sampling 1Hz – 20 kHz -1 dB
Frequency Response 192 kHz sampling 1Hz – 65 kHz – 3dB and 384kHz (USB)
Distortion 0.004% THD
Noise Floor -160 dB related to 4 Volt RMS
Output impedance RCA 100 Ohm, XLR 16 Ohm. 8 Ohms for XLR using the -10dB hardware mode.
Sampling rate Optical 44.1 – 96 kHz
Sampling rate Coax and AES/EBU: 44.1 -192 kHz
Sampling rate USB 44.1 – 384kHz

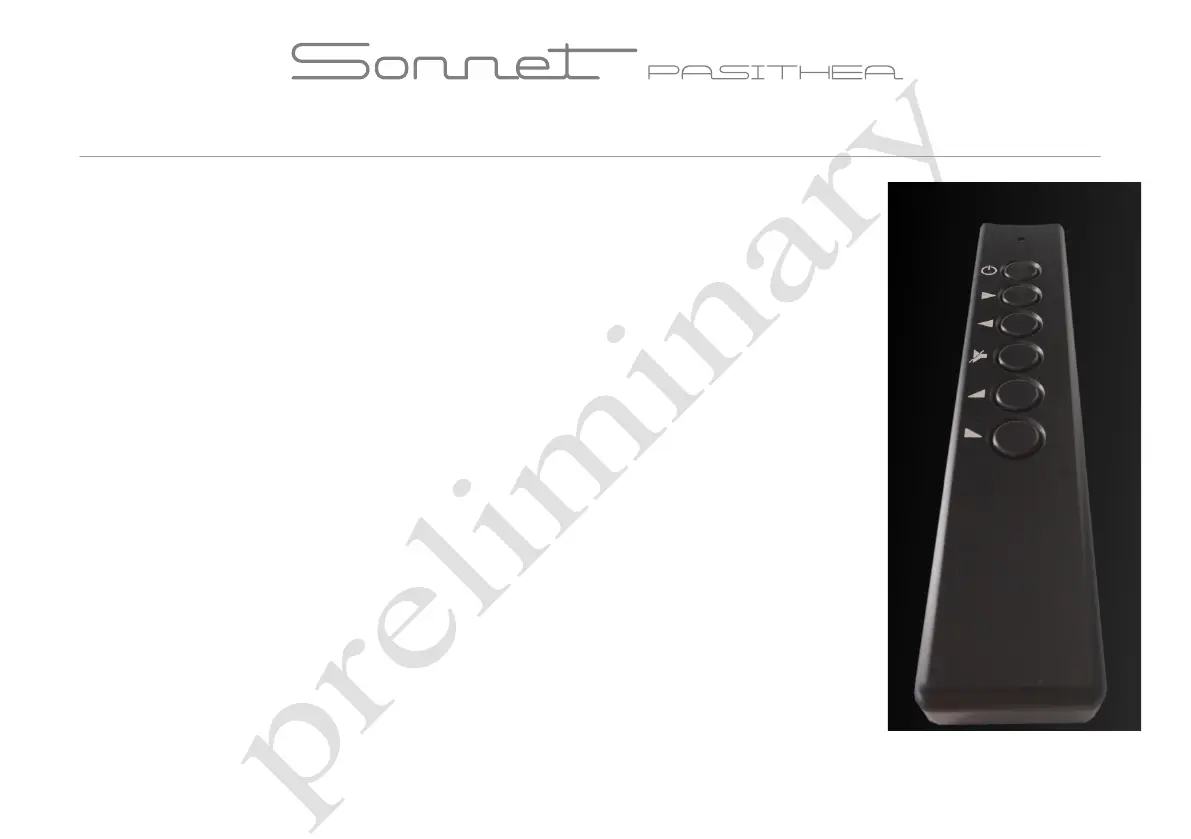

Aluminum six button remote control included.
MQA option is available as an option.
Dimensions 290 x 250 x 60 mm
Weight 3.5KG
