Sonoff SwitchMan M5-1C-80W User Manual

3
1. Power off
Installation

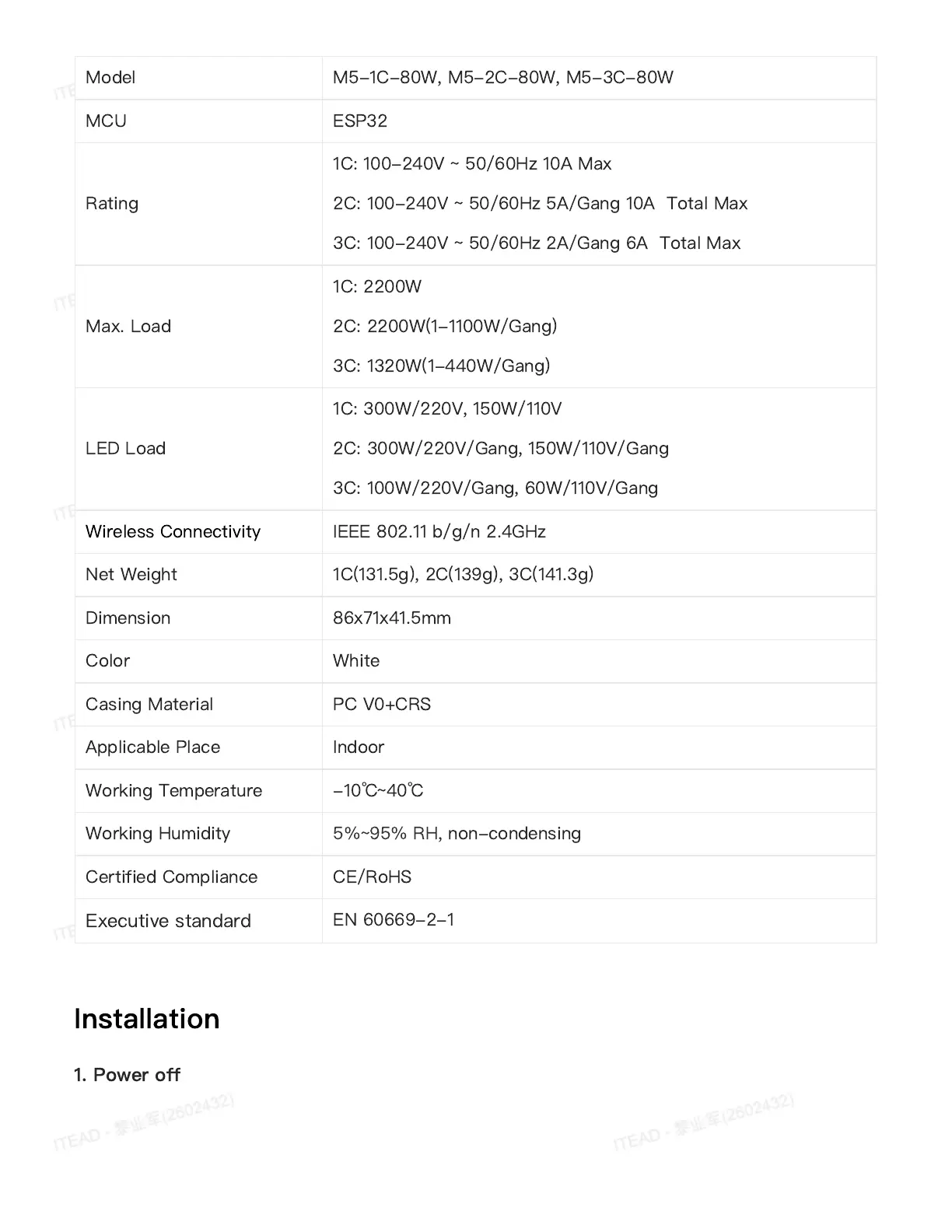

Model M5-1C-80W, M5-2C-80W, M5-3C-80W
MCU ESP32
Rating
1C: 100-240V ~ 50/60Hz 10A Max
2C: 100-240V ~ 50/60Hz 5A/Gang 10A Total Max
3C: 100-240V ~ 50/60Hz 2A/Gang 6A Total Max
Max. Load
1C: 2200W
2C: 2200W(1-1100W/Gang)
3C: 1320W(1-440W/Gang)
LED Load
1C: 300W/220V, 150W/110V
2C: 300W/220V/Gang, 150W/110V/Gang
3C: 100W/220V/Gang, 60W/110V/Gang
Wireless Connectivity IEEE 802.11 b/g/n 2.4GHz
Net Weight 1C(131.5g), 2C(139g), 3C(141.3g)
Dimension 86x71x41.5mm
Color White
Casing Material PC V0+CRS
Applicable Place Indoor
Working Temperature -10 ℃ ~40 ℃
Working Humidity 5%~95% RH, non-condensing
Certified Compliance CE/RoHS
Executive standard
EN 60669-2-1

Sonoff SwitchMan M5-1C-80W Specifications

General

Brand	Sonoff
Model	SwitchMan M5-1C-80W
Category	Switch
Language	English
