Sonoma 27 - Page 6

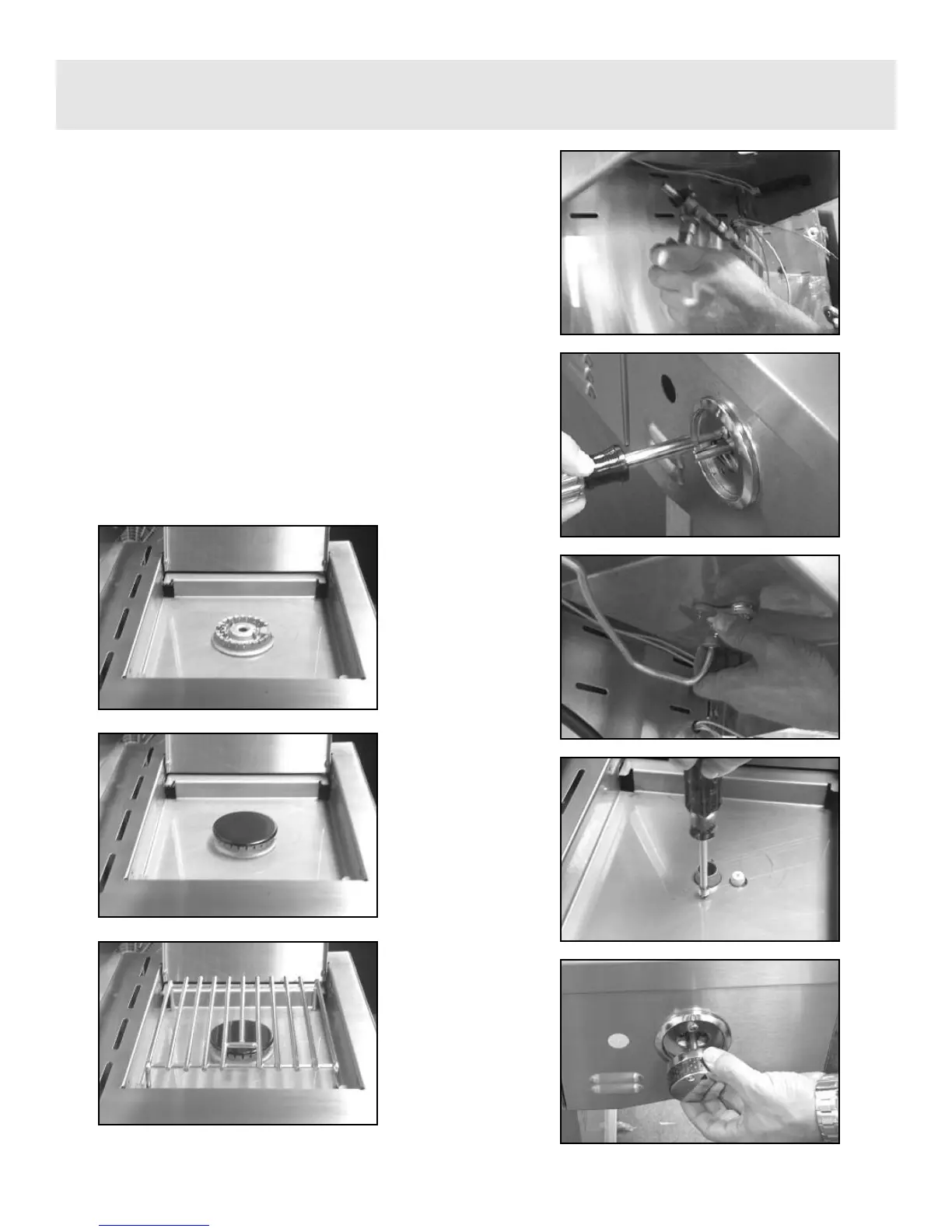

5. Slide the valve assembly through the center hole in the
front of the shelf. (See Fig. 5)
6
. Insert one valve screw through the bezel and in to the
side burner valve and tighten. Next, install the second
valve screw through the bezel and tighten (See Fig. 6)
7. Press the side burner assembly upward into the side
burner tray (See Fig. 7) and install two (2) self tapping
screws from the top of the tray. (See Fig. 8)
8. Install metal knob, making sure to line up the flat side of
the valve stem with the flat side of the knob stem.
(See Fig. 9)
9. Install side burner head and cap. (See Fig. 10-11)
10. Install grate over side burner. (See Fig. 12)
4
Grill Assembly
Fig. 6
Fig. 8
Fig. 7
Fig. 10
Fig. 9
Fig. 11
Fig. 12
Fig. 5
