Sonos ARC User Manual

01/09/2020 arc
https://www.sonos.com/support/en-us/sonos-user-guide/index.html#t=sonos-user-guide%2Farc%2Farc.htm 5/5

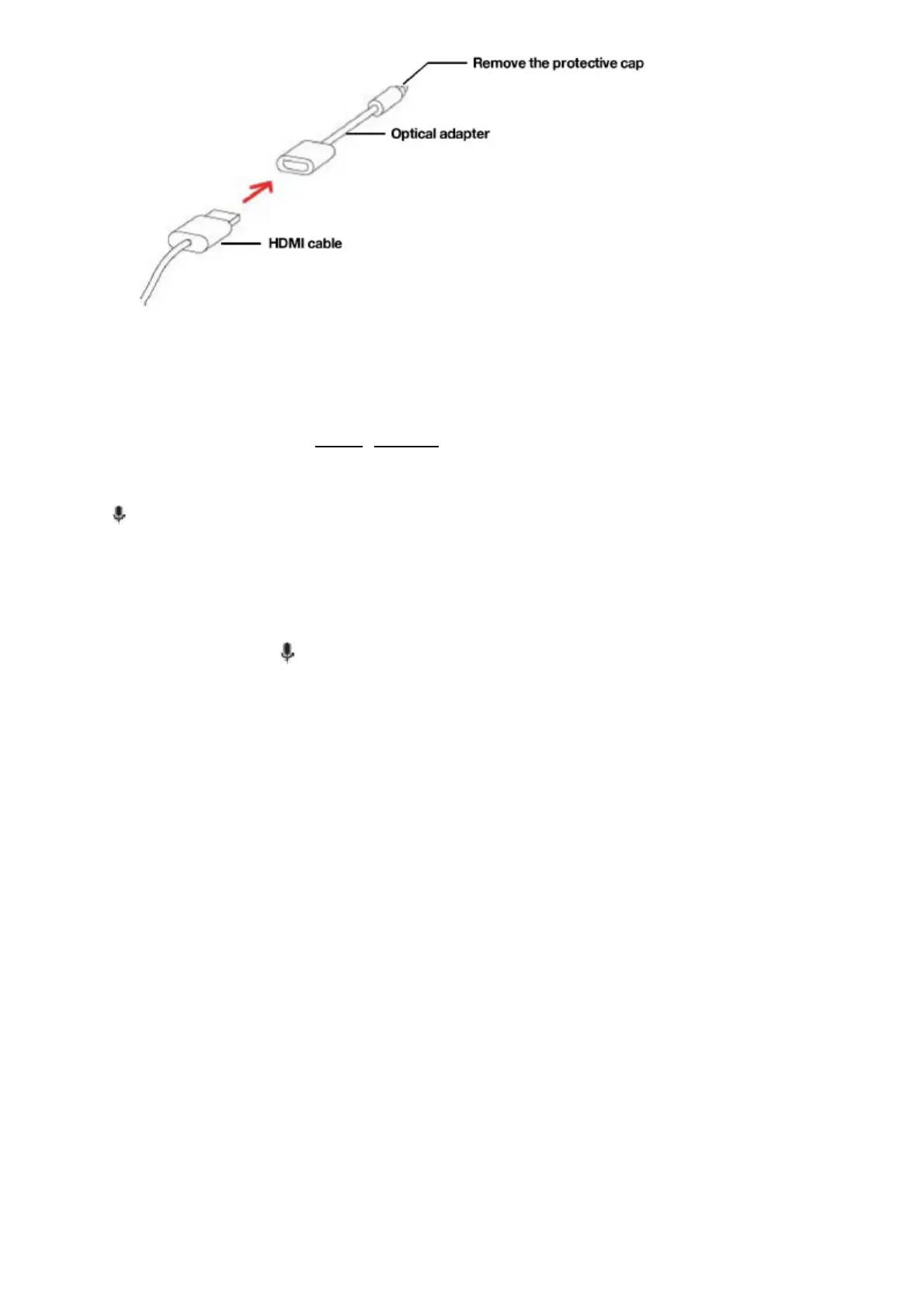

3. Connect the optical adapter to the TV’s optical digital OUT port.
Note: The optical adapter’s port is “D-shaped”—make sure the connector aligns correctly into the
port. Inserting the adapter incorrectly may damage the cable.
If you don’t have the free Sonos app, download it from the app store. You’ll need it to set up and
control your Sonos system. See Getting started.
Microphone on/off
Touch on your Sonos Arc to turn the microphone on and off. (If you don’t have a voice service
installed, the microphone is inactive.)
When the microphone light is on, voice control is on and your voice assistant is ready to respond.
When the microphone light is off, voice control is off.
Note: If you’ve installed Amazon Alexa and the microphone is off, you can still use voice commands.
Just press and hold while talking to Alexa—no need to start with a wake word. When you
release the microphone button, voice control turns off again.

Sonos ARC Specifications

General

RMS rated power	- W
Audio output channels	- channels
Audio Return Channel (ARC)	Yes
Bluetooth	-
Connectivity technology	Wired & Wireless
Number of woofer drivers	8
Number of tweeter drivers	3
Subwoofer included	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Certification	CE
Product color	White
Virtual assistant	Amazon Alexa & Google Assistant
Number of products included	1 pc(s)

Weight and Dimensions

Depth	115.7 mm
Width	1141.7 mm
Height	87 mm
Soundbar weight	6250 g
