Sony A90J - Topple Prevention; Securing the TV

D:\_SONY TV\AS\SY21_AS_CEP_RG_131\01GB\5024552131_01GB.fm master page: Right
XR-83A9xJ / 65A9xJ / 55A9xJ
5-024-552-13(1)
3
GB

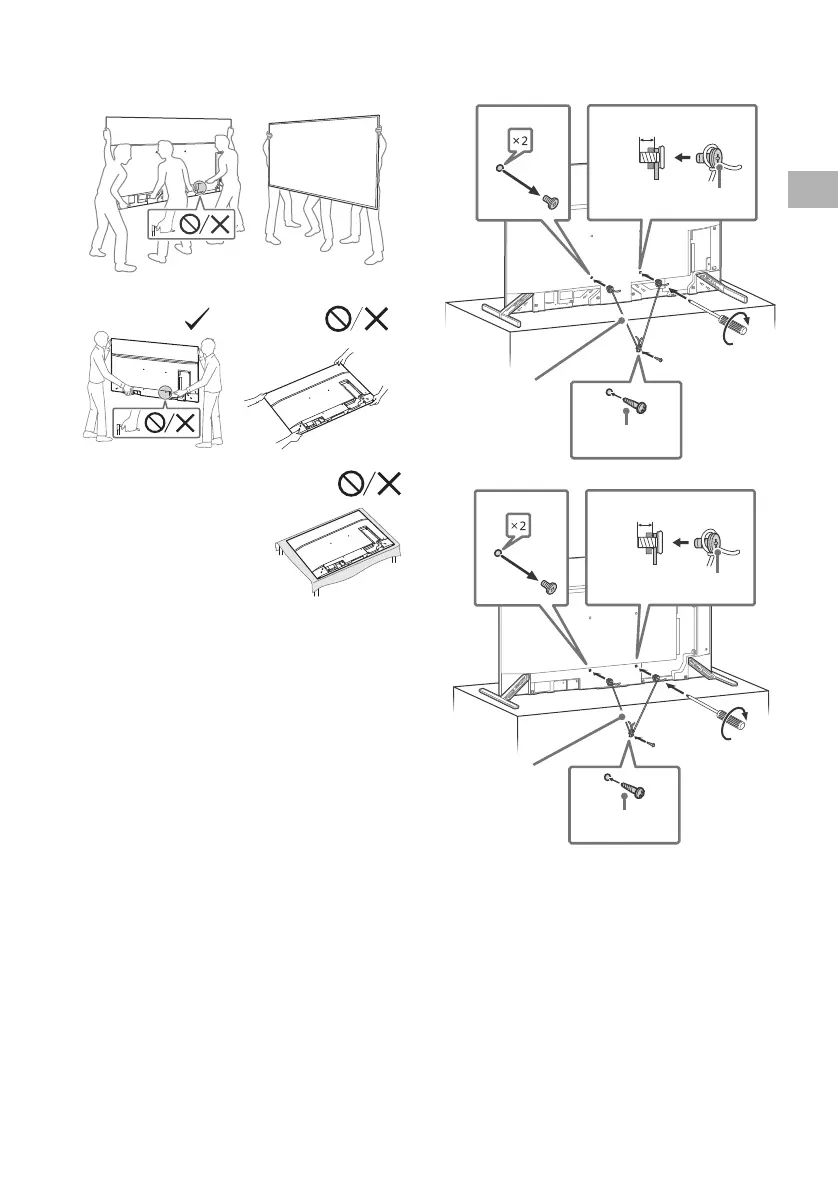

• When transporting the TV set by hand, hold it as shown belo
Do not put stress on the panel and the frame around the scree
w.
n.
XR-83A9xJ
• When transporting the TV set, do not subject it to jolts or
excessive vibration.
• When transporting the TV set for repairs or when moving, pack
it using the original carton and packing material.
Topple prevention
XR-83A9xJ
XR-65A9xJ / 55A9xJ
XR-65A9xJ / 55A9xJ XR-83A9xJ / 65A9xJ / 55A9xJ
• When handling or mounting the TV
set, do not lay down the TV.
3
4
12
10 mm – 14 mm
M6 screw (not supplied)
Screw (not supplied)
Cord (not
supplied)
1.5 N·m
{15 kgf·cm}
12
3
4
9 mm – 13 mm
M6 screw (not supplied)
Screw (not supplied)
Cord (not
supplied)
1.5 N·m
{15 kgf·cm}
