section
2.
DYNAMIC
TRACKING
~PRELIMINARY-
IC
214,
IC115
and
Q212:
SUBJECT
TO
CHANGE
1C214,
I1C215
and
Q212
alter-‘the
drum
advance
to
cope
with
INSTO.
(3)
Closed
Loop
and
DT
Drive
Amp
System:
The
head
height
voltage
for
channel
A
from
the
D/A
are
fed
to
the
IC303
LPF
and
the
inverter
amp
(gain
is
determined
at
RV303
and
R333).
Pins
8,
9,
and
10
of
IC303
constitute
a
notch
filter.
However,
when
the
lever
of
pin
10
of
IC305
is
LOW,
pins
5,
6
and
7
of
IC303
function
as
a
simple
buffer.

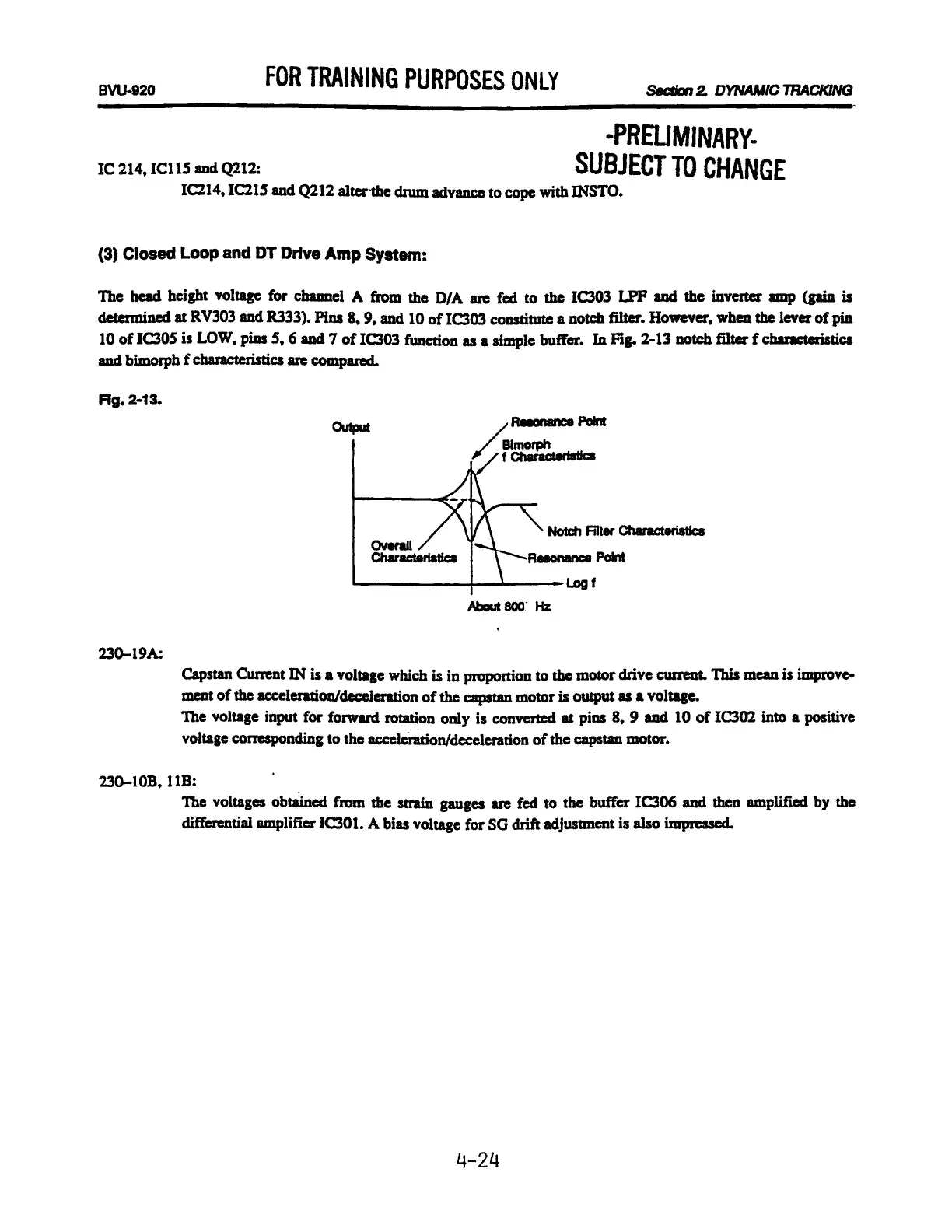

In
Fig.
2-13
notch
filter
f
characteristics
and
bimorph
f
characteristics
are
compared.
Fig.
2-13.
Output
A
Resonance
Point
Bimo
f
Chatacteristics
JN
Notch
Filter
Characteristics
Overall
Characteristics
Rlesonance
Point
Log
f
About
800°
Hz
230-19A:
Capstan
Current
IN
is
a
voltage
which
is
in
proportion
to
the
motor
drive
current.
This
mean
is
improve-
ment
of
the
acceleration/deceleration
of
the
capstan
motor
is
output
as
a
voltage.
The
voltage
input
for
forward
rotation
only
is
converted
at
pins
8,
9
and
10
of
IC302
into
a
positive
voltage
corresponding
to
the
acceleration/deceleration
of
the
capstan
motor.
230—10B,
11B:
The
voltages
obtained
from
the
strain
gauges
are
fed
to
the
buffer
IC306
and
then
amplified
by
the
differential
amplifier
IC301.
A
bias
voltage
for
SG
drift
adjustment
is
also
impressed.
