Sony CCD-TR315 - Page 76

CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716
CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK
4-92
4-93 4-94
VF-99 BOARD
CAMERA REC
H
1Vp-p
IC901
11
H
2.2Vp-p
IC901
13
1
2

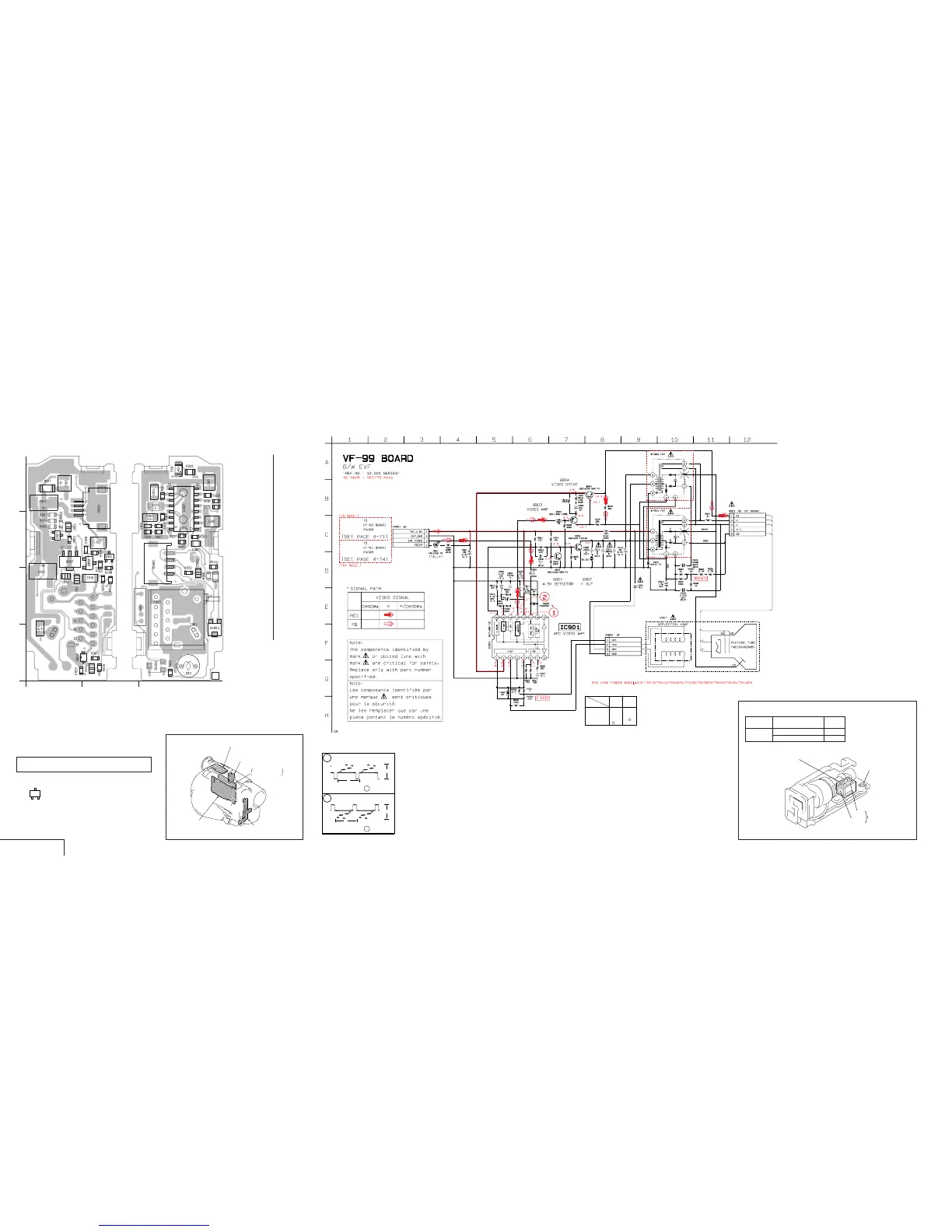

VF-99 (B/W EVF) PRINTED WIRING BOARD
– Ref No. VF-99 BOARD: 10,000 series –
• For Printed Wiring Boards.
• This board is four-layer print board. However, the patterns of
layers 2 to 3 have not been included in the diagram.
• Chip transistor
There are few cases that the part isn't mounted in this model is
printed on this diagram.
Q
C
BE
VF-99... B/W EVF models only
(B/W EVF)
PD-107... TRV series only
RGB decoder, LCD,
LCD drive, Back light
CF-61...
TRV series only
(Control)
SE-80...
TR716 only
SE-81... TRV series only
(Steady shot)
CD-210...
TR series only
CD-211... TRV series only
(CCD imager)
Ref. No.
XX
1.5k
18
XX
BOARD
TYPE
C910
R906
R921
T901
T902
4700pF
1.5k
6.8
XX
TYPE 2 TYPE 3
(TYPE 2)
(TYPE 3)
VF-99 BOARD (TYPE 2/TYPE 3)
C901 D-1
C902 C-1
C903 C-3
C904 C-3
C905 D-1
C906 D-3
C907 D-3
C908 C-2
C909 B-3
C910 B-1
C911 B-1
C912 B-1
C913 D-3
C914 A-1
C915 A-2
C916 B-2
CN901 D-2
CN902 C-3
D901 D-3
D903 A-2
IC901 D-3
L901 C-3
L902 C-2
L903 A-3
Q901 C-1
Q902 C-1
Q903 C-2
Q904 C-2
R901 C-1
R902 C-1
R903 D-3
R904 C-1
R905 C-1
R906 C-1
R907 C-3
R908 C-3
R909 C-3
R910 C-3
R911 D-1
R912 D-3
R913 C-3
R914 C-3
R916 D-3
R917 D-3
R918 C-2
R919 B-2
R920 C-2
R921 A-2
R922 A-3
R923 A-1
R924 B-2
R925 B-2
R926 A-2
R927 C-3
R928 C-3
R929 D-3
R930 B-3
R931 B-3
R932 B-3
RV903 A-3
RV904 A-3
T901 B-3
T902 B-3
TH901 C-3
W901 B-3
12 3
A
B
C
D
09
VF-99 BOARD (SIDE B) VF-99 BOARD (SIDE A)
1-670-163-
11
1
2
B/W EVF
VF-99 (B/W EVF MODEL)
There are three types by combining RV904 and the fly-back transformer.
Fly-back transformer (T901, T902)
RV904
Side
Top
Label position
Position to attach fly-
back transformer label
Top (T902)
Side (T901)
RV904 type
Chip type
TYPE
TYPE 2
TYPE 3
