Sony CCU-TX50 - Page 11

1-3
CCU-TX50/V2

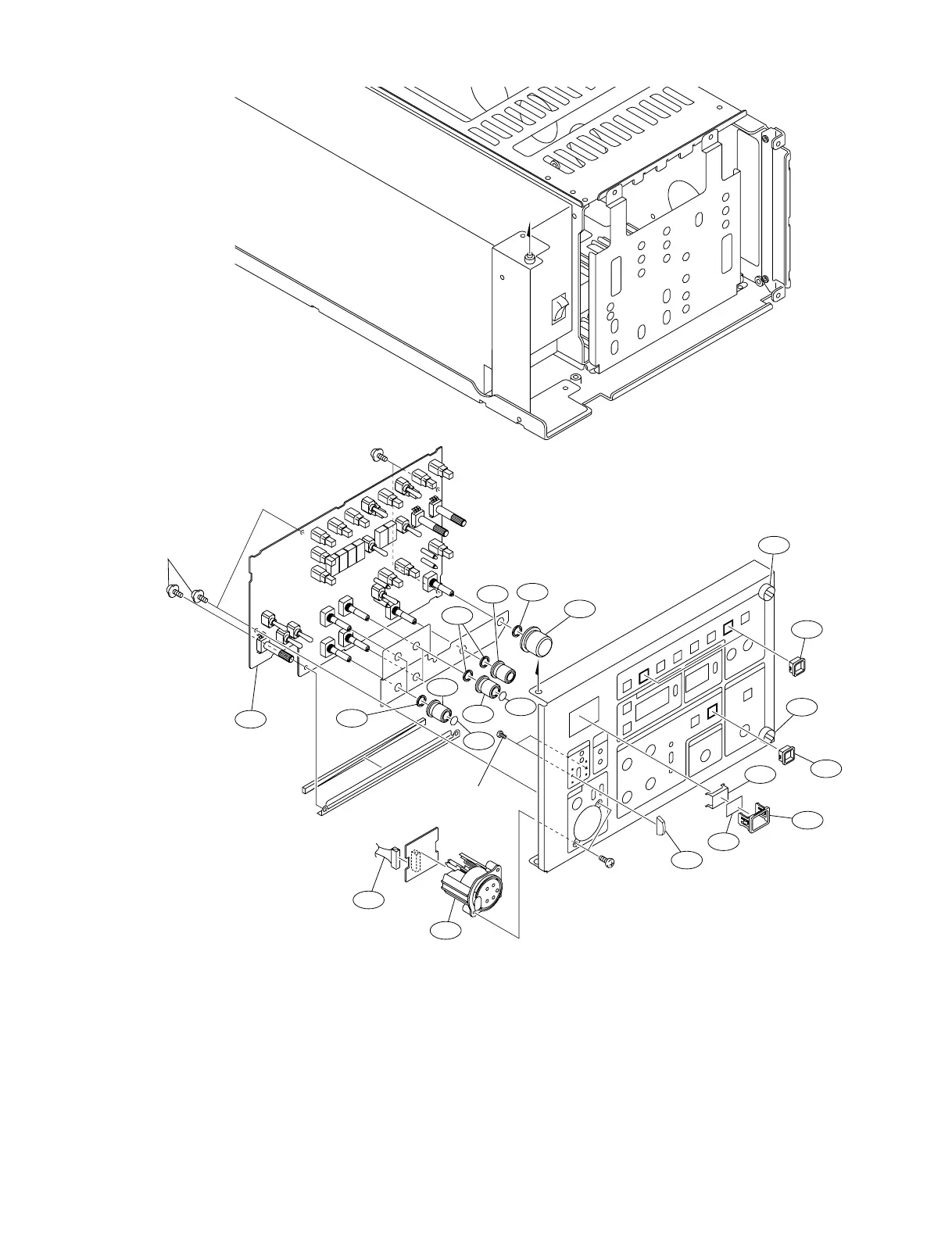

Front Panel Block
No. Part No. SP Description
101 A-1080-954-A s MOUNTED CIRCUIT BOARD, SW-1257
102 A-1080-968-A s MOUNTED CIRCUIT BOARD, CN-2516
103 X-3679-298-1 s KNOB,VOLUME ASSY
104 X-3679-302-2 s KNOB,VOLUME ASSY
105 1-695-213-11 o HOUSING, CONNECTOR 7P
106 2-118-268-01 s NUT (M9), HEXAGON (ZDC)
107 2-139-192-01 s FRAME, INDICATOR WINDOW
108 2-139-193-02 s WINDOW INDICATOR
109 2-249-353-00 s COVER,LAMP
110 3-603-523-01 o SWITCH GUARD
PTP2 x 6
(EP-FE/ZNBK/CM2)
+BTP2.6 x 6
(EP-FE/ZNBK/CM2)
PSW 3 x 6
PSW 3 x 6
101
103
103
103
106
106
104
113
110
113
110
111
105
102
114
107
108
109
112
106
No. Part No. SP Description
111 3-627-773-01 s MARKER(R) (PETP+PAPER+PSA)
112 3-627-774-01 s MARKER(B) (PETP+PAPER+PSA)
113 3-697-760-11 s SCREW,COIN
114 3-717-380-01 o GUARD, REC
7-682-947-01 s SCREW +PSW 3X6
7-685-104-19 s SCREW +PTP2X6(EP-FE/ZNBK/CM2)
7-685-533-19 s SCREW,+BTP2.6X6(EP-FE/ZNBK/CM2)
