5-10
CCU-TX50/V2
5-10

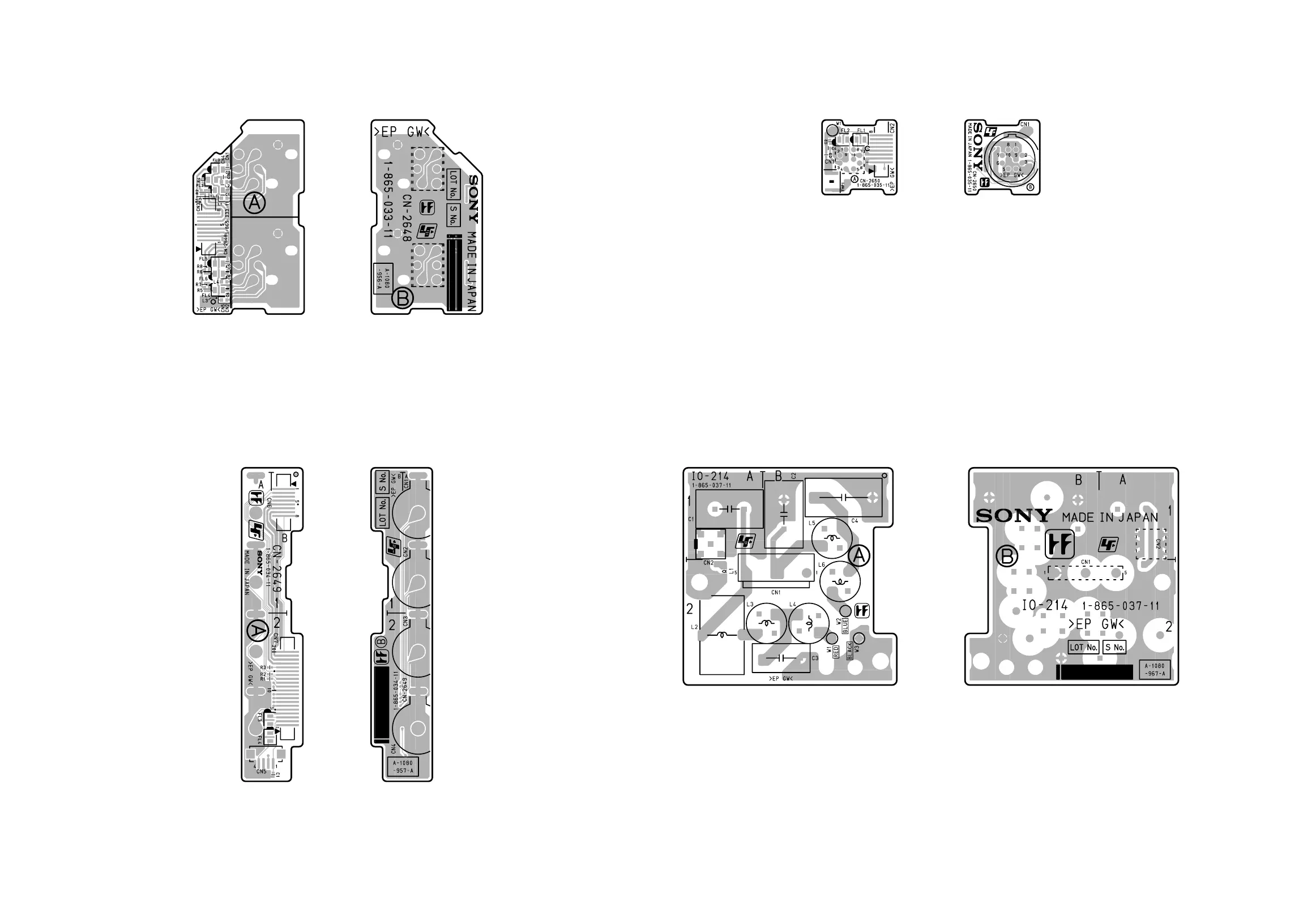

CN-2648, CN-2649, CN-2650, IO-214CN-2648, CN-2649, CN-2650, IO-214
CN-2648 -B SIDE-
SUFFIX: -11
CN-2648 -A SIDE-
SUFFIX: -11
CN-2649 -B SIDE-
SUFFIX: -11
CN-2649 -A SIDE-
SUFFIX: -11
CN-2650 -B SIDE-
SUFFIX: -11
CN-2650 -A SIDE-
SUFFIX: -11
IO-214 -B SIDE-
SUFFIX: -11
IO-214 -A SIDE-
SUFFIX: -11
