CDX-GT10W/GT100/GT150/GT150S

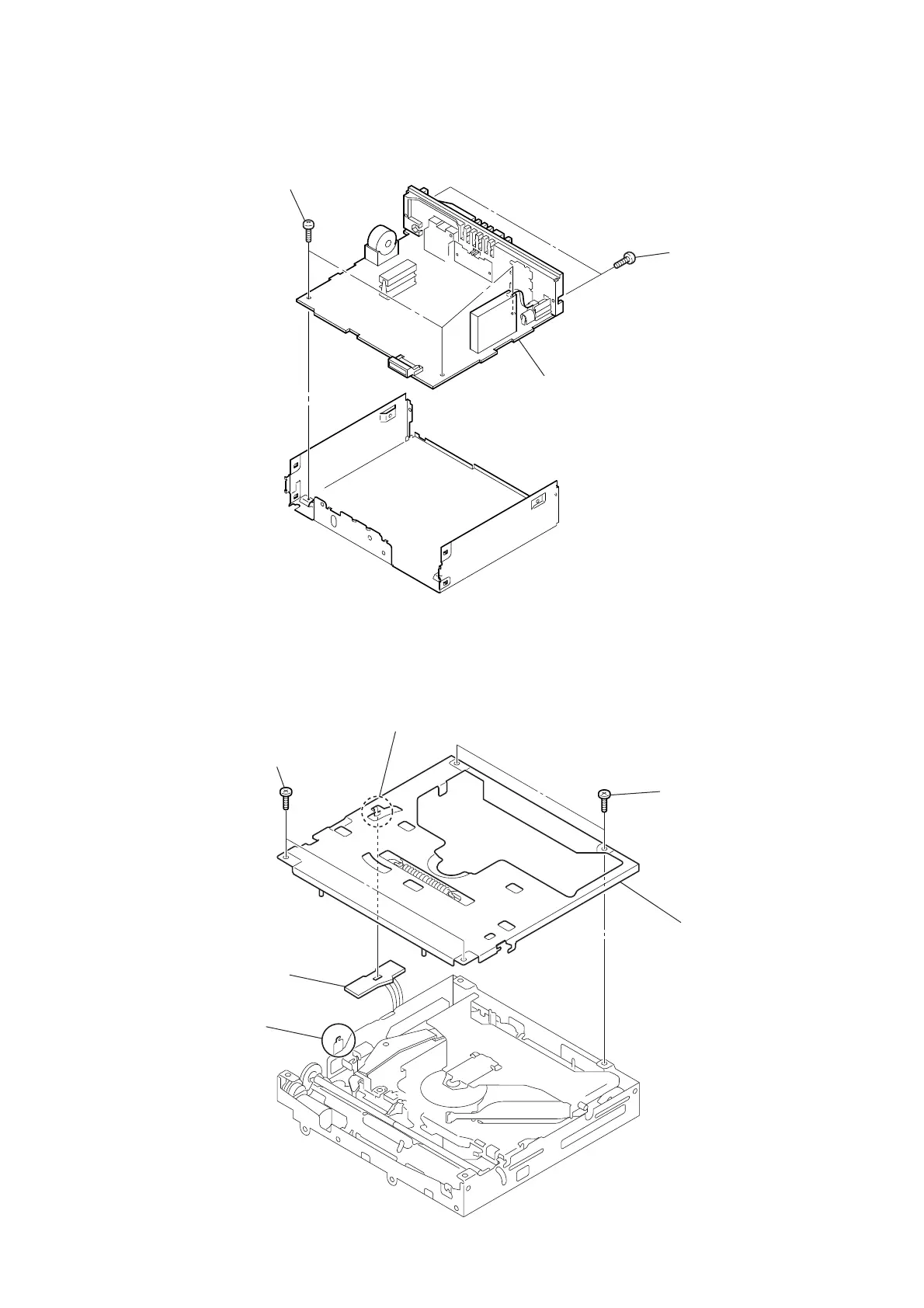

2-4. CHASSIS (T) SUB ASSY
2-3. MAIN BOARD
3
MAIN board
2
two
screws
(+PTT 2.6
×
8)
1
three
screws
(+BTT 2.6
×
5)
5
SENSOR board
6
chassis (T) sub assy
4
claw
3
claw
1
two
screws
(+P 1.7
×
2.2)
2
two
screws
(+P 1.7
×
2.2)
8
10
Table of Contents
Français
4
Default Chapter
4
Table of Contents
4
1 General
5
Location of Controls and Basic Operations
5
Connections
6
2 Disassembly
7
Sub Panel Assy
7
CD Mechanism Block
7
Main Board
9
Chassis (T) Sub Assy
9
Roller Arm Assy
10
Chassis (OP) Assy
10
Optical Pick-Up
11
SL Motor Assy (M902)
11
LE Motor Assy (M903)
12
Servo Board
12
3 Diagrams
13
Block Diagram - CD Section
13
Block Diagram - Main Section
14
Block Diagram - Display Section
15
Circuit Boards Location
15
Printed Wiring Boards - CD Mechanism Section
16
Schematic Diagram – CD Mechanism Section
17
Printed Wiring Board - Main Section
18
Schematic Diagram - Main Section (1/3)
19
Schematic Diagram - Main Section (2/3)
20
Schematic Diagram - Main Section (3/3)
21
Schematic Diagram - Key Section
23
4 Exploded Views
31
Main Section
31
Front Panel Section
32
CD Mechanism Section (1) (MG-611XE-186//C)
33
CD Mechanism Section (2) (MG-611XE-186//C)
34
CD Mechanism Section (3) (MG-611XE-186//C)
35
CD Mechanism Section (4) (MG-611XE-186//C)
36
5 Electrical Parts List
37
English
46
1 Diagrams
47
Printed Wiring Boards -CD Mechanism Section
48
Printed Wiring Board -Main Section
50
Schematic Diagram -Main Section (1/3)
51
Schematic Diagram -Main Section (2/3)
52
Schematic Diagram -Main Section (3/3)
53
Printed Wiring Boards -Key Section
54
Schematic Diagram -Key Section
55
2 Exploded Views
58
Main Section
58
Front Panel Section
59
CD Mechanism Section (1) (MG-611XE-186//Q)
60
CD Mechanism Section (2) (MG-611XE-186//Q)
61
CD Mechanism Section (3) (MG-611XE-186//Q)
62
CD Mechanism Section (4) (MG-611XE-186//Q)
63
3 Electrical Parts List
64
4
Based on 1 rating
Ask a question
Give review
