CFD-460 |
NOTE:
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
e@ The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.
e Items marked “¥" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

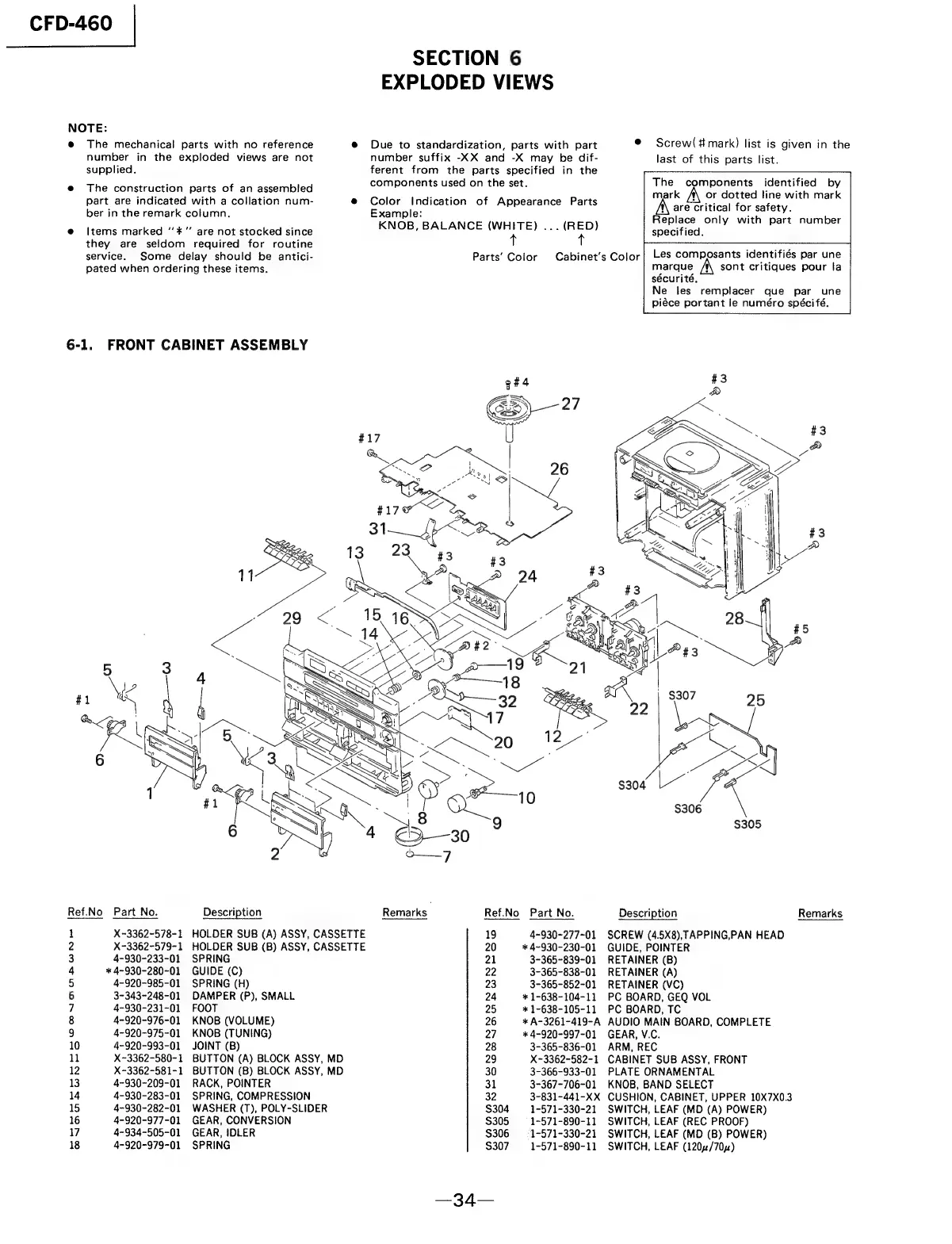

SECTION 6
EXPLODED VIEWS
@ Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
@® Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) ... (RED)
Parts’ Color
Cabinet's Color
6-1.
Ref.No Part No. Description Remarks Ref.No Part No.
1 X-3362-578-1 HOLDER SUB (A) ASSY, CASSETTE 19 4-930-277-01
2 X-3362-579-1 HOLDER SUB (B) ASSY, CASSETTE 20 * 4~930-230-01
3 4~930-233-01 SPRING 21 3-365-839-01
4 * 4-930-280-01 GUIDE (C) 22 3~-365-838-01
5 4~920-985-01 SPRING (H) 23 3-365-852-01
6 3-343-248-01 DAMPER (P), SMALL 24 * 1-638-104-11
7 4-930-231-01 FOOT 25 * 1-638-105-11
8 4~920-976-01 KNOB (VOLUME) 26 * A-3261-419-A
9 4-920-975-01 KNOB (TUNING) 27 * 4-920-997-01
10 4-920-993-01 JOINT (B) 28 3-365-836-01
11 X~3362-580-1 BUTTON (A) BLOCK ASSY, MD 29 X~3362-582-1
12 X-3362-581-1 BUTTON (B) BLOCK ASSY, MD 30 3-366-933-01
13 4-930-209-01 RACK, POINTER 31 3-367-706-01
14 4-930-283-01 SPRING, COMPRESSION 32 3-831-441-XX
15 4-930-282-01 WASHER (T), POLY-SLIDER $304 = 1-571-330-21
16 4-920-977-01 GEAR, CONVERSION $305 = 1-571-890-11
17 4~934-505-01 GEAR, IDLER $306 =. 1-571-330-21
18 4-920-979-01 SPRING $307. 1-571-890-11
FRONT CABINET ASSEMBLY
® Screw(#mark) list is given in the
last of this parts list.
The components
mark
identified by
or dotted line with mark
are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque sont critiques pour ta
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifé.
Remarks
Description
SCREW (4.5X8), TAPPING,PAN HEAD
GUIDE, POINTER
RETAINER (B)
RETAINER (A)
RETAINER (VC)
PC BOARD, GEQ VOL
PC BOARD, TC
AUDIO MAIN BOARD, COMPLETE
GEAR, V.C.
ARM, REC
CABINET SUB ASSY, FRONT
PLATE ORNAMENTAL
KNOB, BAND SELECT
CUSHION, CABINET, UPPER 10X7X0.3
SWITCH, LEAF (MD (A) POWER)
SWITCH, LEAF (REC PROOF)
SWITCH, LEAF (MD (B) POWER)
SWITCH, LEAF (1204/70)
