Sony CFD-460 - Page 23

CFD-460 |

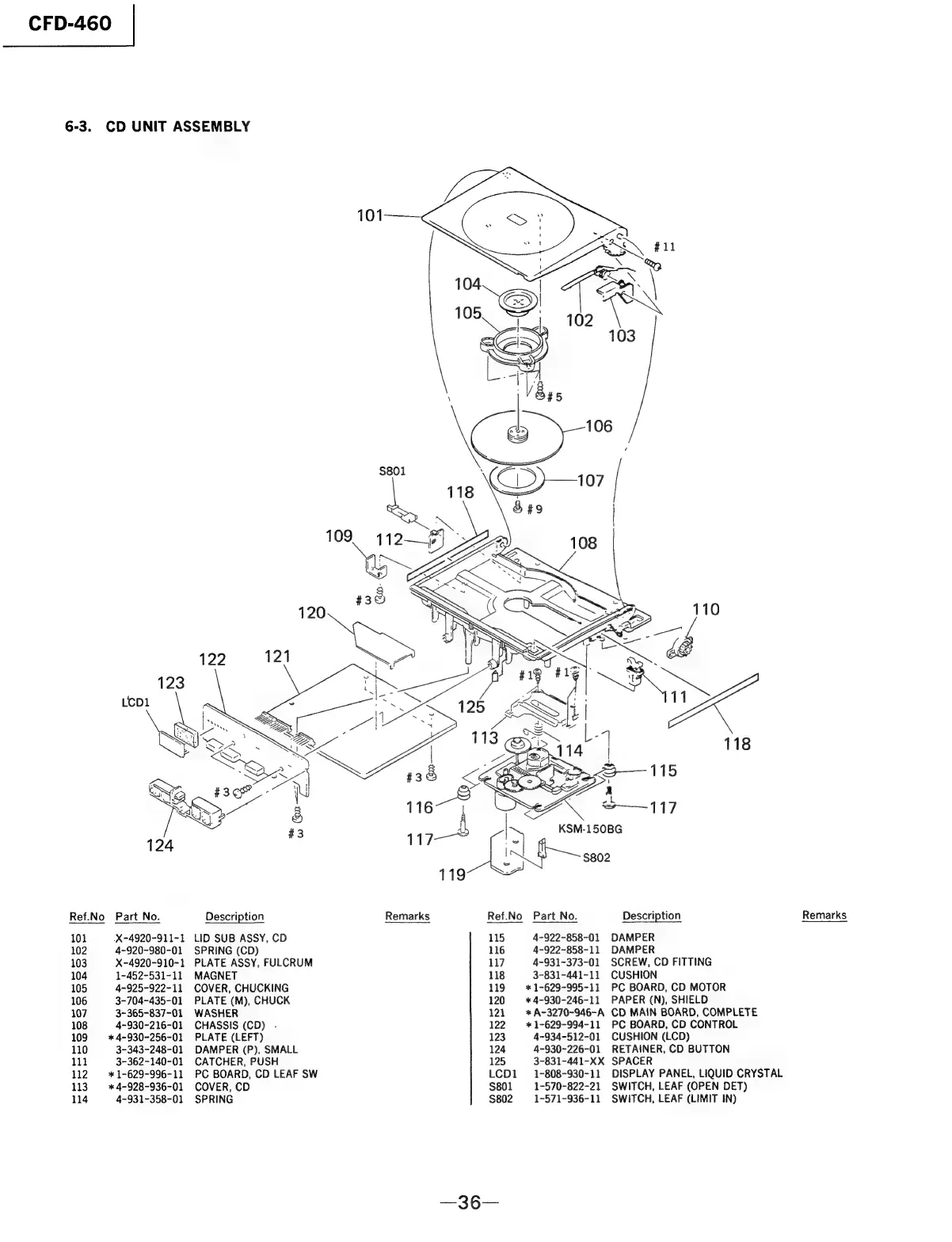

6-3. CD UNIT ASSEMBLY
Ref.No Part No.
101
102
103
104
105
106
107
108
109
110
111
112
113
114
X-4920-911-1
4-920~-980-01
X-4920-910-1
1-452-531-11
4-925-922-11
3-704-435-01
3-365-837-01
4-930-216-01
¥ 4-930-256-01
3-343-248-01
3-362-140-01
* 1-629-996-11
* 4-928-936-01
4-931-358-01
Description
LID SUB ASSY, CD
SPRING (CD)
PLATE ASSY, FULCRUM
MAGNET
COVER, CHUCKING
PLATE (M), CHUCK
WASHER
CHASSIS (CD) -
PLATE (LEFT)
DAMPER (P), SMALL
CATCHER, PUSH
PC BOARD, CD LEAF SW
COVER, CD
SPRING
2)
KSM-150BG
{i $802
Ref.No Part No.
115
116
117
118
119
120
121
122
123
124
125
LCD1
$801
$802
4-922-858-01
4-922-858-11
4-931-373-01
3-831-441-11
* 1-629-995-11
* 4-930-246-11
* A-3270-946-A
* 1-629-994-11
4-934-512-01
4-930-226-01
3-831-441-XX
1-808-930-11
1-570-822-21
1-571-936-11
Description Remarks
DAMPER
DAMPER
SCREW, CD FITTING
CUSHION
PC BOARD, CD MOTOR
PAPER (N), SHIELD
CD MAIN BOARD, COMPLETE
PC BOARD, CD CONTROL
CUSHION (LCD)
RETAINER, CD BUTTON
SPACER
DISPLAY PANEL, LIQUID CRYSTAL
SWITCH, LEAF (OPEN DET)
SWITCH, LEAF (LIMIT IN)
