– 21 –
* 101 A-3306-554-A MAIN BOARD, COMPLETE (US,CND,C&SA)
* 101 A-3306-603-A MAIN BOARD, COMPLETE (AEP,IT,SP)
* 101 A-3306-678-A MAIN BOARD, COMPLETE (E)
* 102 3-009-219-01 HOLDER, LCD
103 1-533-233-31 HOLDER, FUSE
* 104 1-666-264-11 POWER BOARD
* 105 1-665-043-31 AC INLET BOARD (E)
* 105 1-666-267-11 AC INLET BOARD (EXCEPT E)
106 3-013-719-01 CABINET (REAR) (BLACK) (US)
106 3-013-719-11 CABINET (REAR) (BLACK) (CND,C&SA)
106 3-013-719-21 CABINET (REAR) (BLACK) (AEP,IT,SP)
106 3-013-719-31 CABINET (REAR) (SILVER) (AEP,IT)
106 3-013-719-61 CABINET (REAR) (BLACK) (E)
107 3-009-211-01 SPRING (–)
* 108 1-666-266-11 BATT BOARD
109 3-009-210-01 SPRING (+/–)
110 3-009-202-01 LID, BATTERY CASE (BLACK)
110 3-009-202-21 LID, BATTERY CASE (SILVER) (AEP,IT)
* 111 3-009-222-01 TERMINAL (SYNTHESIZER),ANTENNA
* 112 A-3306-318-A TUNER BOARD, COMPLETE (AEP,IT)
* 112 A-3306-360-A TUNER BOARD, COMPLETE (US, CND)
* 112 A-3306-667-A TUNER BOARD, COMPLETE (C&SA)
* 112 A-3306-677-A TUNER BOARD, COMPLETE (E)
* 112 A-3306-683-A TUNER BOARD, COMPLETE (SP)
* 113 3-015-505-01 SEAL (A) (BLACK)
* 113 3-015-505-21 SEAL (A) (SILVER) (AEP,IT)
114 1-782-112-11 CABLE, FLEXIBLE FLAT 13P
115 1-666-570-11 TUNER RETAINER BOARD
116 3-831-441-11 CUSHION (F)
117 3-703-397-01 STOPPER, WIRING
118 1-666-268-11 VOL SEL BOARD (E)
119 3-831-441-99 CUSHION, SPEAKER
ANT1 1-501-918-11 ANTENNA, TELESCOPIC
! F901 1-532-467-51 FUSE, TIME LAG (T0.315AL/250V) (E)
! F902 1-532-464-31 FUSE, TIME LAG (T2.5AL/250V) (AEP,IT,E,SP)
! F902 1-533-618-11 FUSE, GLASS CYLINDERICAL (3.15A/250V)
(US,CND,C&SA)
LCD801 1-801-592-11 LCD
! T901 1-427-943-11 TRANSFORMER, POWER (AEP,IT,SP)
! T901 1-429-101-11 TRANSFORMER, POWER (US, CND,C&SA)
! T901 1-429-122-11 TRANSFORMER, POWER (E)

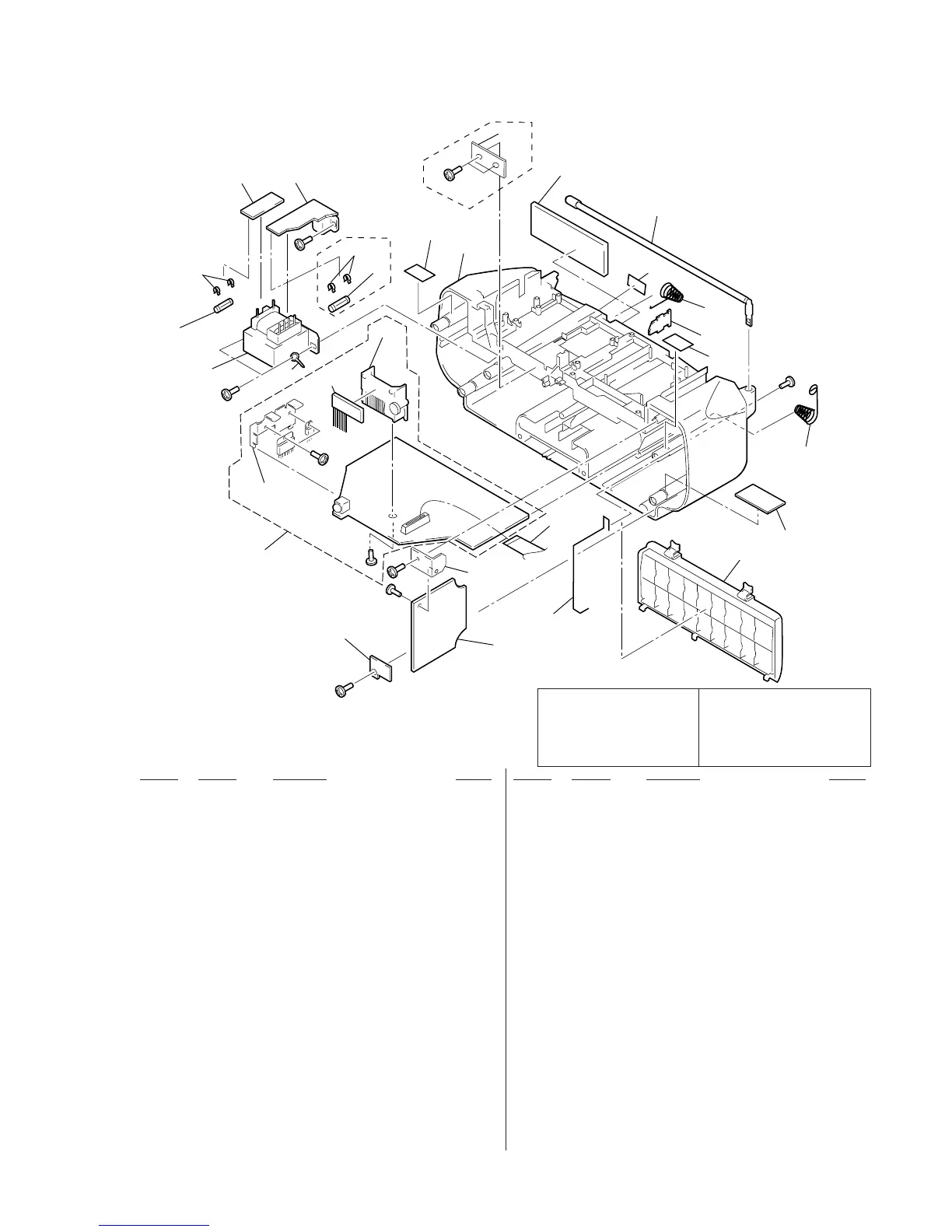

7-3. REAR CABINET SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
117
113
not supplied
#1
#1
#1
#7
#1
#1
#1
#3
ANT1
F902
T901
LCD801
101
102
103
104
105
106
107
108
109
119
110
111
112
115
114
not supplied
not supplied
116
116
#1
118
E Model
E Model
F901
103
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour
la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
