TABLE OF CONTENTS
Section Title Page
SpecilicaHons is 4 diecihece 2:4 OHS Aes He Ewe ers 1
Safety Check-out (US Model) .................. 2
Parts 1d@ntilication: 66-64 -d-6 Ys BO oa oe. eR Eee 3
SECTION 1 ADJUSTMENTS
1-1. Mechanical Adjustments ................. 4
1-2. Tape Recorder Section Electrical
AGUSIINICN(S: 6.04.4. 45. fawkes o-o% ee cee oes 6
1-3. Radio Section Electrical Adjustments ......... 8
SECTION 2 DIAGRAMS
2-1. Mounting Diagram ~ Main Section........... 11
2-2. Schematic Diagram — Main Section .......... 15
2-3. Mounting Diagram — Tuner Section .......... 18
2-4. Schematic Diagram — Tuner Section ......... 19
SECTION 3 EXPLODED VIEWS AND
PARTS LIST ................06. 21
SECTION 4 ELECTRICAL PARTS LIST......... 25

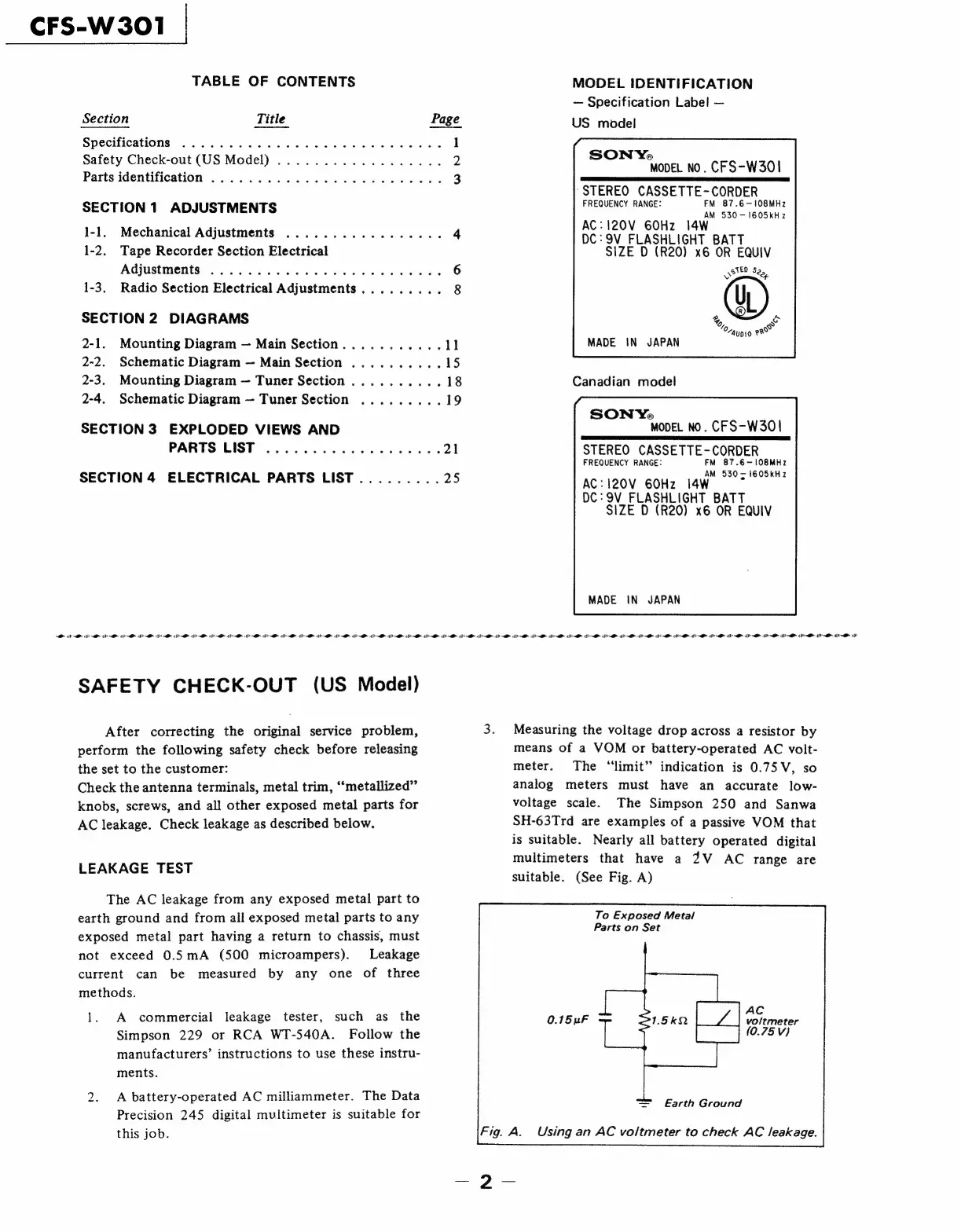

SAFETY CHECK-OUT (US Model)
After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:
Check the antenna terminals, metal trim, “‘metallized”
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5mA (500 microampers). Leakage
current can be measured by any one of three
methods.
1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers’ instructions to use these instru-
ments.
tO
A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.
MODEL IDENTIFICATION
— Specification Label —
US model
SON Yo
MODEL NO. CFS-W301
“STEREO CASSETTE-CORDER
FREQUENCY RANGE: FM 87.6—108MH2z
AM 530 - 1605kHz
AC: 120V 6OHz l4W
DC: 9V FLASHLIGHT BATT
SIZE D (R20) x6 OR EQUIV
So
MADE IN JAPAN
Canadian model
SON Yo
MODEL NO. CFS-W301
STEREO CASSETTE-CORDER
FREQUENCY RANGE: FM 87.6-108MHz
AM 530 = 1605kH2
AC: 120V 60Hz l4W
DC: 9V FLASHLIGHT BATT
SIZE D (R20) x6 OR EQUIV
MADE IN JAPAN
PA 1 LA A A A A LR A A NN at A A 1 A A A A A A A NR RR BR I I a NR
3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The “limit” indication is 0.75 V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are
suitable. (See Fig. A)
To Exposed Metal
Parts on Set
AC
voltmeter
ea (0.75 V)
= Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
