Sony CFS-W301 User Manual

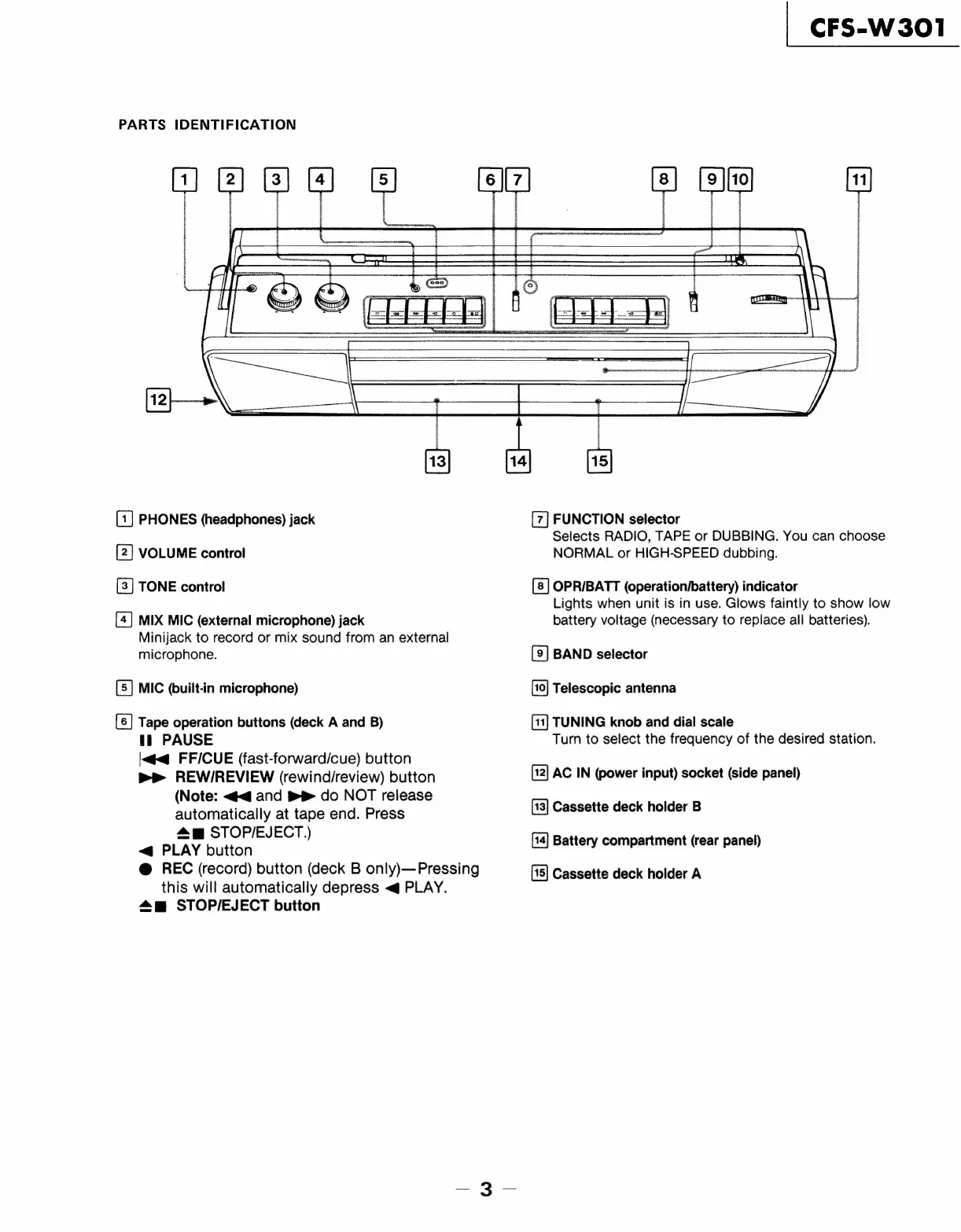

PARTS IDENTIFICATION
| CFS-W301
Wee
WAOLLLLOLULY PLEA LO DAALODIL LEE
2 ©
g %
c1cercacaces dba pea enn denuLcpernnnsecenUnéntaepetAteaete
"CAAA AULLHUA ALU AL MLAS ALA ELOY
[1] PHONES (headphones) jack
[2] VOLUME control
[3] TONE control
[4] MIX MIC (external microphone) jack
Minijack to record or mix sound from an external
microphone.
[5] MIC (built-in microphone)
[6] Tape operation buttons (deck A and B)
if PAUSE
<q FF/CUE (fast-forward/cue) button
be REW/REVIEW (rewind/review) button
(Note: <q and Be do NOT release
automatically at tape end. Press
“mg STOP/EJECT.)
<@ PLAY button
@ REC (record) button (deck B only)—Pressing
this will automatically depress <q PLAY.
“mg STOP/EJECT button
FUNCTION selector
Selects RADIO, TAPE or DUBBING. You can choose
NORMAL or HIGH-SPEED dubbing.
OPRIBATT (operation/battery) indicator
Lights when unit is in use. Glows faintly to show low
battery voltage (necessary to replace all batteries).
[9] BAND selector
Telescopic antenna
[13] TUNING knob and dial scale
Turn to select the frequency of the desired station.
[12] AC IN (power input) socket (side panel)
{13] Cassette deck holder B
Battery compartment (rear panel)
[15] Cassette deck holder A
