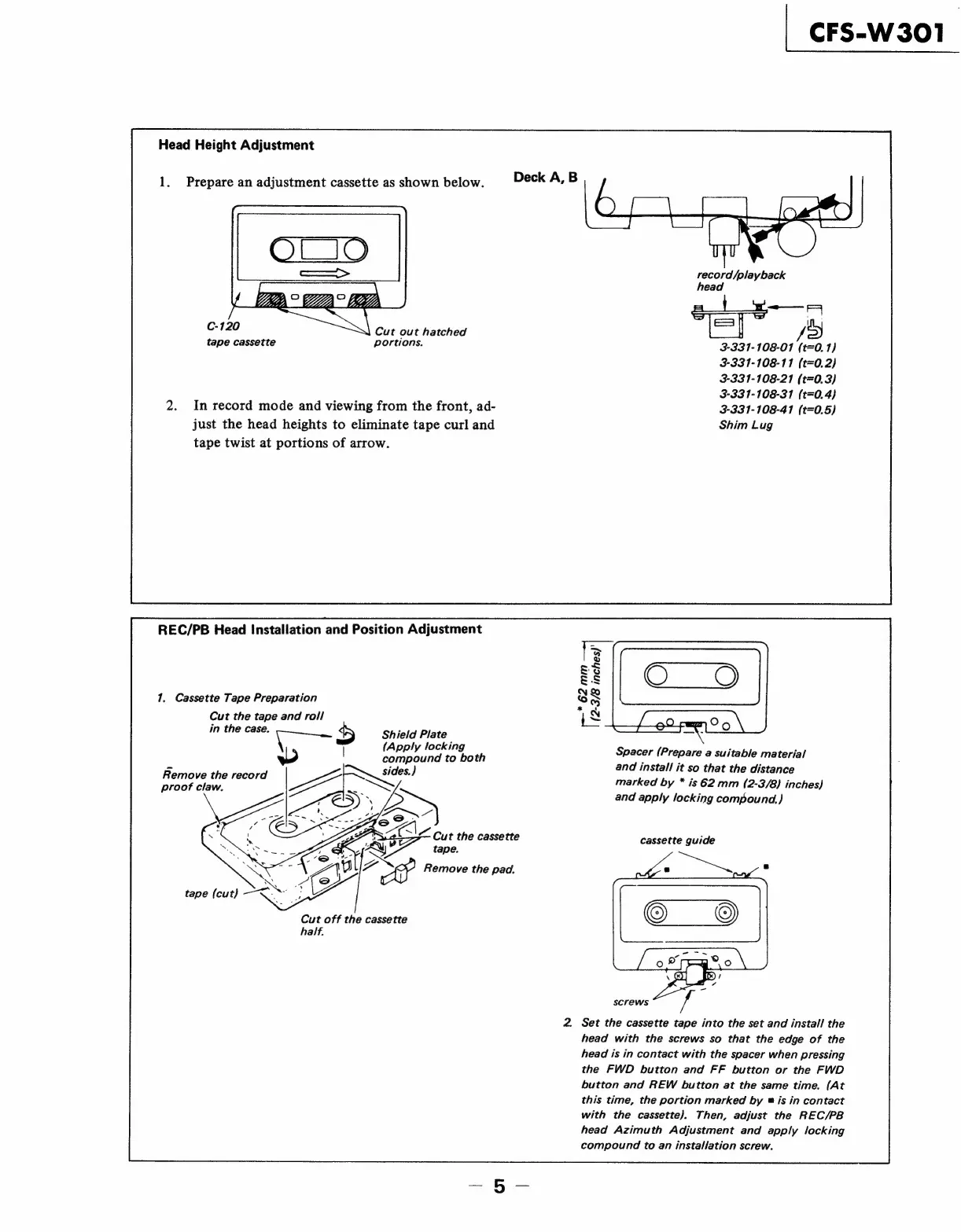

Head Height Adjustment
Prepare an adjustment cassette as shown below.
Cut out hatched
tape cassette portions.
2. In record mode and viewing from the front, ad-
just the head heights to eliminate tape curl and
tape twist at portions of arrow.
REC/PB Head Installation and Position Adjustment
1. Cassette Tape Preparation
Cut the tape and roll
(Apply locking
in the case. c= ‘>
we | compound to both
a oo
Zs, ;
Shield Plate
Remove the record
proof claw.
’ ,
Sf
Cut off the cassette
half.
Deck A, B
CFS-W301
record /playback
head
!
| 5)
3-331-108-01 fort 1)
3-331-108-11 (t=0,2)
3-331-108-21 (t=0.3)
3-331-108-31 (t=0.4)
3-331-108-4171 (t=0.5)
Shim Lug
| 2
@
<
N &
© 65
2.
Spacer (Prepare a suitable material
and
install
it
so
that
the
distance
marked
by
*
is
62
mm
(2-3/8)
inches}
and
apply
locking
compound.)
cassette guide
screws
Set the cassette tape into the set and install the
head with the screws so that the edge of the
head is in contact with the spacer when pressing
the FWD button and FF button or the FWD
button and REW button at the same time. (At
this time, the portion marked by & is in contact
with the cassette). Then, adjust the REC/PB
head Azimuth Adjustment and apply locking
compound to an installation screw.
