Sony Cyber-shot DSC-H5 Service Manual

1-1
DSC-H5_L2
Note : After repair, be sure to execute the “Initialize” of the setup screen.
Self-diagnosis display
• C: ss: ss
The contents which can be handled
by customer, are displayed.
• E: ss: ss
The contents which can be handled
by engineer, are displayed.

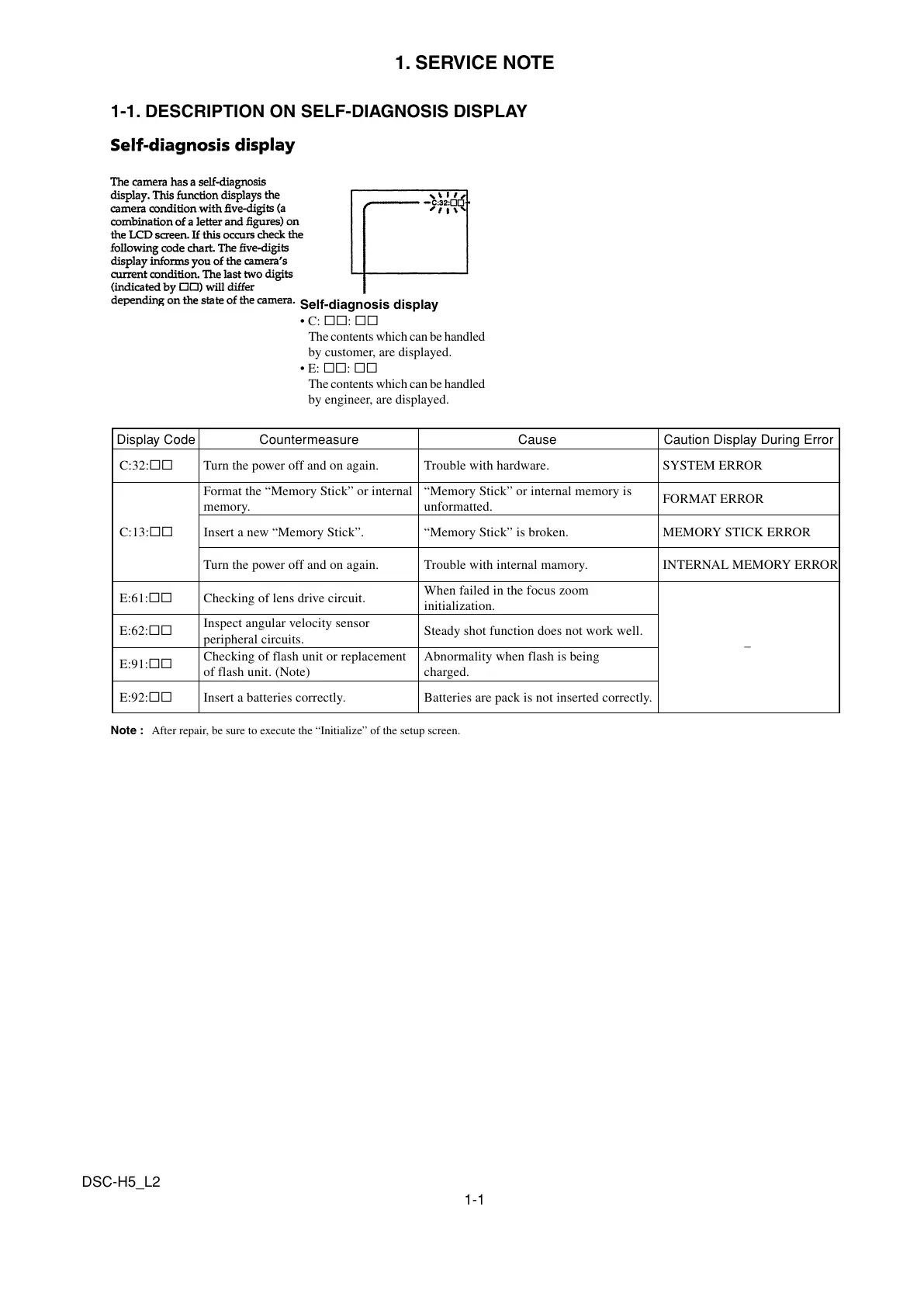

1. SERVICE NOTE
1-1. DESCRIPTION ON SELF-DIAGNOSIS DISPLAY
Display Code
C:32:ss
C:13:ss
Countermeasure
Turn the power off and on again.
Format the “Memory Stick” or internal
memory.
Insert a new “Memory Stick”.
Cause
Trouble with hardware.
“Memory Stick” or internal memory is
unformatted.
“Memory Stick” is broken.
Caution Display During Error
SYSTEM ERROR
FORMAT ERROR
MEMORY STICK ERROR
E:61:ss
E:91:ss
Checking of lens drive circuit.
Checking of flash unit or replacement
of flash unit. (Note)
Abnormality when flash is being
charged.
Batteries are pack is not inserted correctly.Insert a batteries correctly.
Trouble with internal mamory.Turn the power off and on again.
When failed in the focus zoom
initialization.
INTERNAL MEMORY ERROR
E:92:ss
_
E:62:ss
Inspect angular velocity sensor
peripheral circuits.
Steady shot function does not work well.

Sony Cyber-shot DSC-H5 Specifications

General

Sensor Resolution	7.2 megapixels
Optical Zoom	12x
Digital Zoom	2x
LCD Screen Size	3.0 inches
Image Stabilization	Optical
ISO Sensitivity	80 - 1000
Camera Type	Compact
Sensor Size	1/2.5 inch
Maximum Shutter Speed	1/2000 sec
Minimum Shutter Speed	30 sec
Sensor Type	CCD
Focal Length	36 - 432 mm (35mm equivalent)
Aperture Range	f/2.8 - f/3.7
LCD Screen Resolution	230, 000 pixels
Storage Media	Memory Stick Duo / Pro Duo
Video Recording	640x480 @ 30fps
Battery Type	NP-BG1 Lithium-Ion
