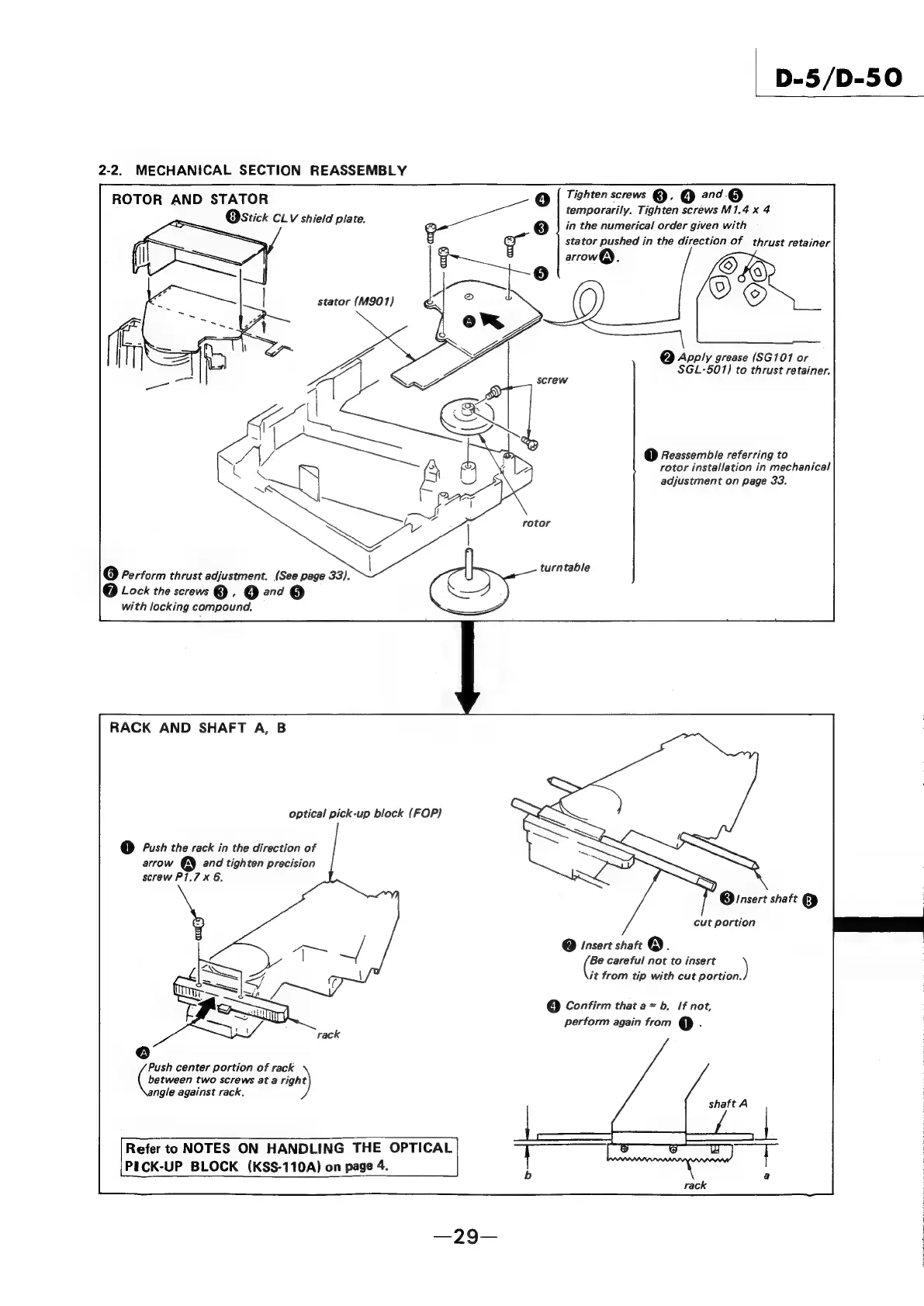

2-2. MECHANICAL SECTION REASSEMBLY
Tighten screws @. @ and zt 5)
TATOR
ROTOR AND § 3) Stick ; 9 temporarily. Tighten screws M1.4 x 4
tick CLV shield plate. 6 in the numerical order given with
kh
stator pushed in the direction of thrust retainer
stator (M901)
@ Apply grease (SG101 or
SGL-501) to thrust retainer.
@ Reassemble referring to
rotor installation in mechanical
adjustment on page 33.
turntable
6 Perform thrust adjustment. (See page 33).
@ Lock the screws 0. Oa7@O
with locking compound.
RACK AND SHAFT A, B
optical pick-up block (FOP)
@ Push the rack in the direction of
arrow ® and tighten precision
screw P1,7 x 6.
Oinsert shaft 8 ]
cut portion
@ Insert shaft ®.
Be careful not to insert )
it from tip with cut portion.
© Confirm that a= b, If not,
perform again from @ .
Push center portion of rack
between two screws at a rat
ingle against rack,
Refer to NOTES ON HANDLING THE OPTICAL Sane
PICK-UP BLOCK (KSS-110A) on page 4.
