Sony D-5 - Page 34

13 14
15
16
17
18
19
20
21
22
23 24 25 26
27 28

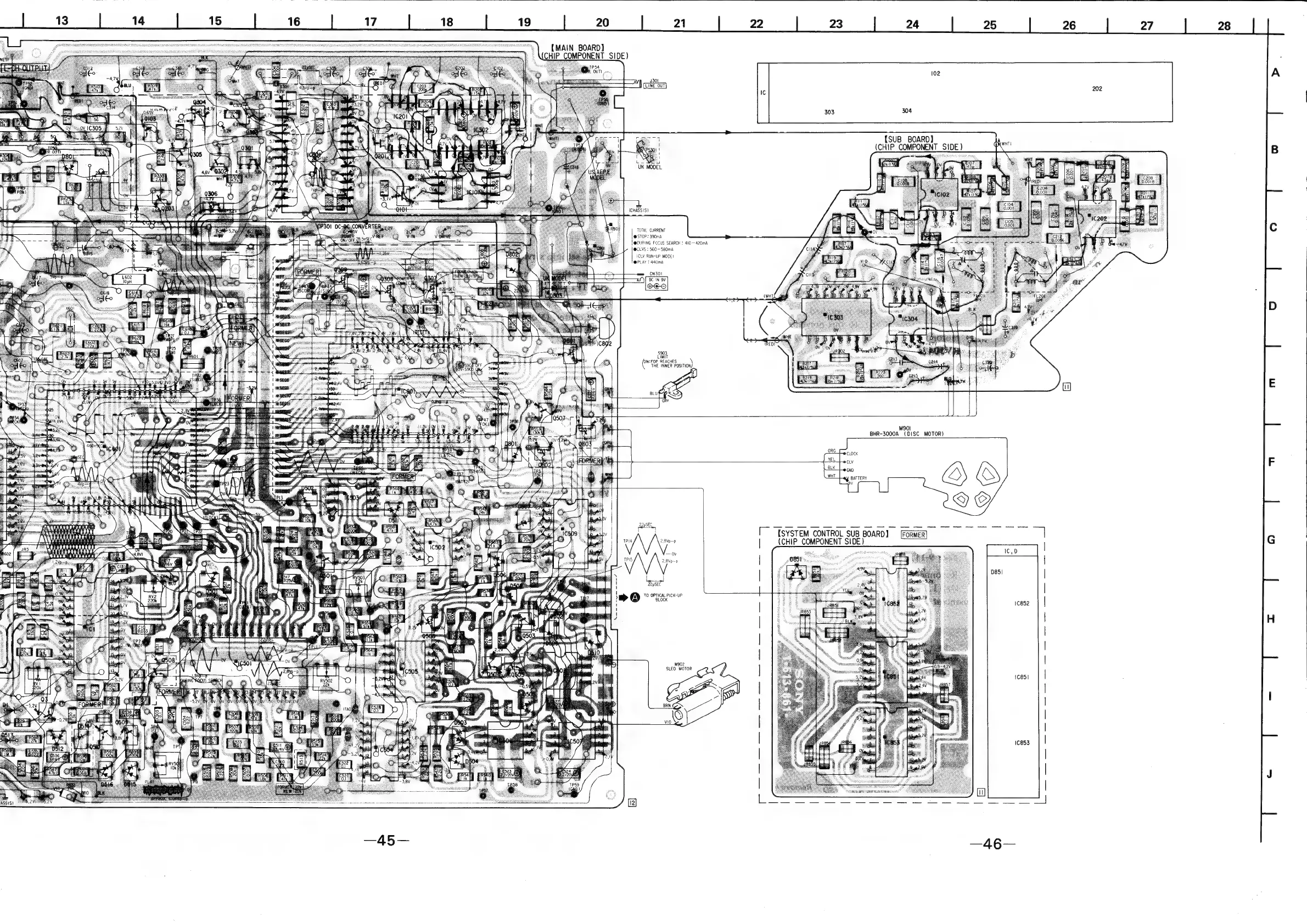

[MAIN BOARD)
CHIP_ COMPONENT SIDE)
(SUB BOARD]
(CHIP COMPONENT SIDE)
(CHASS!S)
j TOTAL CURRENT
@ STOP: 390mA
@ DURING FOCUS SEARCH : 410 ~420mA
@CLVS : 560 -580mA
(CLV RUN-UP MODE!
@PLAY 2 440ma,
S903
LIMIT
ON: FOP REACHES
THE INNER POSITION,
{SYSTEM CONTROL SUB BOARD] [Former
(CHIP COMPONENT SIDE)
M302
SLED MOTOR
BRN 6 }
VIO
