Sony D-E330 - 6 Exploded Views; Cabinet Section

16
D-E330/E331
SECTION 6
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.

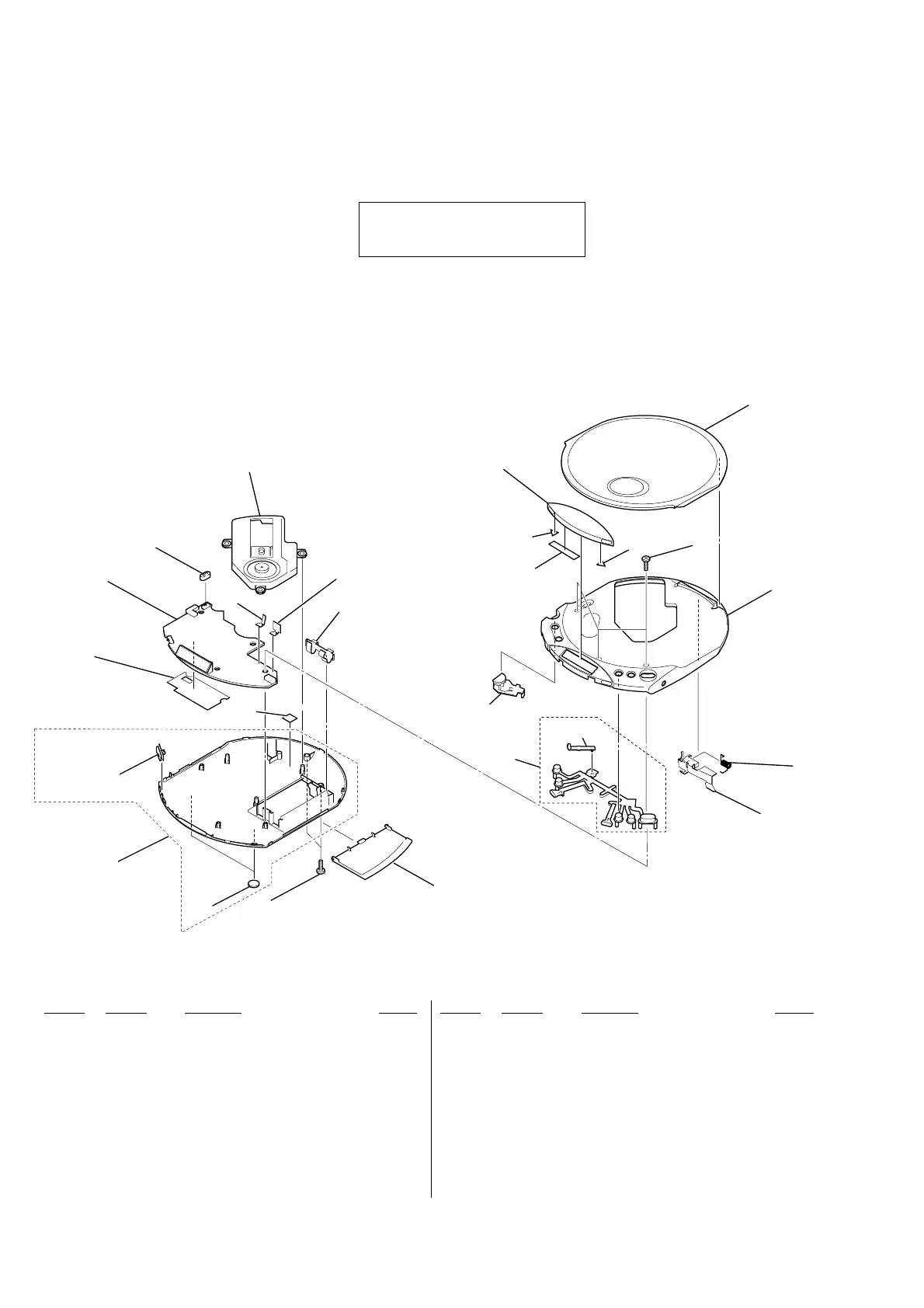

6-1. CABINET SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 3-336-395-01 SCREW (B2X10) (G), TAPPING
2 4-974-607-21 FOOT, RUBBER
3 X-3379-859-4 CABINET (REAR) ASSY
* 5 A-3021-696-A MAIN BOARD, COMPLETE
6 3-232-612-11 KNOB (JOGGABLE)
7 3-231-411-01 TERMINAL (-), BATTERY
8 3-222-860-01 TERMINAL (+.-), BATTERY
9 3-234-414-01 TERMINAL (LINK), BATTERY
11 3-047-194-01 SHEET (CDM), ADHESIVE
12 3-231-620-01 BUTTON (OPEN)
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
5
6
7
9
8
CDM-3125ER
not supplid
not supplid
not supplid
11
3
1
20
18
2
17
16
13
21
14
15
1
12
22
21
13 3-222-853-21 WINDOW (LCD)
14 X-3381-931-1 LID ASSY, UPPER (E330)
14 X-3381-932-1 LID ASSY, UPPER (E331)
15 3-231-621-61 CABINET (FRONT)
16 3-222-862-01 SPRING (TORSION)
17 3-231-469-01 PLATE, SUPPORT
18 3-241-054-01 BUTTON (OPERATE)
20 3-222-856-12 LID, BATTERY CASE
21 3-226-948-01 SHEET(2)(LCD WINDOW), ADHESIVE
22 3-222-863-12 SHEET(1)(LCD WINDOW), ADHESIVE
