Sony D-NE830 - Page 34

44
D-NE730/NE730LS/NE830/NE830LS
D-NE730/NE730LS/NE830/NE830LS

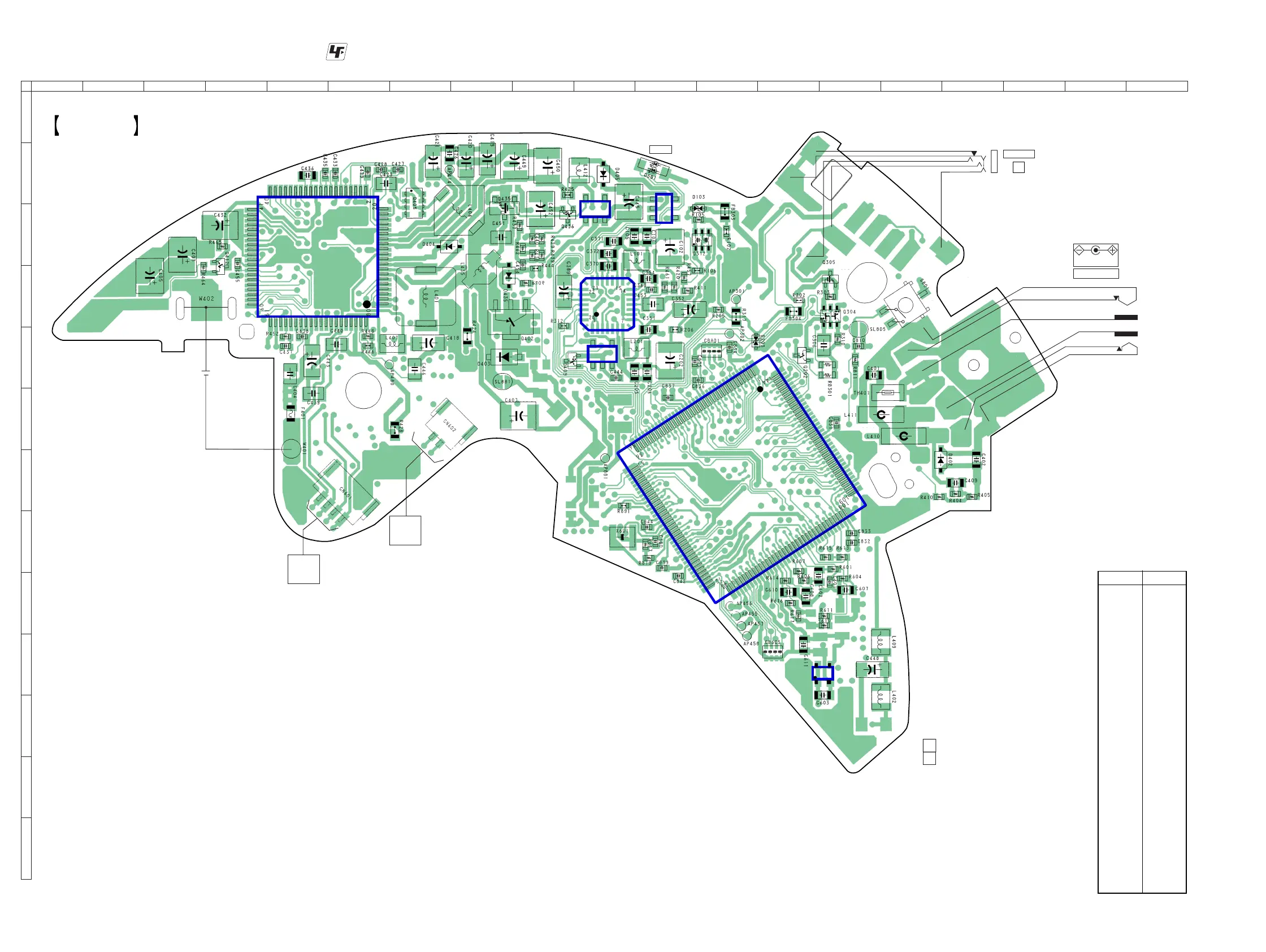

PRINTED WIRING BOARD – MAIN BOARD (SIDE A) –
:Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D103 B-11
D203 E-13
D402 G-16
D403 E-8
D404 C-7
D405 B-10
D435 D-8
D501 B-11
IC301 D-10
IC401 C-5
IC404 E-9
IC405 B-11
IC435 C-10
IC603 J-13
IC801 G-12
Q202 F-13
Q304 D-14
Q305 C-14
Q312 C-11
Q402 E-8
Q405 C-7
Q409 E-9
Q412 C-4
Q435 B-8
Q436 C-9
Q412 C-3
Q435 B-6
Q436 B-7
IC401
IC435
IC405
IC301
IC404
IC801
IC603
RECHARGEABLE
BATTERY
NH-10WM(D-NE730/NE730LS)
1.2V 900mAh
NH-14WM(D-NE830/NE830LS)
1.2V 1350mAh
M901
SPINDLE
MOTOR
M902
SLED
MOTOR
LINE OUT
J301
J401
DC IN 3V
EXT BATT(OPEN/CLOSE)
2
OPR
1
1
3
5
4
3
54
13
54
(21)
1-868-394-
21
12
43
1
A
B
C
D
E
F
G
H
I
J
K
L
M
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
MAIN BOARD (SIDE A)
