Sony D-V7000 - DISASSEMBLY; Lid Block Assembly, Upper Removal

– 6 –

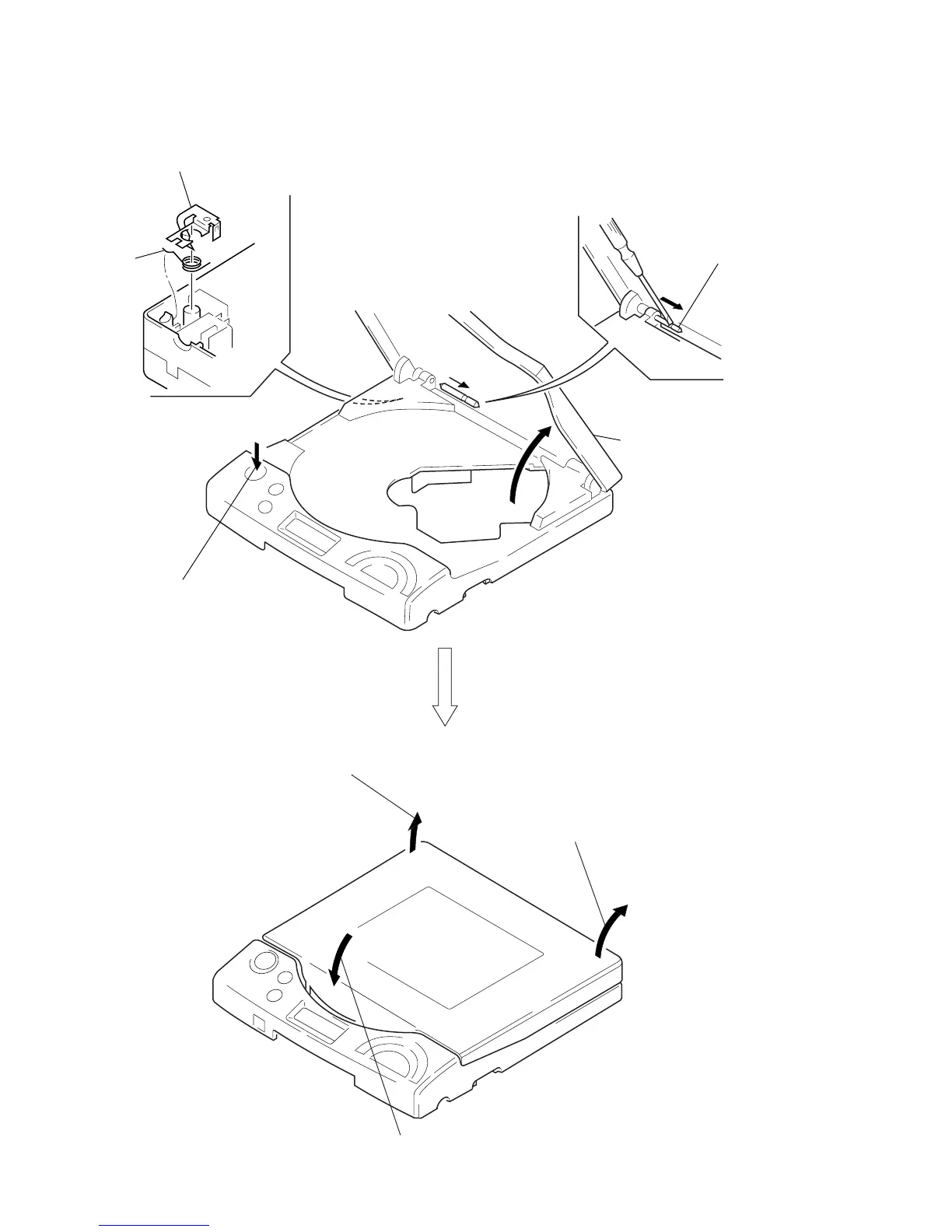

3-2. LID BLOCK ASSY, UPPER
1 spring (lock)
2 spring
(open)
3 Push the open button.
4 Open the “lid block assy, upper”.
5 shaft
7 Pull up the “lid block assy, upper”
to direction of arrow
B .
8 Remove the “lid block assy, upper
”
to direction of arrow C .
6 Close the “lid block assy, upper”
to direction of arrow
A .
B
C
A
