For more information, refer to the pages indicated in parentheses.

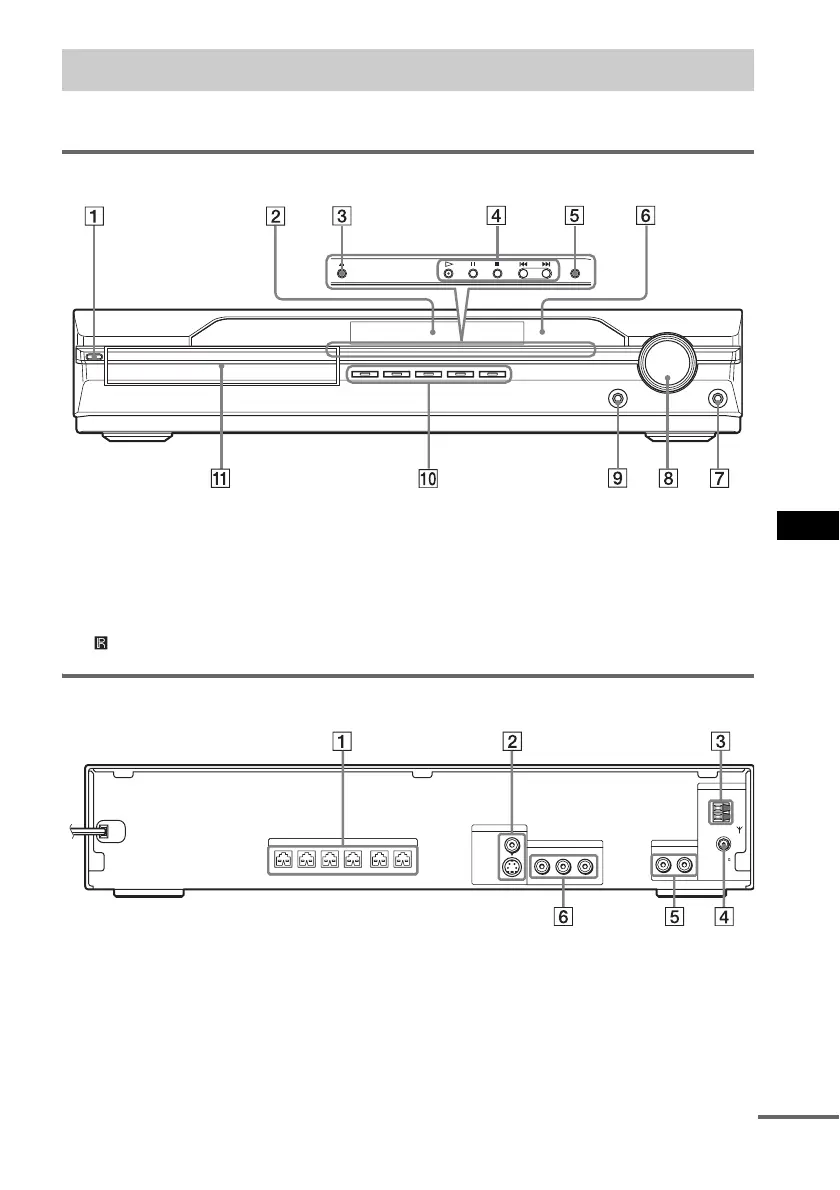

Front panel
A "/1 (on/standby) (29)
B Front panel display (92)
C A (open/close) (29)
D Disc operation (29)
E FUNCTION (29)
F (remote sensor) (9)
G PHONES jack (29)
H VOLUME control (29)
I AUDIO IN/A.CAL MIC jack (19, 31)
J DISC 1-5 (29)
K Disc tray (29)
Rear panel
A SPEAKER jacks (13)
B MONITOR OUT (S VIDEO/VIDEO) jacks
(24)
C AM terminal (13)
D COAXIAL FM 75Ω jack (13)
E TV/VCR (AUDIO IN R/L) jacks (27)
F COMPONENT VIDEO OUT jacks (24)
Index to Parts and Controls
COAXIAL
AM
FM
75
SPEAKER
FRONT R FRONT L SUR R SUR LCENTER WOOFER
COMPONENT VIDEO OUT
TV/VCR
MONITOR OUT
ANTENNA
(DVD ONLY)
YPB/CB PR/CR
RLAUDIO IN
VIDEO
(DVD ONLY)
S VIDEO
