37
US
Getting Started
DAV-HDX578W/DAV-HDX678WF/DAV-HDX975WF
Note
• Keep the AM loop antenna (aerial) and cord away from the system or other AV components, as noise may result.
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
Ti
• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM
antenna (aerial) as shown below.
CENTER SUBWOOFER
DIGITAL IN
COAXIAL 75
AM
FM
P
B
/C
B
P
R
/C
R
AUDIO INYRL
COAXIAL OPTICAL
COMPONENT VIDEO OUT
TV
DMPORT
TV
SPEAKER
AUDIO INRL
SAT/CABLE
ANTENNA
HDMI OUT
EZW-RT10
FRONT R FRONT L
SPEAKER
VIDEO
OUT
DC5V
0.7A MAX
C
O
A
X
IA
L
7
5
F
M
A
N
TE
N
N
A
A
B

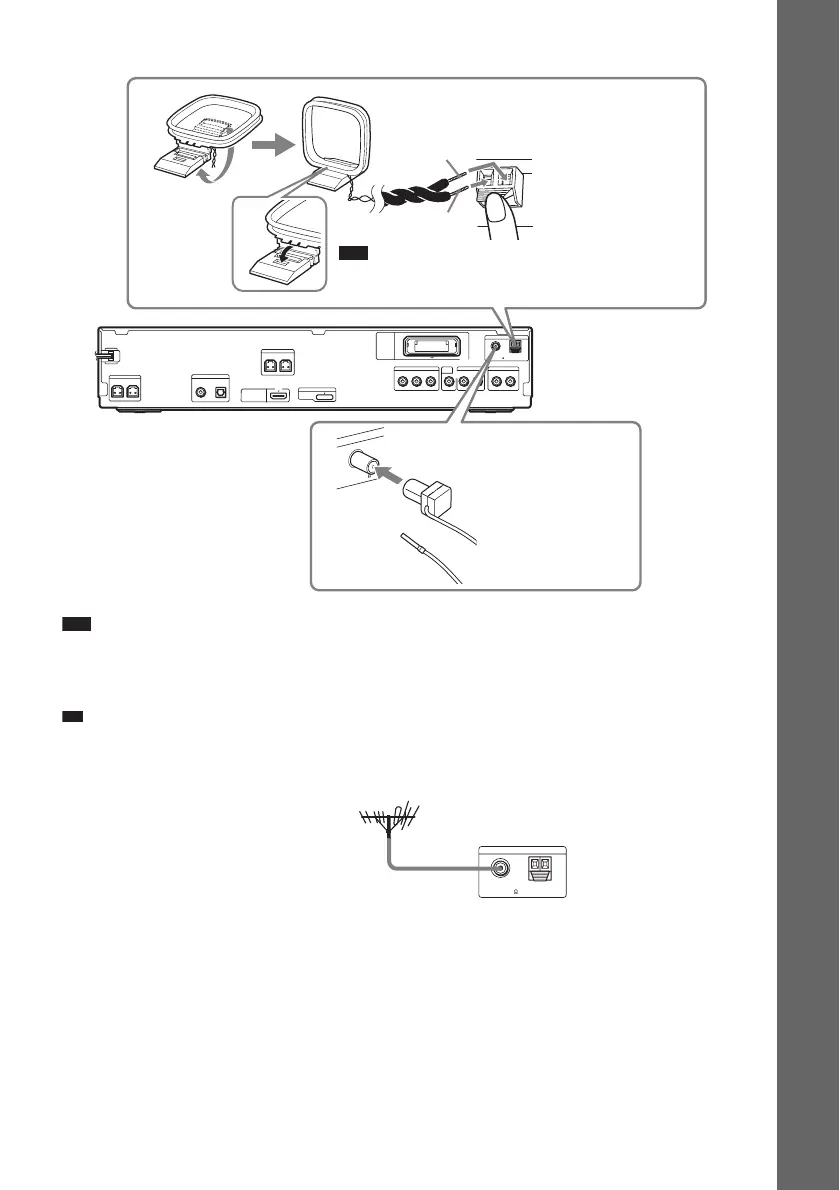

Rear panel
AM loop antenna (aerial)
(supplied)
FM wire antenna (aerial)
(supplied)
or
Note
• Cord (A) or cord (B) can be connected to either terminal.
COAXIAL 75
AM
FM
ANTENNA
Outdoor FM antenna (aerial)
Unit
To Next Page
