You can enjoy sound using the speakers of this system by connecting the AUDIO OUT jacks of another
component. For video connection of other components, connect directly to the TV.
To connect the AUDIO OUT jacks of other components to the TV/VIDEO
(AUDIO IN) jacks of this unit

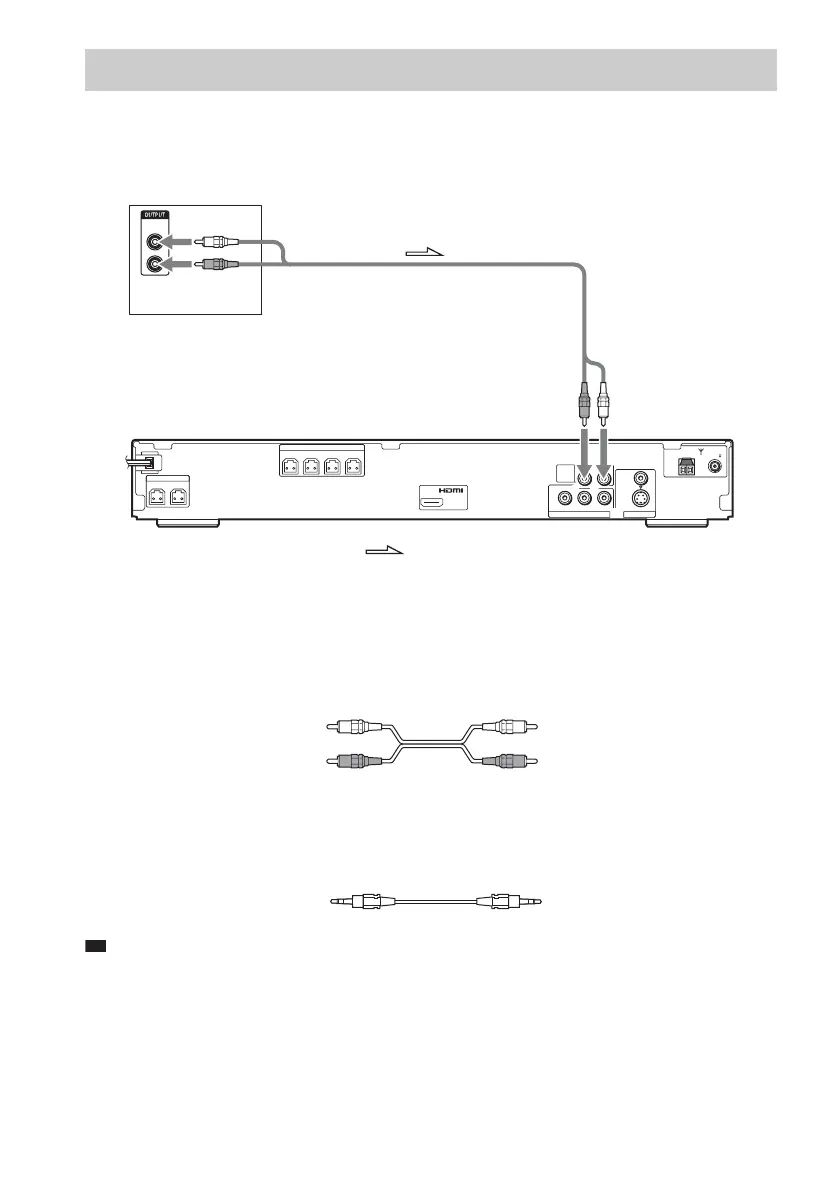

Connect the VCR or other components to the TV/VIDEO (AUDIO IN) jacks using the audio cord (not
supplied). When connecting a cord, be sure to match the color-coded sleeves to the appropriate jacks
on the components.
To listen to the portable audio source sound through the system
Connect the audio output jacks of the portable audio source to the AUDIO IN jack on the front panel
of the unit with the stereo mini-plug cord (not supplied).
Ti
p
• When listening to MP3 format recordings using a portable audio source, you can enhance the sound.
Press FUNCTION to select “AUDIO.” Connect the portable audio source. Press SOUND FIELD repeatedly until
“A.F.D. STD” appears in the front panel display.
To cancel, select other than “A.F.D. STD.”
Connecting Other Components
R
AUDIO
OUT
L
COAXIAL
AM
FM75
(DVD ONLY)
OUT
FRONT R
CENTER WOOFER
FRONT L SUR R SUR L
SPEAKER
SPEAKER
TV /
VIDEO
MONITOR OUTCOMPONENT VIDEO OUT
RLAUDIO IN
(DVD ONLY)
YP B /C B P R /C R
VIDEO
(DVD ONLY)
S VIDEO
VCR, digital satellite receiver
or PlayStation, etc.
To TV/VIDEO
(AUDIO IN)
:Signal flow
White (L/audio)
Red (R/audio)

Sony DAV-HDZ235 Specifications

Audio Output

total audio power output	850 W
center speaker audio power output	142 W
front speaker audio power output	142 W x 2
subwoofer speaker audio power output	140 W
surround speaker audio power output	142 W x 2

Audio Specifications

digital-to-analog converter (video)	108 MHz/12 bit
digital-to-analog converter (audio)	48 kHz/24 bit
impedance (front speaker)	3 ohm
impedance (center speaker)	3 ohm
impedance (surround speaker)	3 ohm
impedance (subwoofer speaker)	3 ohm

Speaker Specifications

front speaker woofer size	6.5 cm
center speaker unit size	6.5 cm
surround speaker unit size	6.5 cm
subwoofer speaker unit size	16 cm

Cord Length

front speaker cord length	4.5 m x 2
center speaker cord length	3 m x 1
surround speaker cord length	12 m x 2
subwoofer cord length	3.5 m x 1

Weight and Dimensions

amplifier weight	11 lbs 8 oz (5.2 kg)
center speaker weight	1 lb 9 oz (0.7 kg)
front speaker weight	1 lb 9 oz (0.7 kg)
subwoofer weight	14 lbs 5 oz (6.5 kg)
surround speaker weight	1 lb 5 oz (0.6 kg)
amplifier dimensions	430 x 86 x 415 mm
center speaker dimensions	261 x 91 x 80 mm
front speaker dimensions	93 x 221 x 75 mm
subwoofer dimensions	220 x 394 x 350 mm
surround speaker dimensions	93 x 162 x 75 mm
