DCR-PC109/PC109E
4-21
FP-467/FP-228/FP-826
For Schematic Diagram
• Refer to page 4-77 for flexible wiring board.

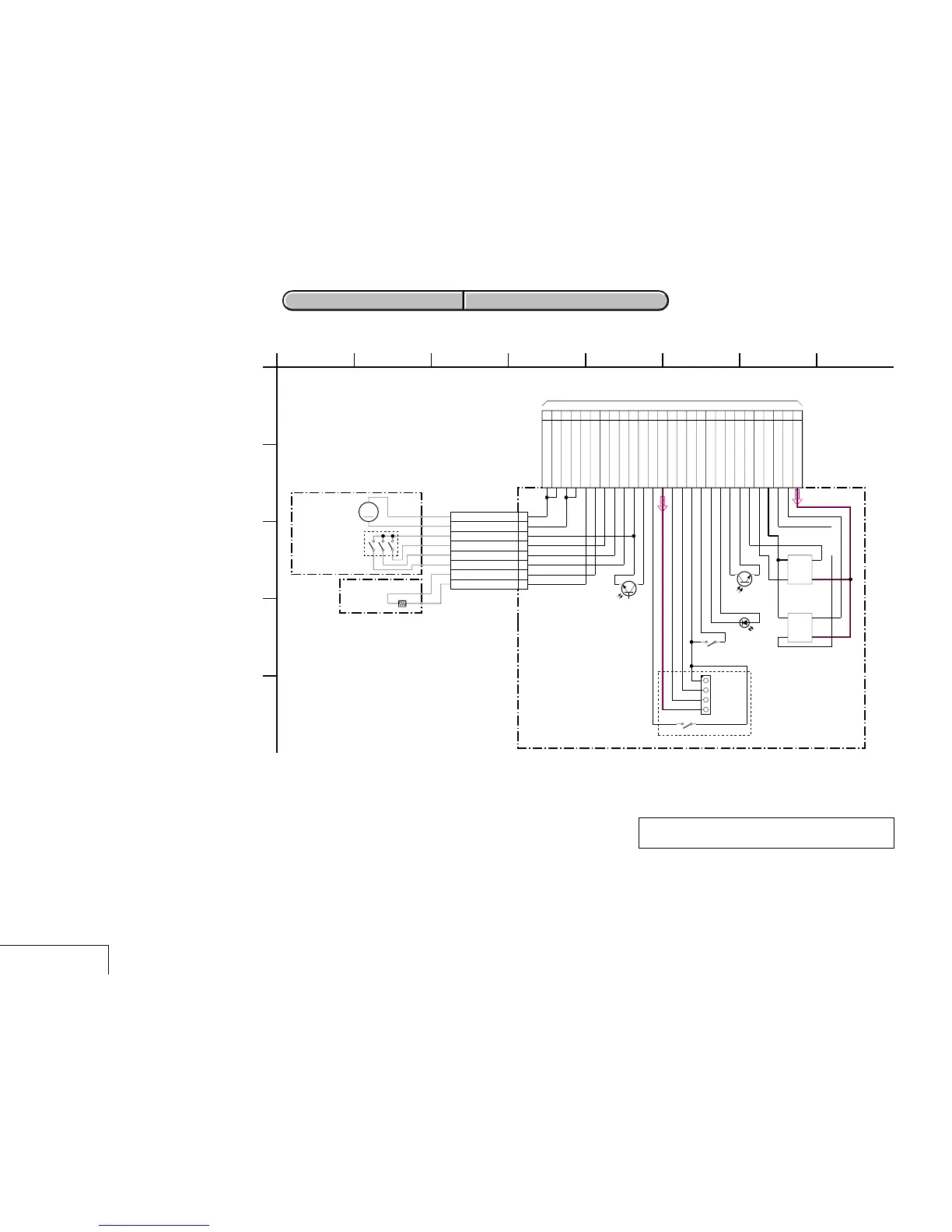

4-2. SCHEMATIC DIAGRAMS FP-467/FP-228/FP-826 FLEXIBLE BOARD
4-2. SCHEMATIC DIAGRAMS FP-467/FP-228/FP-826 FLEXIBLE BOARD
4-22
Schematic diagram of the VC-352 board are not shown.
Pages from 4-23 to 4-64 are not shown.
27P
1LM_LOAD 2LM_LOAD 3LM_UNLOAD 4LM_UNLOAD 5DEW+ 6DEW- 7XMODE_SW_A 8XMODE_SW_B 9XMODE_SW_C
10MODE_SW_COM/SW_GND 11TAPE_TOP 12XREC_PROOF 13CHIME_VDD 14CHIME_SDA 15CHIME_SCK 16
MIC/REC_SW_GND/
XCCDOWN_SW_GND
17XCCDOWN_SW 18TAPE_LED_K 19TAPE_LED_A 20TAPE_END 21END_GND 22SREEL+ 23SREEL- 24HALL_GND 25TREEL- 26TREEL+ 27HALL_VCC
8P
1LM_LOAD
2LM_UNLOAD
3MODE_SW_COM
4XMODE_SW_A
5XMODE_SW_B
6XMODE_SW_C
7DEW-
8DEW+
DEW
SENSOR
D901
M
S903
Q901
Q902
(4PIN
CONNECTOR)
MIC902
S902
1
A
G
-
+
Vcc
G
-
+
Vcc
TAPE END
SENSOR
(TAPE LED)
(CC DOWN)
(REC PROOF)
TAPE TOP
SENSOR
H901
S REEL
SENSOR
H902
T REEL
SENSOR
MODE
SWITCH
M902
LOADING
MOTOR
FP-467
FLEXIBLE
FP-228
FLEXIBLE
FP-826
FLEXIBLE
(PAGE 4-45 of LEVEL3)
TO VC-352 BOARD(12/21)
CN9102
16
25
E
34
C
D
B
876
