5-3
DCR-PC109/PC109E
5-1. EXPLODED VIEWS
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

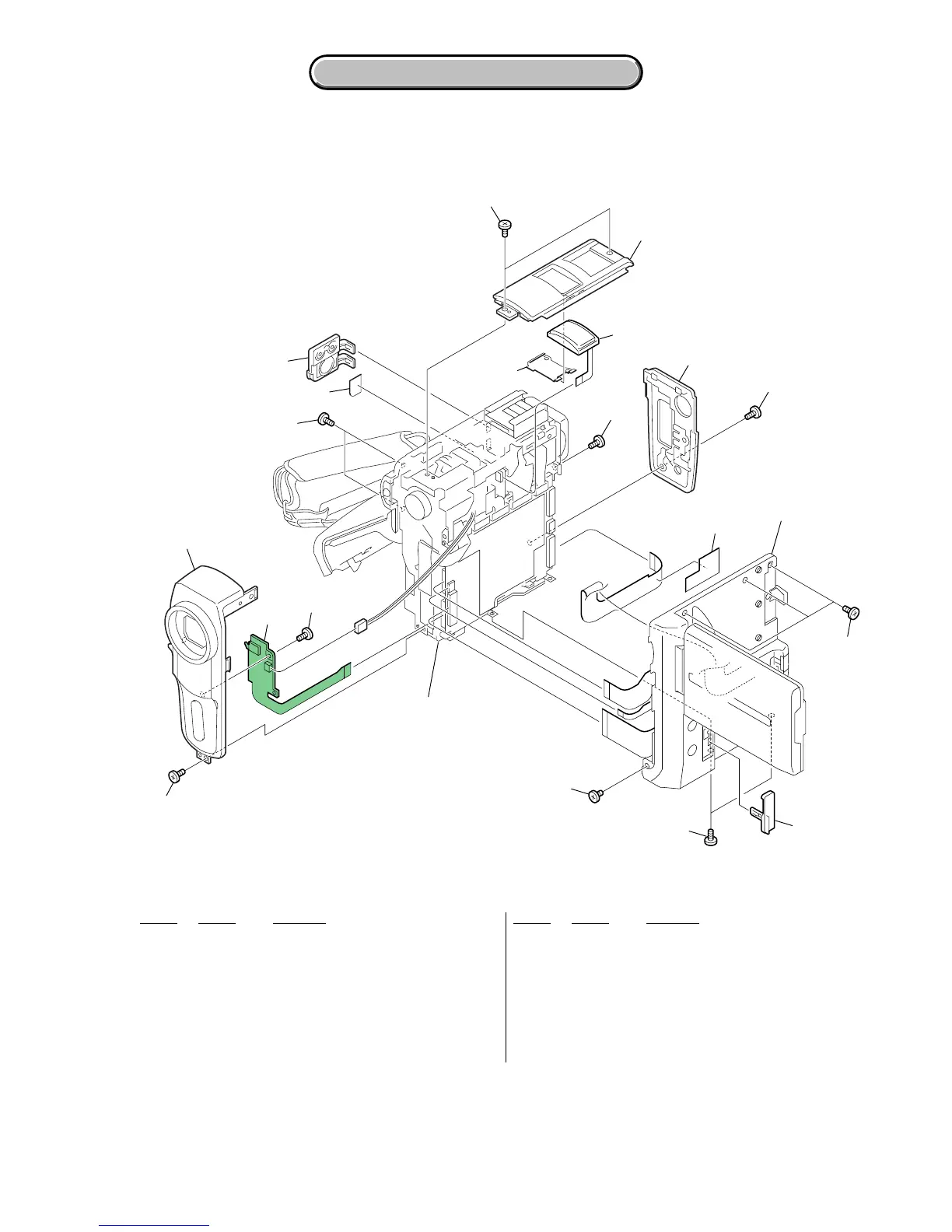

5-1-1. OVERALL SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
1 3-989-735-01 SCREW (M1.7), LOCK ACE, P2
2 X-3954-129-1 PANEL ASSY (G), FRONT
3 A-7112-500-A FP-840 BOARD, COMPLETE
4 3-080-204-01 SCREW, TAPPING, P2
5 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
6 3-089-561-01 SHEET, JACK (PC109:J)
6 3-089-561-11 SHEET, JACK
(PC109:US,CND,E,HK,KR,JE/PC109E)
7 3-090-134-01 COVER (L), JACK
8 X-3954-423-2 CABINET (UPPER) (G) ASSY
9 X-3954-135-1 PANEL ASSY, REAR (PC109:J)
9 X-3954-248-1 PANEL ASSY, REAR
(PC109:US,CND,E,HK,KR,JE/PC109E)
10 3-089-941-02 COVER, DCIN
11 3-091-704-01 SHEET, ADHESIVE, BT FLEXIBLE
MIC901 1-542-574-11 MICROPHONE UNIT (MEGA)
1
4
3
1
5
11
5
10
MIC901
ns
2
5
7
6
8
1
9
5
5
Main chassis (lens) section
(See page 5-4)
Cabinet (R) section-1
(See page 5-7)
