5-5
REF. No. Part No. Description Remark
REF. No. Part No. Description Remark
701 3-728-103-11 SCREW (M1.4X1.6), SPECIAL HEAD
702 X-3748-610-2 COMPARTMENT ASSY, CASSETTE
703 3-748-703-01 COLLAR
704 3-748-700-02 SLIDER, LOCK
705 3-748-701-01 SPRING, TENSION
706 X-3748-613-3 BASE ASSY, LED
707 3-704-197-21 SCREW (M1.4x2.5), LOCKING
708 3-748-683-01 HOLDER, LED
709 3-315-414-31 WASHER
710 X-3748-609-2 GOOSENECK ASSY
711 3-748-736-01 GEAR, RELAY
712 3-748-702-02 SLIDER, CAM
713 3-703-816-74 SCREW (M1.4X4.5), SPECIAL HEAD
714 X-3944-897-2 FPC ASSY, MOTOR
715 1-770-363-11 ELASTIC CONNECTOR
716 A-7026-009-B SCREW ASSY, DRUM FITTING
717 A-7026-022-A CHASSIS BLOCK ASSY, MECHANICAL
(not including LM MOTOR ASSY)
718 3-703-816-42 SCREW (M1.4x2.5), SPECIAL HEAD
M901 A-7044-007-A DRUM ASSY (DEH-07A-R)
708
707
706
701
703
701
701
715
704
709
710
702
M901
717
701
712
713
705
711
718
715
716
714
not supplied
FP-242
(Refer to page 5-6.)

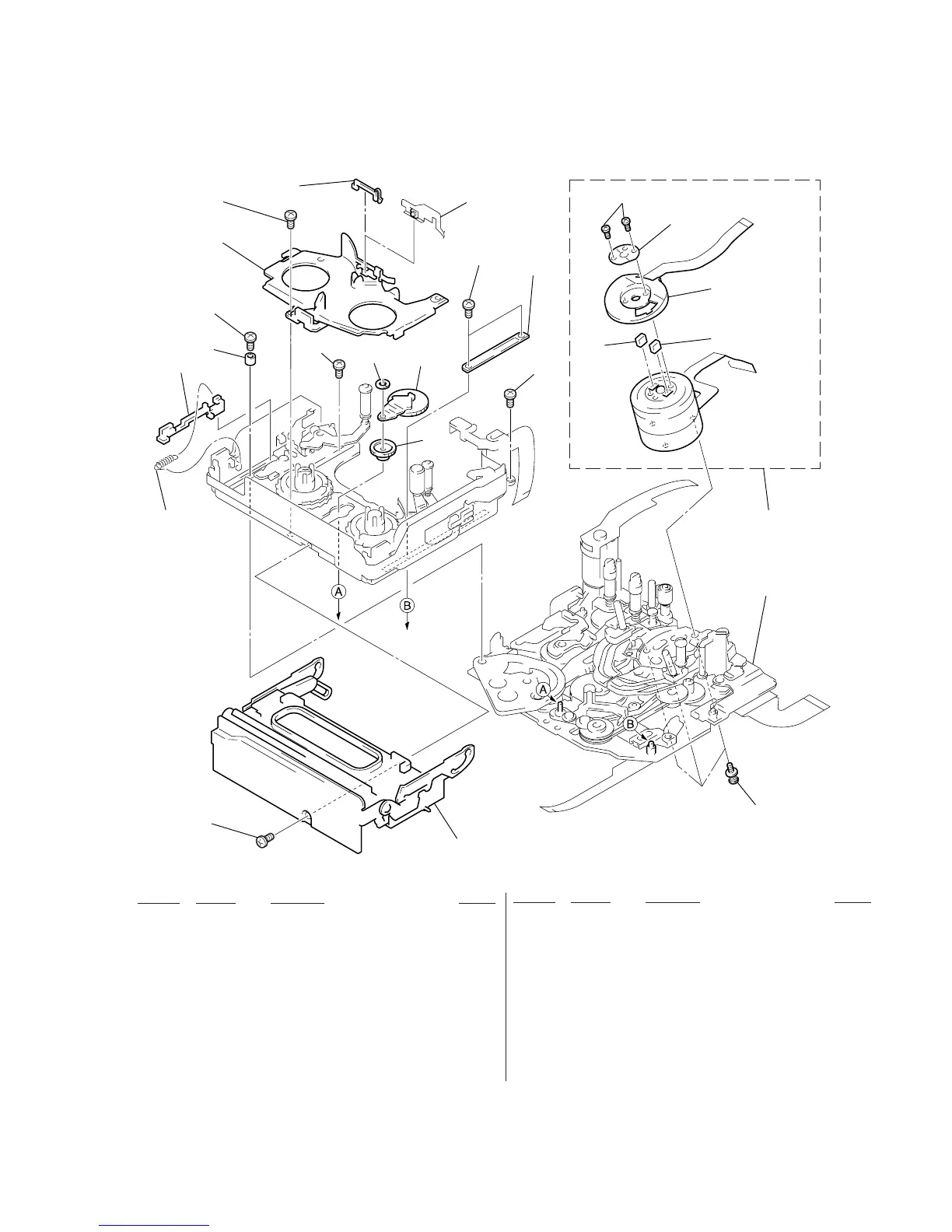

5-1-5. CASSETTE COMPARTMENT AND DRUM ASSEMBLIES
