Chapter 1 Zz
1-4(E) | Chapter 1 Introduction

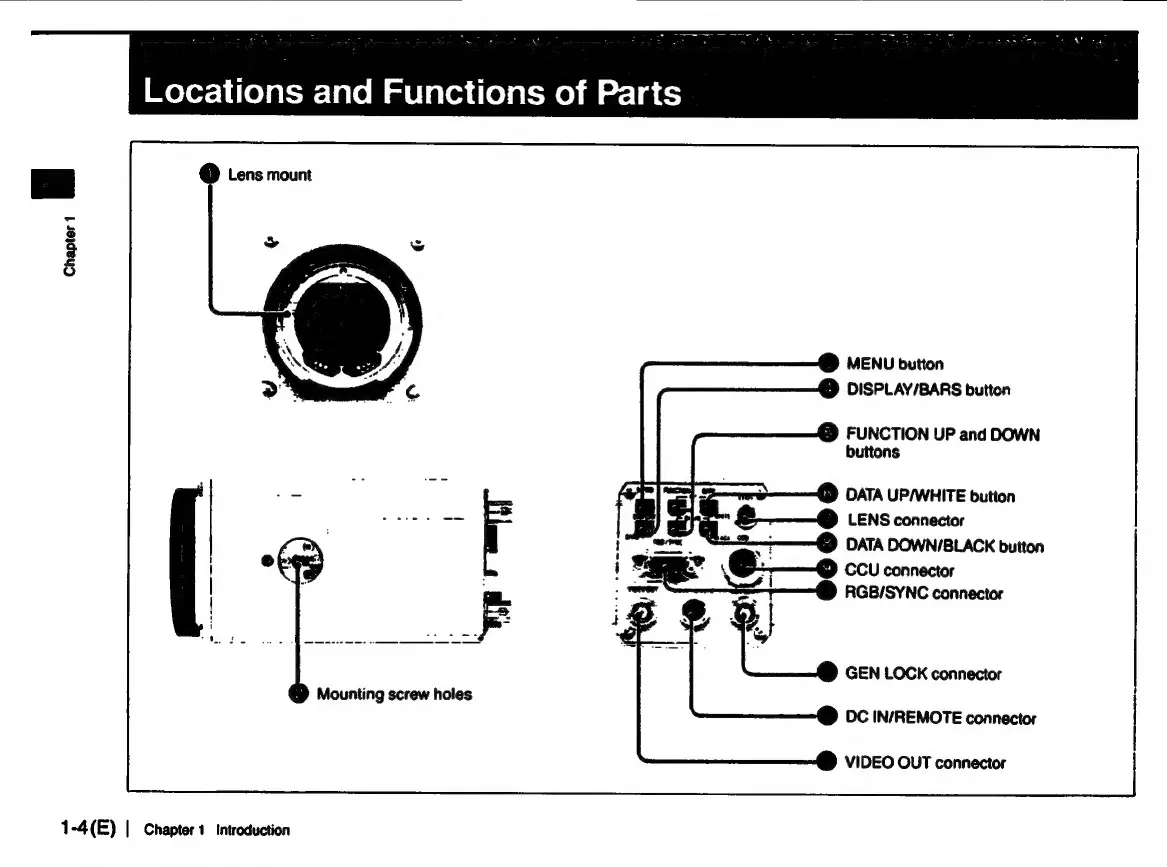

@ Lens mount
MENU button
DISPLAY/BARS button
FUNCTION UP and DOWN
buttons
i DATA UP/WHITE button
" S——@ LENS connector
= ; DATA DOWN/BLACK button
Lt CCU connector
RGB/SYNC connector
GEN LOCK connector
Mounting screw holes
DC IN/REMOTE connector
VIDEO OUT connector
