Chapter 2

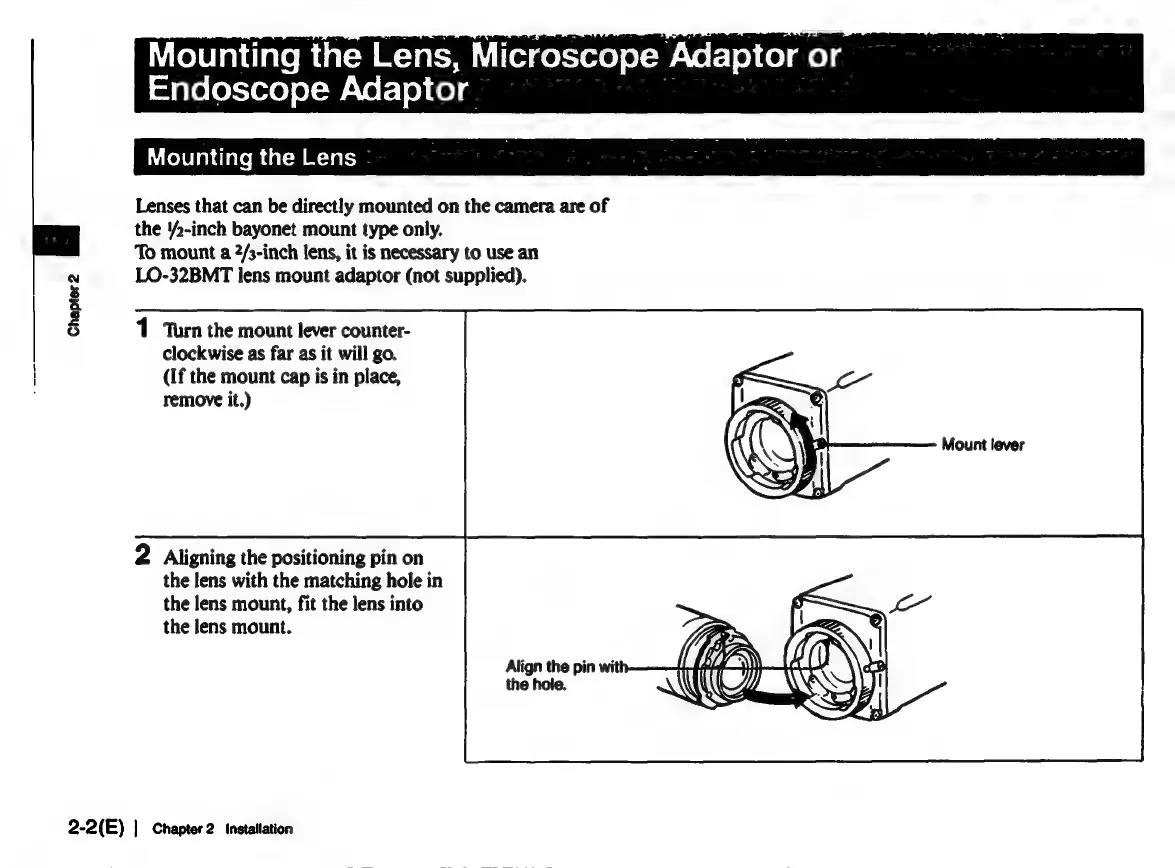

Mounting the Lens, Microscope Adaptor or
et alo fol-vete) ol-wVeol-]e) (o) a
Mounting the Lens
Lenses that can be directly mounted on the camera are of
the 12-inch bayonet mount type only.
To mount a 2/3-inch lens, it is necessary to use an
LO-32BMT lens mount adaptor (not supplied).
Turn the mount lever counter-
clockwise as far as it will go.
(If the mount cap is in place,
remove it.)
Aligning the positioning pin on
the lens with the matching hole in
the lens mount, fit the lens into
the lens mount.
2-2(E) | Chapter 2 installation
