'Ovelahdce) mors l els)!
CCZZ-1E cable extension
adaptor (supplied with
CCTZ-3RGB/CCTZ-3YC)
DXC-930/930P
Epe—ca)
CCTZ-3RGB/
CCTZ-3YC cable
CCQQ-1 cable extension adaptor
(supplied with CCTQ-3RGB)
(max. 300 m)
. CCQ-AM cable
CCTQ-3RGB cable (max. 100 m)
You cannot connect a CCU and an RM-930 to the camera at a time.

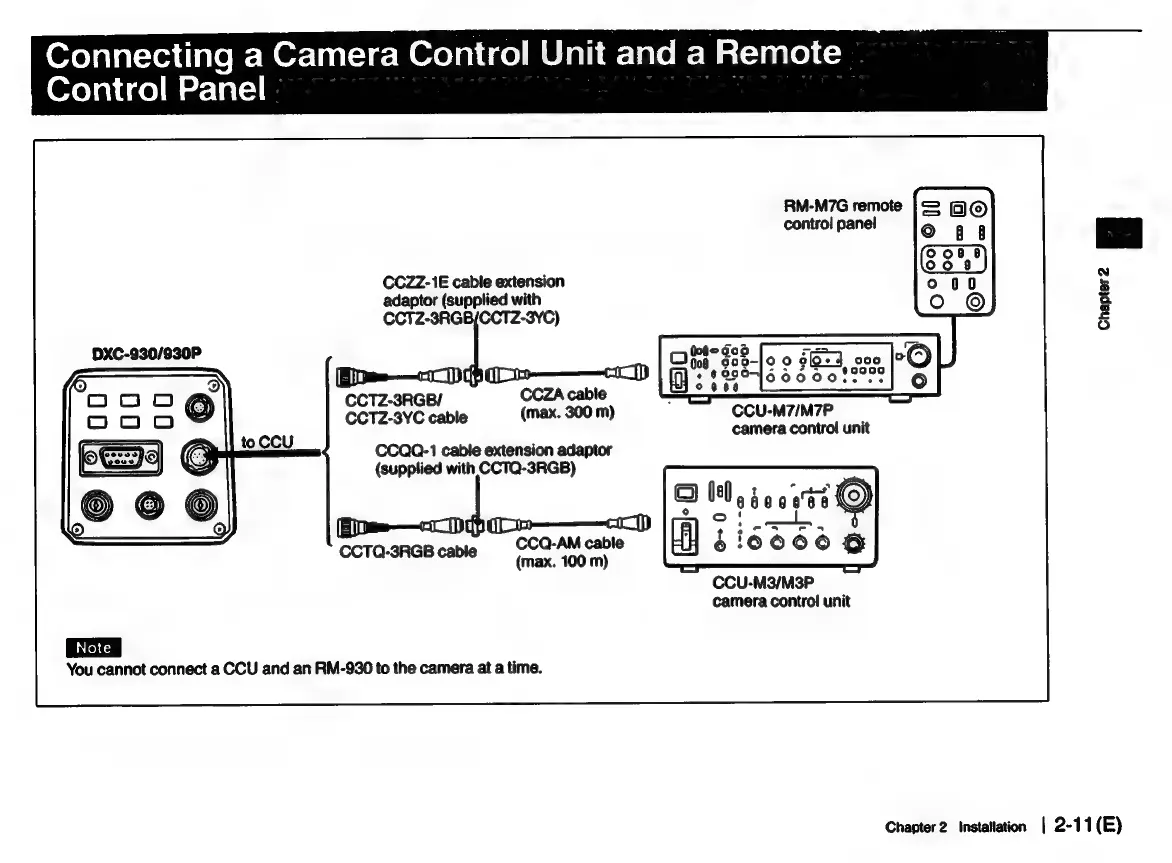

Connecting a Camera Control Unit and a Remote
RM-M7G remote |=
control panel
Chapter 2 ie
CCU-M7/M7P
camera control unit
camera control unit
Chapter 2 installation | 2-11(E)
