Chapter 2 a

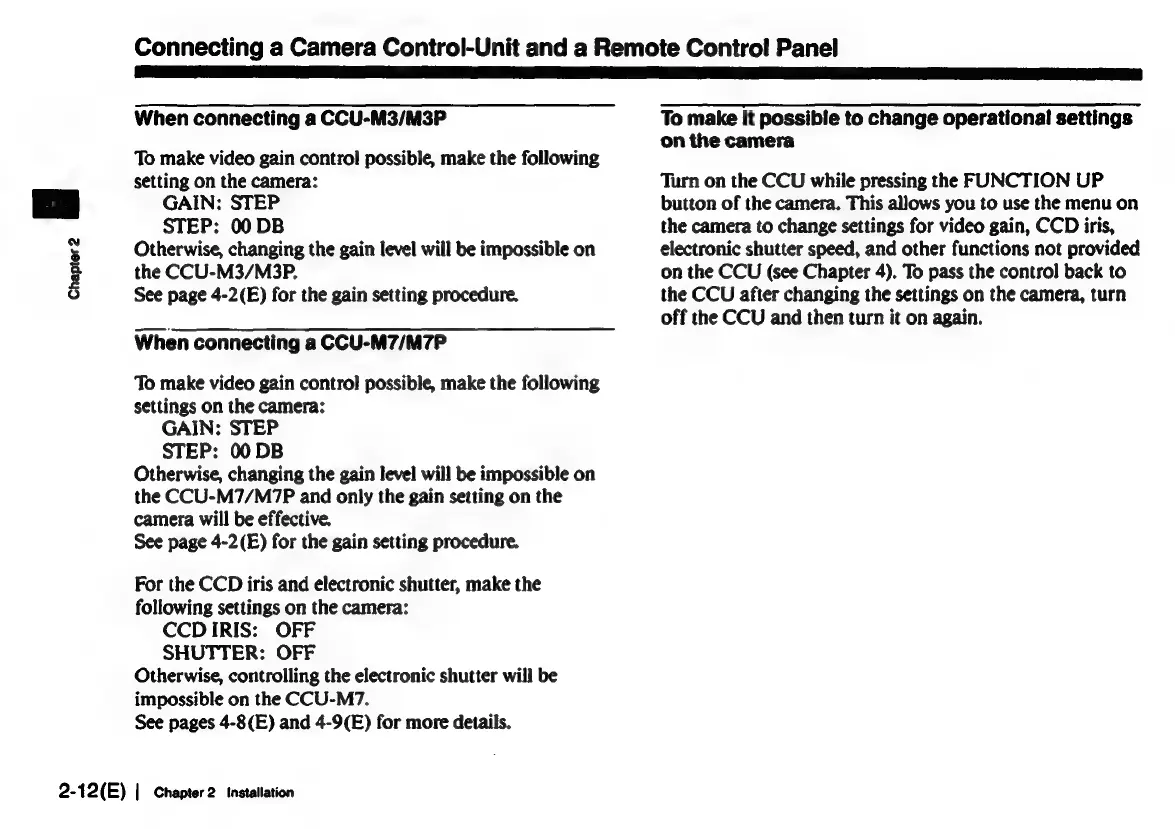

Connecting a Camera Control-Unit and a Remote Control Panel
When connecting a CCU-M3/M3P
To make video gain control possible, make the following
setting on the camera:
GAIN: STEP
STEP: 00 DB
Otherwise, changing the gain level will be impossible on
the CCU-M3/M3P.
See page 4-2(E) for the gain setting procedure.
When connecting a CCU-M7/M7P
To make video gain control possible, make the following
settings on the camera:
GAIN: STEP
STEP: 00 DB
Otherwise, changing the gain level will be impossible on
the CCU-M7/M7P and only the gain setting on the
camera will be effective.
See page 4-2(E) for the gain setting procedure.
For the CCD iris and electronic shutter, make the
following settings on the camera:
CCDIRIS: OFF
SHUTTER: OFF
Otherwise, controlling the electronic shutter will be
impossible on the CCU-M7.
See pages 4-8(E) and 4-9(E) for more details.
2-12(E) | Chapter 2 Installation
To make it possible to change operational settings
on the camera
Turn on the CCU while pressing the FUNCTION UP
button of the camera. This allows you to use the menu on
the camera to change settings for video gain, CCD iris,
electronic shutter speed, and other functions not provided
on the CCU (see Chapter 4). To pass the control back to
the CCU after changing the settings on the camera, turn
off the CCU and then turn it on again.
