Connect the drive as follows.

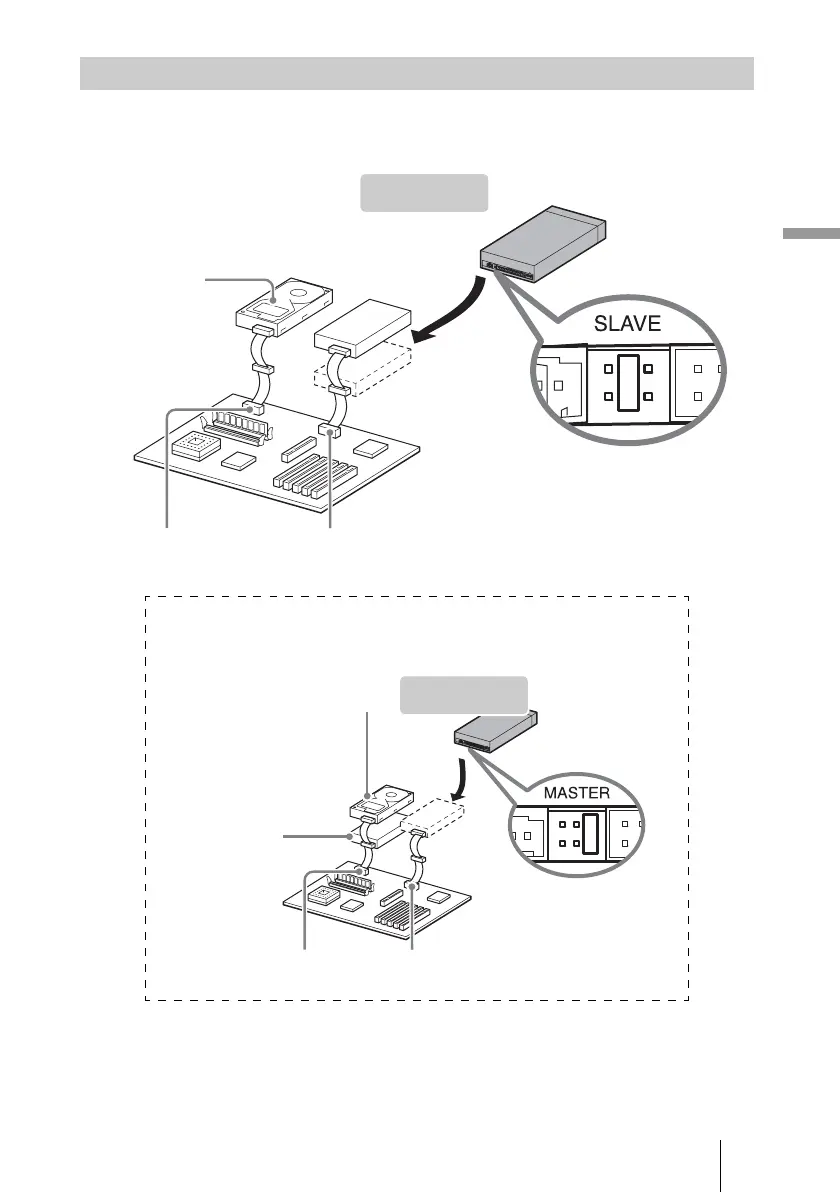

Installing the DVD/CD rewritable drive as a third drive
Secondary
IDE connector
Primary
IDE connector
Place the jumper in
the SLAVE position.
DVD/CD
rewritable drive
1st drive
Hard disk drive (usually)
MASTER
3rd drive
2nd drive
Hard disk drive, or
DVD/CD drive, etc.
MASTER
Secondary
IDE connector
Primary
IDE connector
The following configuration is also possible.
Place the jumper
in the MASTER
position.
DVD/CD
rewritable drive
1st drive
Hard disk drive (usually)
MASTER
3rd drive
2nd drive
Hard disk drive, or
DVD/CD drive, etc.
SLAVE
