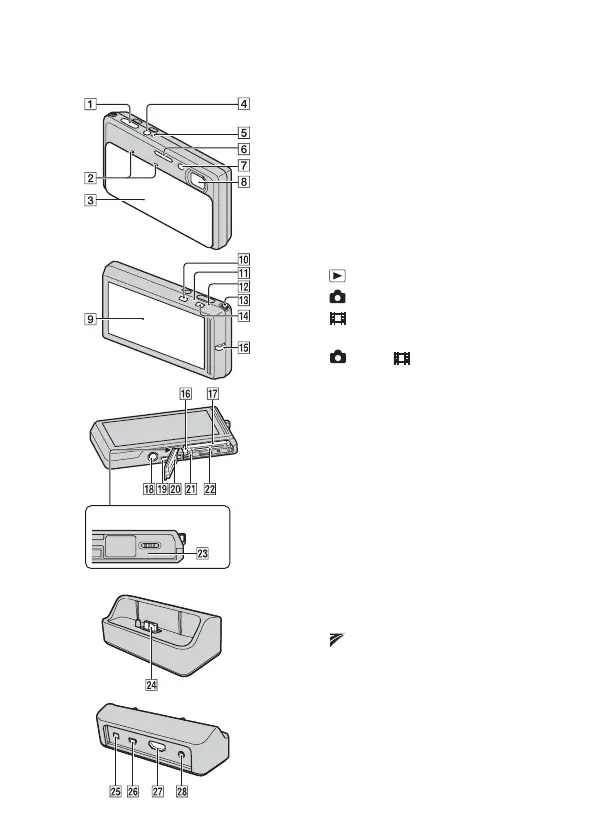

Identifying parts
A Shutter button
B Microphone
C Lens cover
D ON/OFF (Power) button
E Power lamp
F Flash
G Self-timer lamp/Smile Shutter
lamp/AF illuminator
H Lens
I LCD screen/Touch panel
J (Playback) button
K (Still) mode lamp
L (Movie) mode lamp
M Zoom (W/T) lever
N (Still)/ (Movie) mode
button
O Hook for wrist strap
P Battery eject lever
Q Battery insertion slot
R Tripod receptacle
• Use a tripod with a screw less
than 5.5 mm (7/32 inches) long.
Otherwise, you cannot firmly
secure the camera, and damage to
the camera may occur.
S Multi-connector
T Battery/Memory card cover
U Access lamp
V Memory card slot
W (TransferJet™) mark
X Camera connector terminal
Y DC IN jack
Z USB jack
wj HDMI jack
wk A/V OUT (STEREO) jack
Camera
Cover panel
Multi-output stand
