9. System Examples
DXC-990/990P, DXC-390/390P Sales Manual – 31
Note 1)
‘Sync on Green’ function should be equipped with peripherals. Please set ‘SYNC’ on ‘SYSTEM’ sub menu to
‘G’ or ‘RGB’ when using the long term exposure function because it is necessary to output the WEN pulse from
the connector for sync.
Note 2)
The WEN pulse has no capability to connect with the SONY video printers.

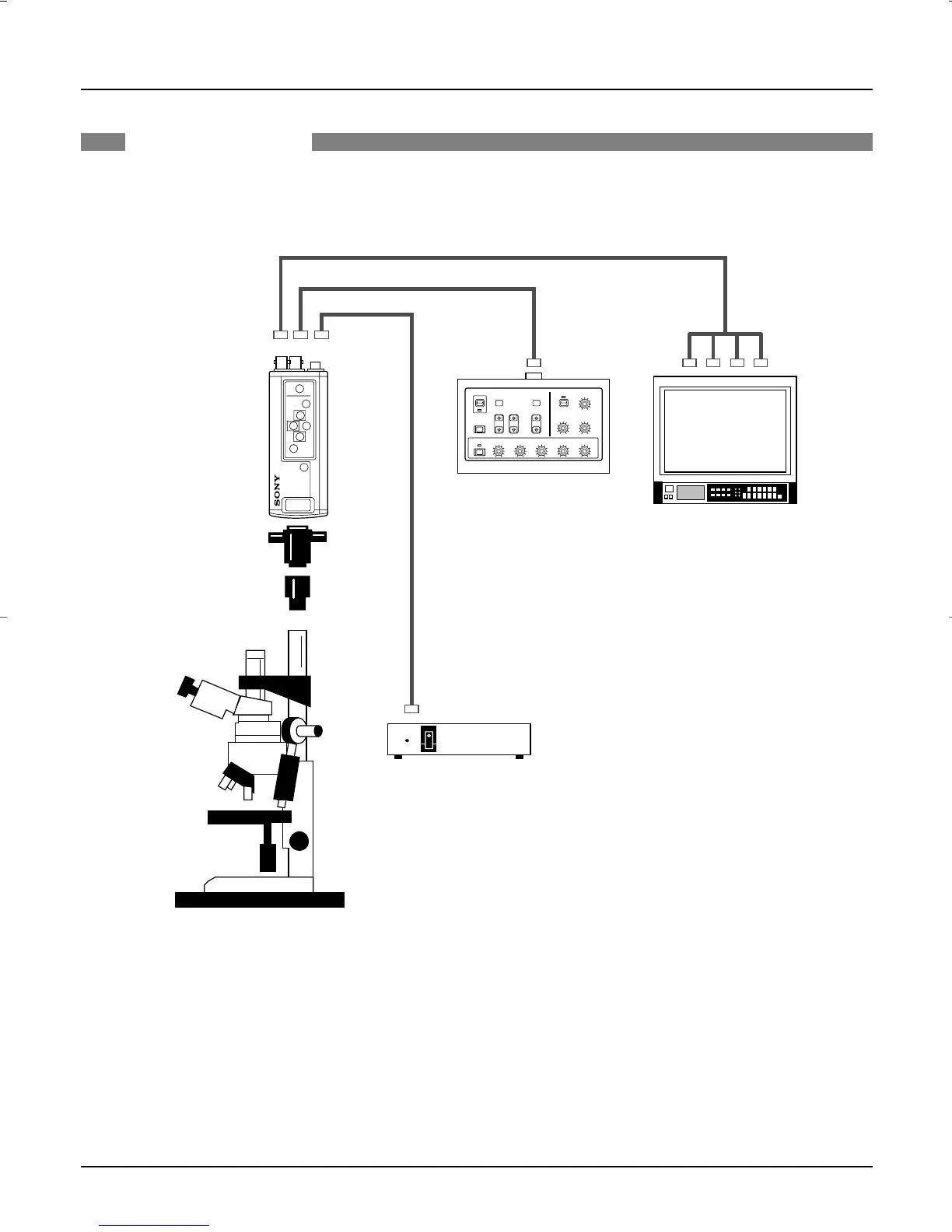

MICROSCOPY
DXC-990/990P
DXC-390/390P
MVA-15
MVA-41A
MVAC-33-O
MVAC-33-N
MVAC-33-SM
Microscope
RM-C950
RGB
CCMC-9DS (4 BNC & S)
CCXC-9DBS (5 BNC)
CCDC-5 (5 m)
CCDC-10 (10 m)
CCDC-25 (25 m)
CCDC-A50 (50 m)
CCDC-A100 (100 m)
CCMC-12P02 (2 m)
CCMC-12P05 (5 m)
CCMC-12P10 (10 m)
CCMC-12P25 (25 m)
8 pin Cable
(Supplied)
CMA-D2/D2CE
CMA-D2MD/D2MDCE
Monitor
