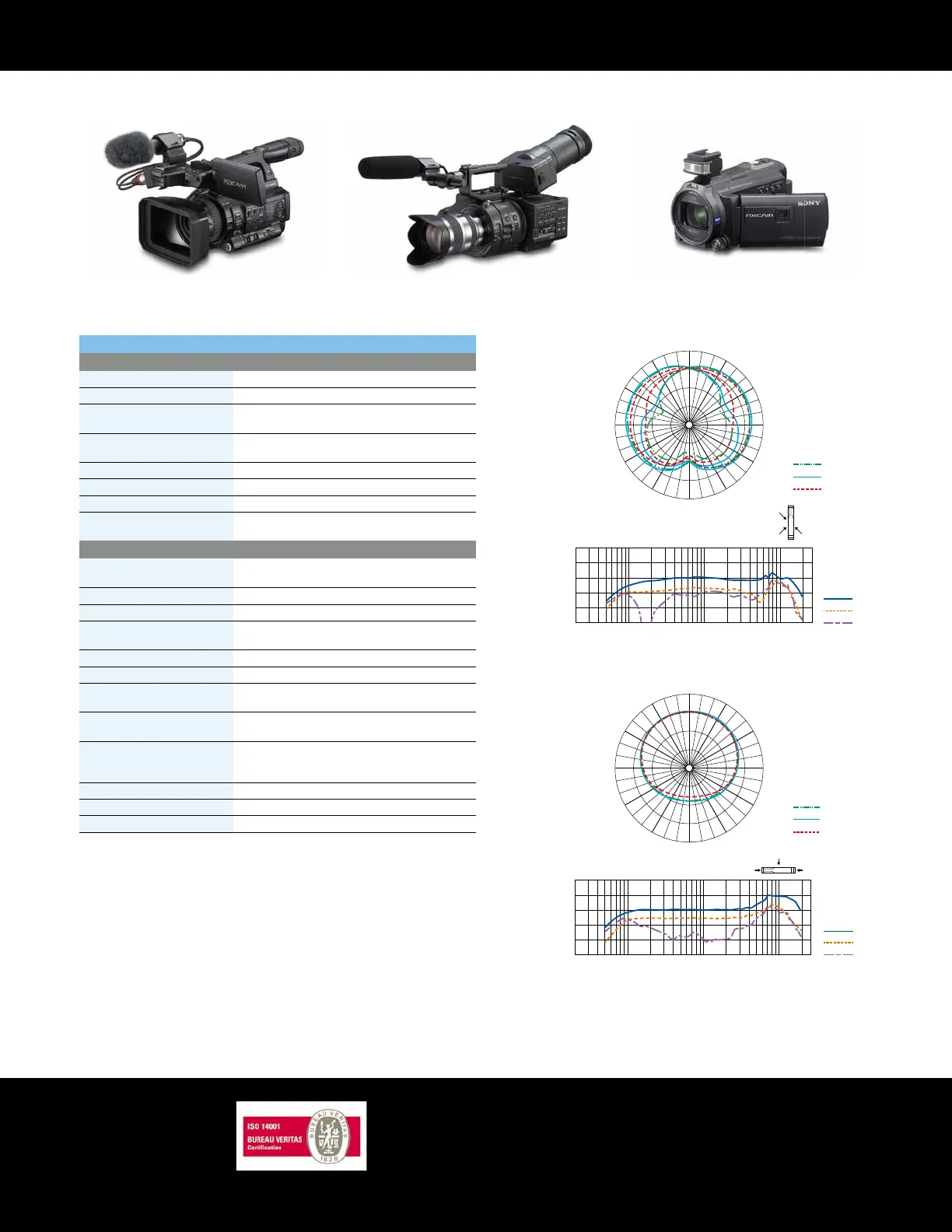

Specifications
Compatible Camcorder Sample
ECM-MS2
General
Type Back electret condenser microphone
Stereo type MS (Mid-Side) stereo microphone
Power supply External power supply 40 V to 52 V
DC (IEC 61938 P48)
Power consumption Stereo: 3 mA or less x 2Ch
Monaural: 3 mA or less
Output connector Cannon XLR-3-12C type x2
Dimensions 31/32 dia. x 5 1/2 in. (24 dia. x 137 mm)
Weight Approx. 5.6 oz. (160 g)
Supplied accessories Wind screen (1), Cable tie (1),
Operating instructions (1), Warranty booklet (1)
Performance
Frequency response Stereo: 80 Hz to 20,000 Hz
Monaural: 70 Hz to 20,000 Hz
Directivity Uni-directional
Output impedance 30 Ω ±20%, balanced
Sensitivity (deviation ±3 dB) Stereo: -32 dB
1)
Monaural: -36 dB
1)
Signal-to-noise ratio 69 dB or more (IEC 179 A-weighted, 1 kHz, 1 Pa)
Inherent noise 25 dB SPL or less
2)
Wind noise 45 dB SPL or less (with wind screen)
65 dB SPL or less (without wind screen)
Induction noise from external
magnetic field
0 dB SPL/1 x 10
-7
T (1 mG) or less
Maximum input sound
pressure level
125 dB SPL or more (input level for 1% waveform
distortion at 1 kHz, converted into equivalent input
sound pressure level)
2)
Dynamic range 100 dB SPL or more
Operating temperature 32 °F to 122 °F (0 °C to 50 °C)
Storage temperature -4 °F to +140 °F (-20 °C to +60 °C)
1) 0 dB SPL=1 V/Pa, 1 kHz
2) 0 dB SPL=2x10
-5
Pa
Design and specifications are subject to change without notice.
0°
90°
180°
-30
-20
-10
0
+10
+20
20
0°
180°
90°
50 100 200 500 1 k 2 k 5 k 10 k 20 k
Frequency (Hz)
Response (dB)
0°
90°
180°
-30
-20
-10
0
+10
+20
20
0°
180°
90°
50 100 200 500 1 k 2 k 5 k 10 k 20 k
Frequency (Hz)
Response (dB)
0°
0 dB
-10
-20
30°
60°
90°
120°
150°
30°
60°
90°
120°
150°
180°
500 Hz
1 kHz
2 kHz
0°
0 dB
-10
-20
30°
60°
90°
120°
150°
30°
60°
90°
120°
150°
180°
500 Hz
1 kHz
2 kHz
Stereo Mode
Monaural Mode
PMW-100 NEX-FS700 HXR-NX30
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
A-1187 (MK10928V1)
Printed in USA (3/12)
The ECM-MS2 are produced at Sony Taiyo,
which has received ISO14001, the Environmental
Management System certification.

Sony ECMMS2 Specifications

General

Type	Digital camcorder microphone
Microphone direction type	Unidirectional
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
