Sony EX480CP - Pin Assignment; CN991 and CN903 Connector Pinouts

61
Specifications

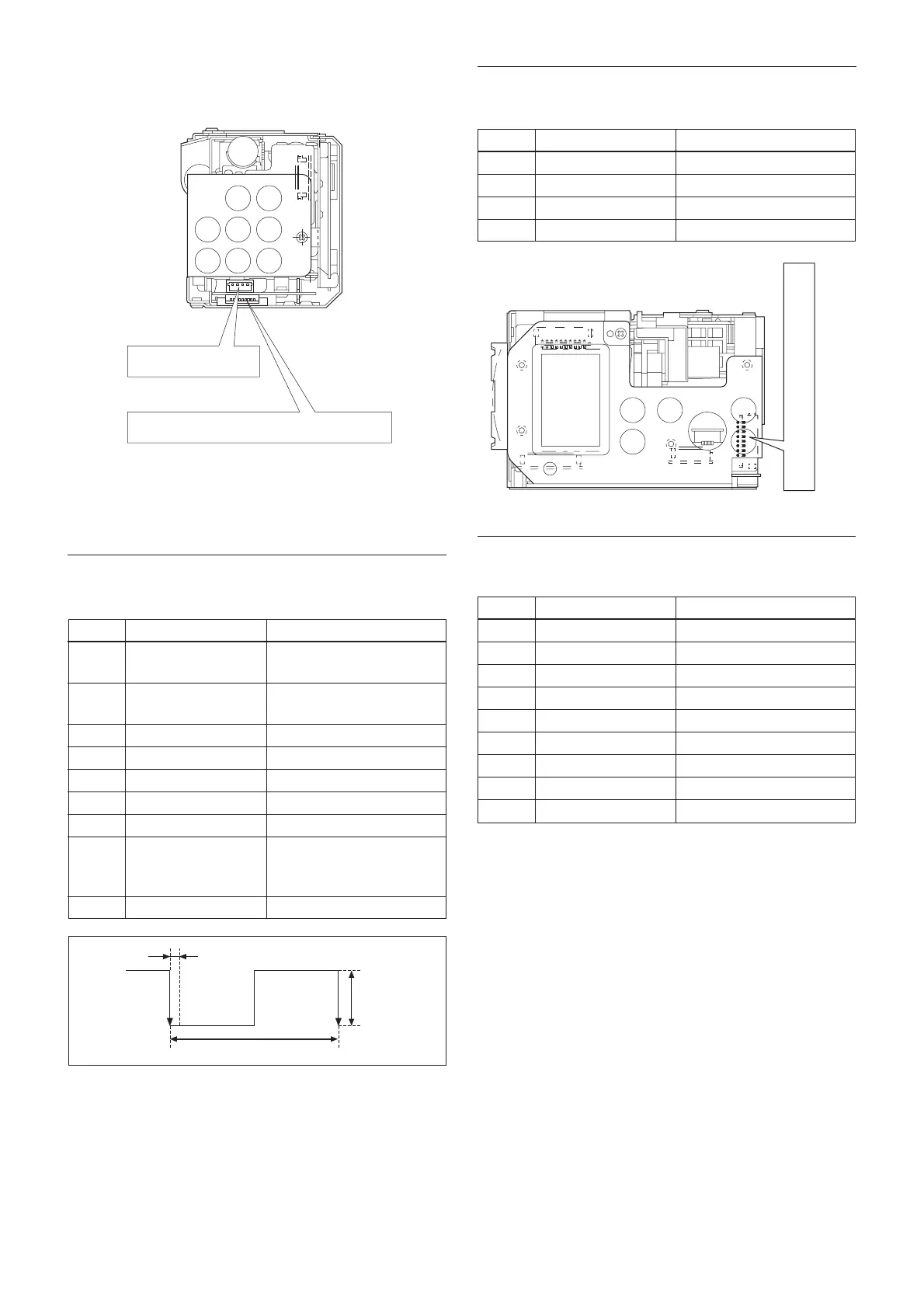

Pin assignment
CN992
KYOCERA ELCO 00 6200 097 032 800
1234
987654321
Pin No. Name Level
1 RxD CMOS 5V (low: max 0.8V,
high: min 2.0V) Read Data
2 TxD CMOS 5V (low: max 0.1V,
high: min 4.4V) Send Data
3 GND (for RxD&TxD)
4 DC IN 9.0V±3V
5 GND (for DC IN)
6 VBS OUT 1.0V±0.2V
7 GND (for VBS OUT)
8V LOCK PULSE External VD-Lock Pulse
(EX.FV: Negative, 3Vp-p
50% duty)
9 GND (VL PULSE)
Pin No. Name Level
1 Y_Out
2 GND (for Y signal)
3 C_Out
4 GND (for C signal)
CN991
CN992
1
2
3
4
5
6
7
8
9
CN991
JST S4B-ZR-SM3A-TF
3V ±0.5V
60Hz ±1Hz
min. 1 µs (ideal value 50% Duty)
CN903
JST S9B-ZR-SM3A-TF
Pin No. Name Level
1 DC IN 9.0 V±3 V
2 GND (for DC IN)
3NC
4 VBS OUT 1.0 V±0.2 V
5 GND (for VBS OUT)
6 Y_OUT 1.0 V±0.2 V
7 GND (for Y signal)
8 C_Out
9 GND (for C signal)
Remove the cover to use the CN903.
